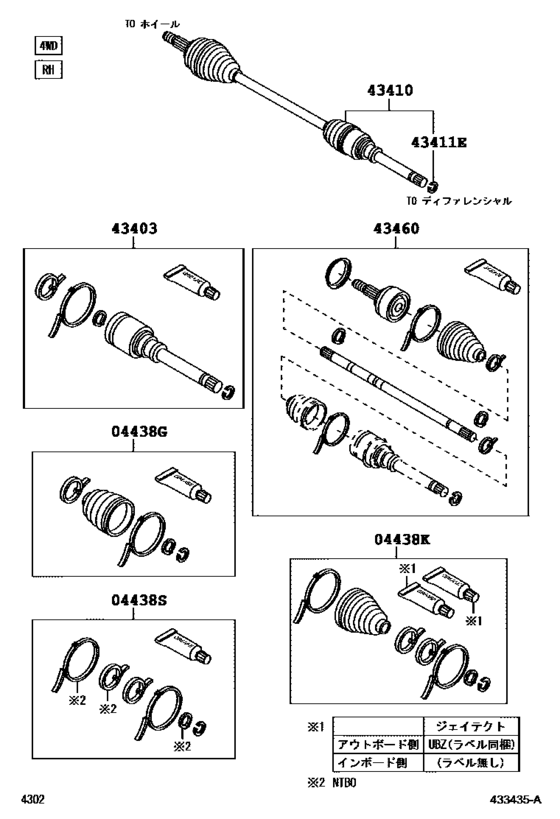

Front Drive Shaft ([07.2015 - ] 4WD RH (1507- )LA710) Diagram Toyota PIXIS
- Year
- 2015 - 2016
- Sales region
- Japan
- Frame
- LA710A
- grade
- X
- ENGINE
- KFVET
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- To
- 05.2016
- Drive Train
- 4WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- TBO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438G
|
04438G
04437-B2030 Boot Kit, Front Drive Shaft Inboard Joint, Rh[07.2015 - 05.2016] LA710..TBO ＮＴＮ |
04437-B2030 |
US $36.84 |
||
|
04438K
|
04438K
04425-B2220 Boot Kit, Front Drive Shaft Outboard Joint, Rh[07.2015 - 05.2016] LA700,710..TBO |
04425-B2220 |
US $50.23 |
||
|
04438S
|
04438S
04435-B2020 Clamp Kit, Front Drive Shaft, Rh[07.2015 - 05.2016] LA700,710..TBO ＮＴＮ |
04435-B2020 |
US $21.26 |
||
|
43403
|
43403
43408-B9360 Joint Set, Front Axle Inboard, Rh[07.2015 - 05.2016] LA710..TBO ＮＴＮ |
43408-B9360 |
US $329.06 |
||
|
43410
|
43410
43410-B2450 Shaft Assy, Front Drive, Rh[07.2015 - 05.2016] LA710..TBO |
43410-B2450 |
US $653.74 |
||
|
43411E
|
43411E
90045-20298 Ring, Hole Snap (For Front Drive Inboard Joint)[07.2015 - 05.2016] LA700,710..TBO ＮＴＮ |
90045-20298 |
from US $0.78 |
||
|
43460
|
43460
43411-B9490 Shaft Assy, Front Drive Outboard Joint, Rh[07.2015 - 05.2016] LA710..TBO |
43411-B9490 |
US $381.47 |
