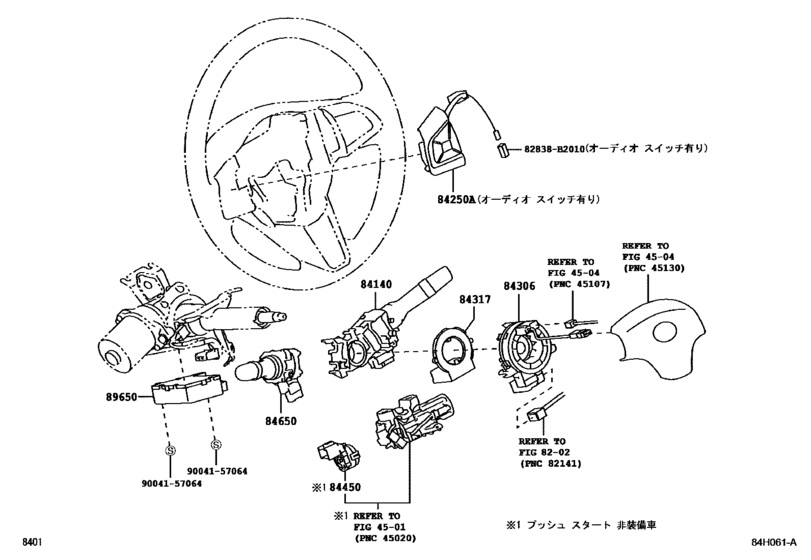

Switch & Relay & Computer ([07.2015 - 05.2016] ｽﾃｱﾘﾝｸﾞ (1507-1605)) Diagram Toyota PIXIS
- Year
- 2015 - 2016
- Sales region
- Japan
- Frame
- LA710A
- grade
- X
- ENGINE
- KFVET
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- To
- 05.2016
- Drive Train
- 4WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-B2130 Switch Assy, Headlamp Dimmer[07.2015 - 05.2016] LA700,710..TBO; LA700,710..L フロント フォグ＆ドライビング ランプ 有り（ＨＩ） |
84140-B2130 |
US $112.11 |
||
|
84250A
|
84250A
84250-B2020-B1 Switch Assy, Steering Pad[07.2015 - 05.2016] LA700,710 ジュンセイナビソウチャクヨウ アップグレードパック,DK.GRAY,TRIM1#,タイプ Ａ |
84250-B2020-B1 |
US $87.36 |
||
| replacement | |||||
|
84250A
|
84250A
84250-B2021-B1 Switch Assy, Steering Pad[07.2015 - 05.2016] LA700,710 ジュンセイナビソウチャクヨウ アップグレードパック,DK.GRAY,TRIM1#,タイプ Ａ |
84250-B2021-B1 |
US $87.36 |
||
|
84306
|
84306
84306-B2080 Cable Sub-Assy, Spiral[07.2015 - 05.2016] LA700,710 |
84306-B2080 |
US $209.60 |
||
|
84306
|
84306
84306-B2090 Cable Sub-Assy, Spiral[07.2015 - 05.2016] LA700,710 ジュンセイナビソウチャクヨウ アップグレードパック |
84306-B2090 |
US $195.10 |
||
|
84317
|
84317
84317-B1020 Sensor, Steering PositionSTEERING POSITION [07.2015 - 05.2016] LA700,710 |
84317-B1020 |
US $192.19 |
||
|
84650
|
84650
84652-B2120 Switch Assy, Windshield Wiper[07.2015 - 05.2016] LA700,710 |
84652-B2120 |
US $93.18 |
||
|
89650
|
89650
89650-B2370 Computer Assy, Power Steering[07.2015 - 05.2016] LA700,710 |
89650-B2370 |
US $406.22 |
||
| replacement | |||||
|
89650
|
89650
89650-B2440 Computer Assy, Power Steering[07.2015 - 05.2016] LA700,710 |
89650-B2440 |
US $406.22 |
||
|
82838B2010
|
82838B2010
82838-B2010 New Genuine Part |
82838-B2010 |
US $1.75 |
||
|
9004157064
|
9004157064
90041-57064 New Genuine Part |
90041-57064 |
US $2.01 |
||
