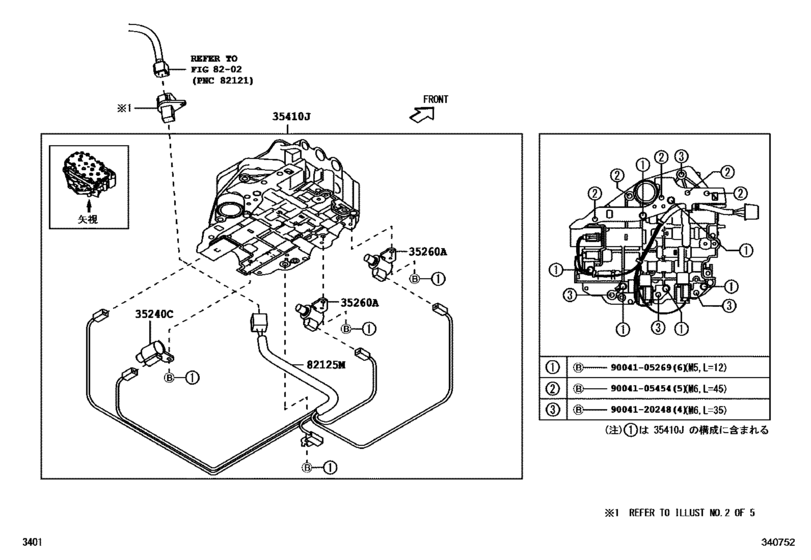

Transaxle Assy(Cvt) ([07.2015 - ] (1507- )) Diagram Toyota PIXIS
- Year
- 2015 - 2016
- Sales region
- Japan
- Frame
- LA710A
- grade
- X
- ENGINE
- KFVET
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- To
- 05.2016
- Drive Train
- 4WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- TBO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35240C
|
35240C
35240-B2020 Solenoid Assy, Transmission 3Way, No.1[07.2015 - 05.2016] LA700,710 |
35240-B2020 |
US $93.18 |
||
|
35260A
|
35260A
35260-B2010 Solenoid Assy, Transmission 3Way, No.4[07.2015 - 05.2016] LA700,710 |
35260-B2010 |
US $93.18 |
||
|
35410J
|
35410J
35410-B2130 Body Assy, Transmission Valve[07.2015 - 05.2016] LA700,710..TBO |
35410-B2130 |
US $1,196.24 |
||
|
82125M
|
82125M
82125-B2060 Wire, Transmission[07.2015 - 05.2016] LA700,710 |
82125-B2060 |
US $27.66 |
||
|
9004105269
|
9004105269
90041-05269 New Genuine Part |
90041-05269 |
US $1.60 |
||
|
9004105454
|
9004105454
90041-05454 New Genuine Part |
90041-05454 |
US $2.62 |
||
|
9004120248
|
9004120248
90041-20248 New Genuine Part |
90041-20248 |
US $2.33 |
