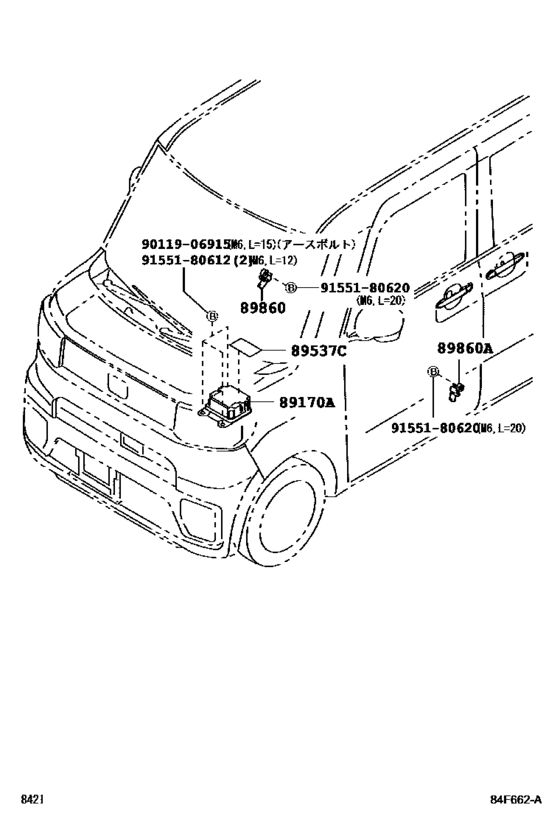

Air Bag ([07.2015 - 05.2016] (1507-1605)) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- LA710A
- grade
- L
- ENGINE
- KFVE
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- Drive Train
- 4WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- NTBO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89170A
|
89170A
89170-B2C60 Computer Assy, Air Bag[07.2015 - 05.2016] LA700,710 |
89170-B2C60 |
US $544.54 |
||
|
89170A
|
89170A
89170-B2D30 Computer Assy, Air Bag[05.2016 -] LA700,710 |
89170-B2D30 |
US $544.54 |
||
|
89537C
|
89537C
19114-B2050 Cover, Computer[07.2015 - 05.2016] LA700,710 |
19114-B2050 |
US $1.75 |
||
|
89860
|
89860
89860-B2180 Sensor Assy, Side Air Bag, Rh[07.2015 - 05.2016] LA700,710 |
89860-B2180 |
US $116.48 |
||
|
89860A
|
89860A
89860-B2180 Sensor Assy, Side Air Bag, Rh[07.2015 - 05.2016] LA700,710 |
89860-B2180 |
US $116.48 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.61 |
||
|
9155180612
|
9155180612
91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector) |
91551-80612 |
from US $0.59 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.61 |
