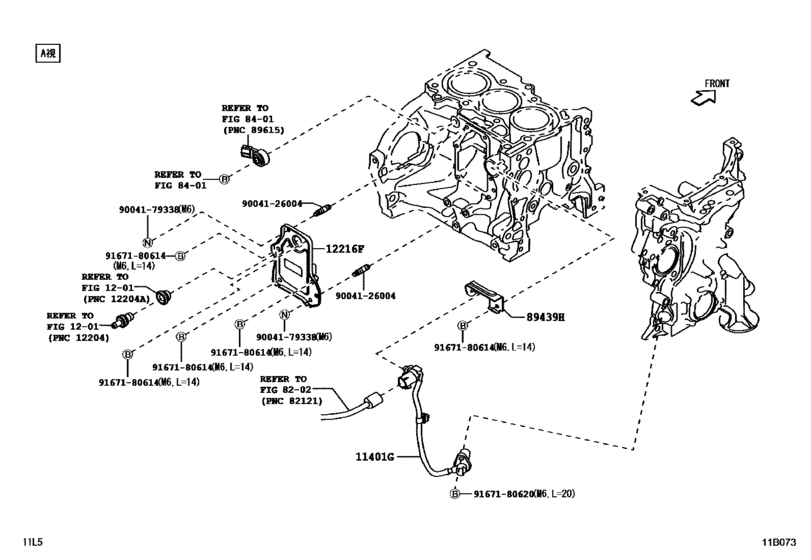

Cylinder Block ([07.2015 - ] (1507- )) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- LA710A
- grade
- L
- ENGINE
- KFVE
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- Drive Train
- 4WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- NTBO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401G
|
11401G
19311-B2030 Sensor, Crank Position[07.2015 - 05.2016] KFV#..LA700,710 |
19311-B2030 |
US $51.45 |
||
|
12216F
|
12216F
12216-B2021 Plate, Ventilation Baffle[07.2015 - 05.2016] KFV#..LA700,710 |
12216-B2021 |
US $18.35 |
||
|
89439H
|
89439H
89439-B2071 Bracket, Sensor[07.2015 - 05.2016] LA700,710 |
89439-B2071 |
US $5.68 |
||
|
9004126004
|
9004126004
90041-26004 Bolt, Stud(For Oil Pan Baffle Plate) |
90041-26004 |
US $1.60 |
||
|
9004179338
|
9004179338
90041-79338 New Genuine Part |
90041-79338 |
US $1.65 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.61 |
||
|
9167180620
|
9167180620
91671-80620 New Genuine Part |
91671-80620 |
US $0.69 |
