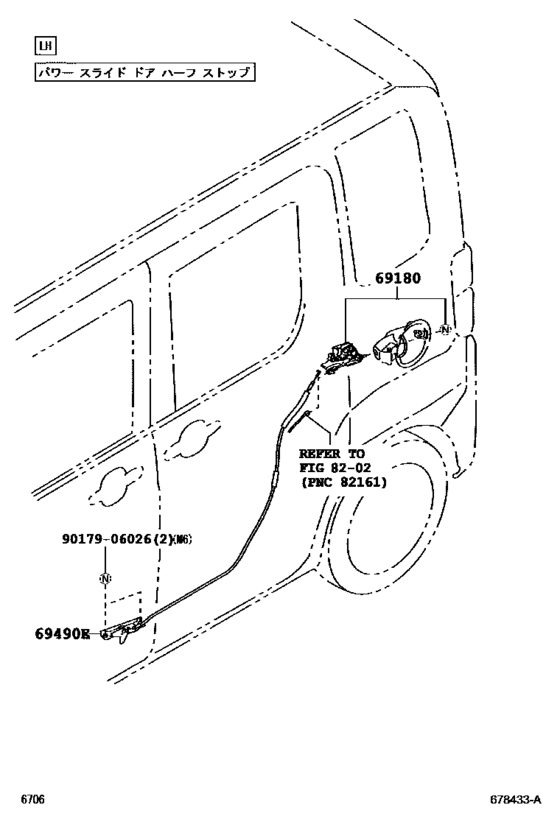

Rear Door Lock & Handle ([07.2015 - ] (1507- )) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- LA710A
- grade
- L
- ENGINE
- KFVE
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- Drive Train
- 4WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- NTBO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69180
|
69180
69180-B2050 Control Assy, Slide Door Half Open Stopper[07.2015 - 05.2016] LA700,710..G,L,X |
69180-B2050 |
US $39.75 |
||
|
69490E
|
69490E
69490-B2030 Stopper Assy, Slide Door Half Open[07.2015 - 08.2015] LA700,710 |
69490-B2030 |
US $40.62 |
||
| replacement | |||||
|
69490E
|
69490E
69490-B2031 Stopper Assy, Slide Door Half Open[07.2015 - 08.2015] LA700,710 |
69490-B2031 |
US $36.84 |
||
|
69490E
|
69490E
69490-B2031 Stopper Assy, Slide Door Half Open[09.2015 - 05.2016] LA700,710 |
69490-B2031 |
US $36.84 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
