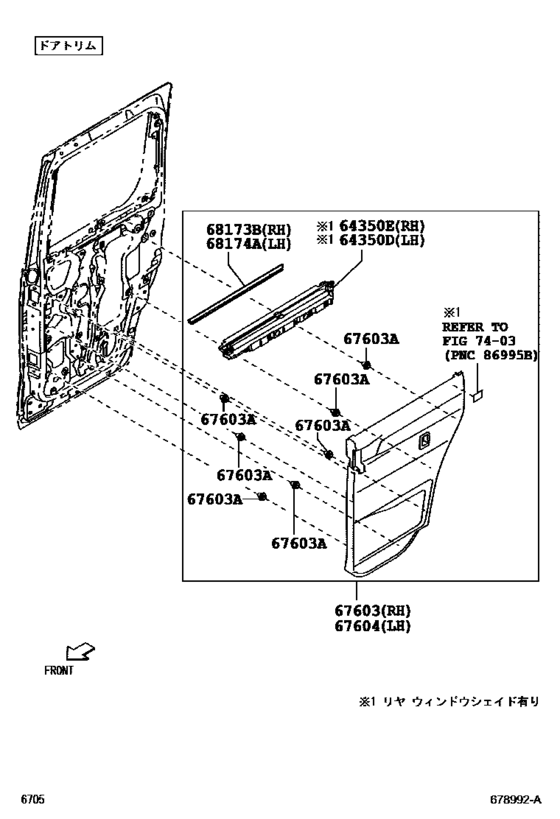

Rear Door Panel & Glass ([07.2015 - ] ﾄﾞｱﾄﾘﾑ (1507- )) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- LA710A
- grade
- L
- ENGINE
- KFVE
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- Drive Train
- 4WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- NTBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64350D
|
64350D
64350-B2040-B0 Shade Assy, Rear Door Trim Lh[07.2015 - 05.2016] LA700,710..TBO DK.GRAY,TRIM1#; LA700,710..L ドア トリム−ＳＴＤ（＋ＲＲサンシェード）,DK.GRAY,TRIM1# |
64350-B2040-B0 |
US $126.67 |
||
|
64350D
|
64350D
64350-B2041-B0 Shade Assy, Rear Door Trim Lh[07.2016 -] LA700,710..G,L DK.GRAY,TRIM1# |
64350-B2041-B0 |
US $126.67 |
||
|
64350E
|
64350E
64350-B2030-B0 Shade Assy, Rear Door Trim Rh[07.2015 - 05.2016] LA700,710..TBO DK.GRAY,TRIM1#; LA700,710..L ドア トリム−ＳＴＤ（＋ＲＲサンシェード）,DK.GRAY,TRIM1# |
64350-B2030-B0 |
US $126.67 |
||
| replacement | |||||
|
64350E
|
64350E
64350-B2031-B0 Shade Assy, Rear Door Trim Rh[07.2015 - 05.2016] LA700,710..TBO DK.GRAY,TRIM1#; LA700,710..L ドア トリム−ＳＴＤ（＋ＲＲサンシェード）,DK.GRAY,TRIM1# |
64350-B2031-B0 |
US $126.67 |
||
|
64350E
|
64350E
64350-B2031-B0 Shade Assy, Rear Door Trim Rh[07.2016 -] LA700,710..G,L DK.GRAY,TRIM1# |
64350-B2031-B0 |
US $126.67 |
||
|
67603
|
67603
67630-B2560-B0 Board Sub-Assy, Rear Door Trim, Rh[07.2015 - 05.2016] LA700,710..TBO DK.GRAY,TRIM1#; LA700,710..L ドア トリム−ＳＴＤ（＋ＲＲサンシェード）,DK.GRAY,TRIM1# |
67630-B2560-B0 |
US $269.36 |
||
|
67603
|
67603
67630-B2570-B0 Board Sub-Assy, Rear Door Trim, Rh[07.2015 - 05.2016] LA700,710..NTBO DK.GRAY,TRIM1# |
67630-B2570-B0 |
US $148.51 |
||
|
67603A
|
67603A
67771-B2080 Retainer(For Front Door Trim Board)[07.2015 - 05.2016] LA700,710 |
67771-B2080 |
US $1.65 |
||
|
67604
|
67604
67640-B2580-B0 Board Sub-Assy, Rear Door Trim, Lh[07.2015 - 05.2016] LA700,710..TBO DK.GRAY,TRIM1#; LA700,710..L ドア トリム−ＳＴＤ（＋ＲＲサンシェード）,DK.GRAY,TRIM1# |
67640-B2580-B0 |
US $269.36 |
||
|
67604
|
67604
67640-B2590-B0 Board Sub-Assy, Rear Door Trim, Lh[07.2015 - 05.2016] LA700,710..NTBO DK.GRAY,TRIM1# |
67640-B2590-B0 |
US $148.51 |
||
|
68173B
|
68173B
68173-B2180 Weatherstrip, Rear Door Glass, Inner Rh[07.2015 - 05.2016] LA700,710 |
68173-B2180 |
US $22.13 |
||
|
68174A
|
68174A
68174-B2180 Weatherstrip, Rear Door Glass, Inner Lh[07.2015 - 05.2016] LA700,710 |
68174-B2180 |
US $22.13 |
||
