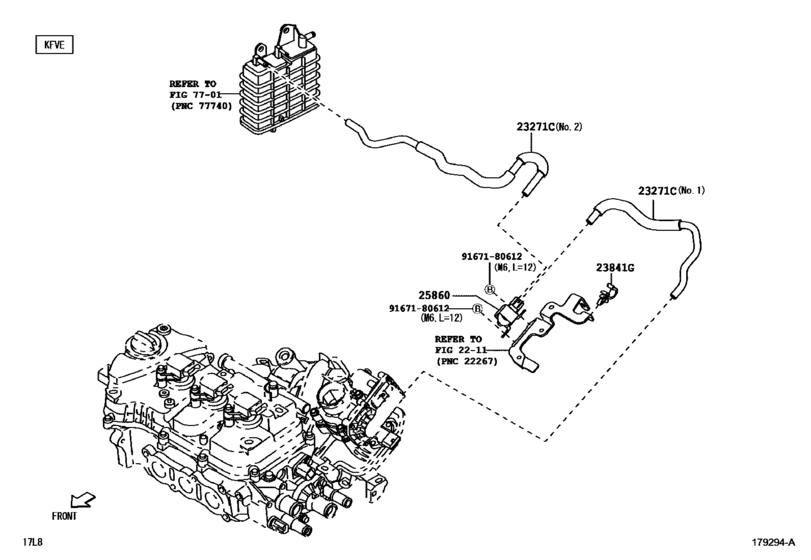

Vacuum Piping ([05.2016 - ] (1605- )KFVE) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- LA710A
- grade
- L
- ENGINE
- KFVE
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- Drive Train
- 4WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- NTBO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23271C
|
23271C
77754-B2140 Hose, Fuel[05.2016 -] KFV#..LA700,710 ＮＯ．１ |
77754-B2140 |
US $13.83 |
||
|
23271C
|
23271C
77795-B2100 Hose, Fuel[07.2015 - 05.2016] KFV#..LA700,710 |
77795-B2100 |
US $19.80 |
||
|
23271C
|
23271C
77795-B2110 Hose, Fuel[05.2016 -] KFV#..LA700,710 ＮＯ．２ |
77795-B2110 |
US $19.80 |
||
|
23841G
|
23841G
90044-64899 Clamp, Fuel Hose[05.2016 -] KFV#..LA700,710 |
90044-64899 |
US $1.60 |
||
|
25860
|
25860
89470-B1020 Valve Assy, Vacuum Switching, No.1[07.2015 - 05.2016] KFV#..LA700,710 |
89470-B1020 |
US $75.71 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.65 |
