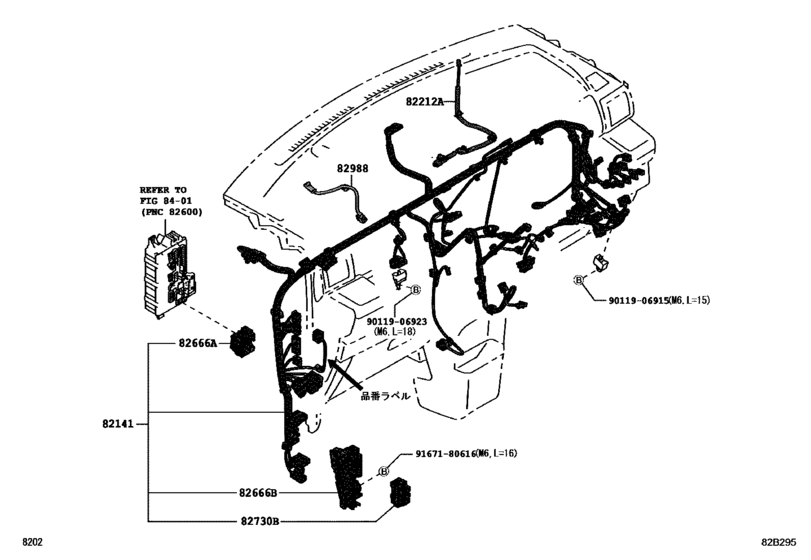

Wiring & Clamp ([07.2015 - ] ｲﾝﾊﾟﾈ (1507- )) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- LA710A
- grade
- L
- ENGINE
- KFVE
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- Drive Train
- 4WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- NTBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-BAJ20 Wire, Instrument Panel[07.2015 - 05.2016] LA700,710..L,X スマートアシスト |
82141-BAJ20 |
US $513.97 |
||
|
82141
|
82141
82141-BAJ30 Wire, Instrument Panel[07.2015 - 05.2016] LA700,710..G スマートアシスト; LA700,710..L,X スマートアシスト＆イージークローザー＋Ｒ／Ｌ電動スライド 有り |
82141-BAJ30 |
US $591.14 |
||
|
82141
|
82141
82141-BAK10 Wire, Instrument Panel[07.2015 - 05.2016] LA700,710..L,X |
82141-BAK10 |
US $513.97 |
||
|
82141
|
82141
82141-BAK20 Wire, Instrument Panel[07.2015 - 05.2016] LA700,710..G; LA700,710..L,X イージークローザー＋Ｒ／Ｌ電動スライド 有り |
82141-BAK20 |
US $513.97 |
||
|
82141
|
82141
82141-BAM30 Wire, Instrument Panel[05.2016 -] LA700,710..G,L |
82141-BAM30 |
US $513.97 |
||
|
82212A
|
82212A
88605-B2250 Harness, Air Conditioner[07.2015 - 05.2016] LA700,710..G,L,X |
88605-B2250 |
US $11.94 |
||
|
82212A
|
82212A
88605-B2310 Harness, Air Conditioner[05.2016 -] LA700,710..G,L |
88605-B2310 |
US $19.80 |
||
|
82666A
|
82666A
82666-B2180 Holder, Connector No.2[07.2015 - 05.2016] LA700,710 |
82666-B2180 |
US $6.26 |
||
|
82666B
|
82666B
82666-B2190 Holder, Connector No.3[07.2015 - 05.2016] LA700,710 |
82666-B2190 |
US $10.34 |
||
|
82730B
|
82730B
82730-B2170 Block Assy, Passenger Side Junction[07.2015 - 05.2016] LA700,710 |
82730-B2170 |
US $101.64 |
||
|
82988
|
82988
89171-B2070 Wire, Air Bag Repair[07.2015 - 05.2016] LA700,710 |
89171-B2070 |
US $39.75 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.61 |
||
|
9011906923
|
9011906923
90119-06923 BOLT WWASHER |
90119-06923 |
US $0.69 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.57 |
