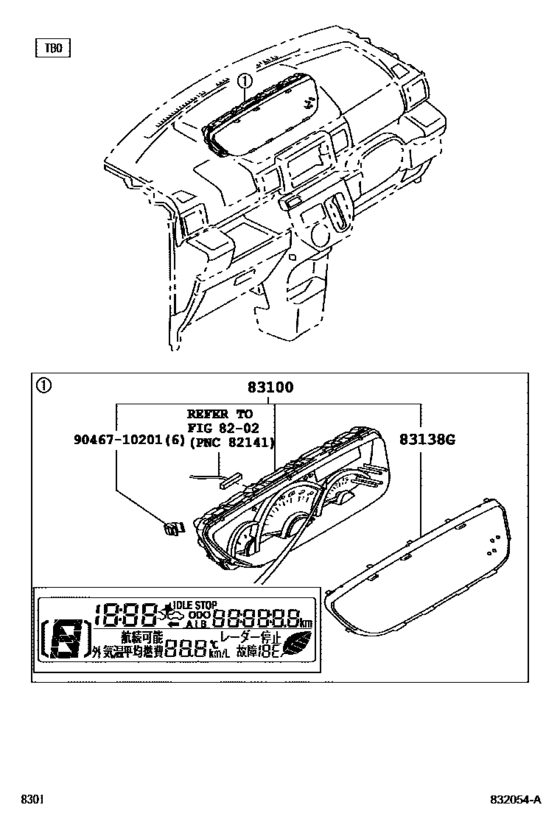

Meter ([07.2015 - ] (1507- )TBO) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- LA710A
- grade
- G
- ENGINE
- KFVET
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- Drive Train
- 4WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- TBO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-BA460 Meter Assy, Combination[07.2015 - 05.2016] LA700,710..G スマートアシスト |
83800-BA460 |
US $720.72 |
||
|
83100
|
83100
83800-BA600 Meter Assy, Combination[07.2015 - 05.2016] LA700,710..G |
83800-BA600 |
US $720.72 |
||
|
83100
|
83100
83800-BA790 Meter Assy, Combination[05.2016 -] LA700,710..TBO |
83800-BA790 |
US $720.72 |
||
|
83100
|
83100
83800-BA800 Meter Assy, Combination[05.2016 -] LA700,710..TBO レジャー エディション |
83800-BA800 |
US $720.72 |
||
|
83138G
|
83138G
83852-B2110 Glass, Combination Meter[07.2015 - 05.2016] LA700,710..TBO |
83852-B2110 |
US $19.66 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.87 |
