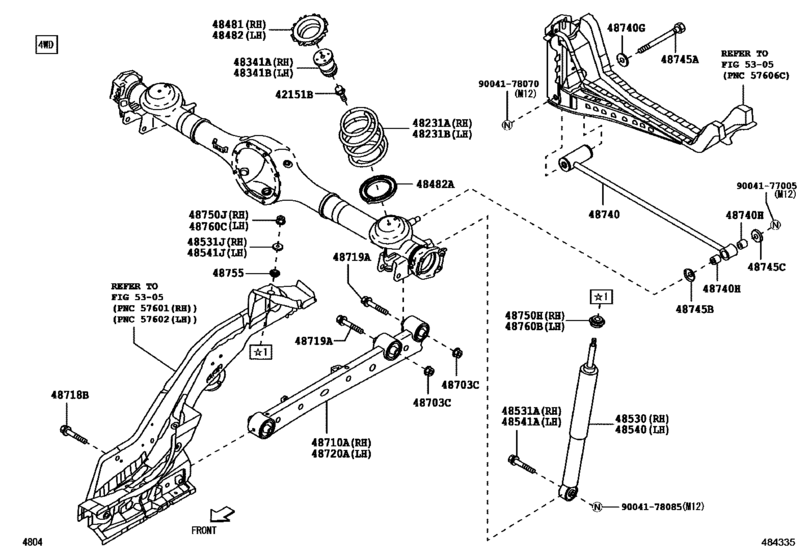

Rear Spring & Shock Absorber ([07.2015 - ] 4WD (1507- )LA710) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- LA710A
- grade
- G
- ENGINE
- KFVET
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- Drive Train
- 4WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42151B
|
42151B
91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt)[07.2015 - 05.2016] LA710 Ｍ８，Ｌ＝１４ |
91551-80814 |
US $1.43 |
||
|
48231A
|
48231A
48231-B2B60 Spring, Coil, Rear Rh[07.2015 - 05.2016] LA710 |
48231-B2B60 |
US $88.82 |
||
|
48231B
|
48231B
48231-B2B60 Spring, Coil, Rear Rh[07.2015 - 05.2016] LA710 |
48231-B2B60 |
US $88.82 |
||
|
48341A
|
48341A
48341-B2020 Bumper, Rear Spring, No.1 Rh[07.2015 - 05.2016] LA710 |
48341-B2020 |
US $25.54 |
||
|
48341B
|
48341B
48341-B2020 Bumper, Rear Spring, No.1 Rh[07.2015 - 05.2016] LA710 |
48341-B2020 |
US $25.54 |
||
|
48481
|
48481
48481-B2030 Seat, Rear Spring, Upper[07.2015 - 05.2016] LA710 |
48481-B2030 |
US $11.11 |
||
|
48482
|
48482
48481-B2030 Seat, Rear Spring, Upper[07.2015 - 05.2016] LA710 |
48481-B2030 |
US $11.11 |
||
|
48482A
|
48482A
48482-B2040 Seat, Rear Spring, Lower[07.2015 - 05.2016] LA710 |
48482-B2040 |
US $9.32 |
||
|
48530
|
48530
48531-B2G30 Absorber Assy, Shock, Rear Rh[07.2015 - 05.2016] LA710 マーク ４８５３１−Ｂ２Ｇ３０ |
48531-B2G30 |
US $93.18 |
||
|
48531A
|
48531A
90041-19A06 Bolt, Union(For Rear Shock Absorber Rh)[07.2015 - 05.2016] LA700,710 Ｍ１２，Ｌ＝６０．５ |
90041-19A06 |
US $6.27 |
||
|
48531J
|
48531J
90042-01758 Washer, Rear Shock Absorber Cushion, No.1 Rh[07.2015 - 05.2016] LA700,710 |
90042-01758 |
US $4.48 |
||
|
48540
|
48540
48531-B2G30 Absorber Assy, Shock, Rear Rh[07.2015 - 05.2016] LA710 マーク ４８５３１−Ｂ２Ｇ３０ |
48531-B2G30 |
US $93.18 |
||
|
48541A
|
48541A
90041-19A06 Bolt, Union(For Rear Shock Absorber Rh)[07.2015 - 05.2016] LA700,710 Ｍ１２，Ｌ＝６０．５ |
90041-19A06 |
US $6.27 |
||
|
48541J
|
48541J
90042-01758 Washer, Rear Shock Absorber Cushion, No.1 Rh[07.2015 - 05.2016] LA700,710 |
90042-01758 |
US $4.48 |
||
|
48703C
|
48703C
90041-70367 Nut(For Rear Suspension Arm)[07.2015 - 05.2016] LA710 Ｍ１２ |
90041-70367 |
US $1.79 |
||
|
48710A
|
48710A
48710-B2210 Arm Assy, Rear Suspension, No.1 Rh[07.2015 - 05.2016] LA710 |
48710-B2210 |
US $129.58 |
||
| replacement | |||||
|
48710A
|
48710A
48710-B2211 Arm Assy, Rear Suspension, No.1 Rh[07.2015 - 05.2016] LA710 |
48710-B2211 |
US $129.58 |
||
|
48710A
|
48710A
48710-B2211 Arm Assy, Rear Suspension, No.1 Rh[08.2016 -] LA710 |
48710-B2211 |
US $129.58 |
||
|
48718B
|
48718B
48718-B2020 Shaft, Rear Suspention Lower Arm, No.1[07.2015 - 05.2016] LA710 |
48718-B2020 |
US $8.24 |
||
|
48719A
|
48719A
48719-B2020 Shaft, Rear Suspention Lower Arm, No.2[07.2015 - 05.2016] LA710 |
48719-B2020 |
US $12.36 |
||
|
48719A
|
48719A
48719-B2021 Shaft, Rear Suspention Lower Arm, No.2[09.2016 -] LA710 |
48719-B2021 |
US $7.88 |
||
|
48720A
|
48720A
48720-B2050 Arm Assy, Rear Suspension, No.1 Lh[07.2015 - 05.2016] LA710 |
48720-B2050 |
US $129.58 |
||
| replacement | |||||
|
48720A
|
48720A
48720-B2051 Arm Assy, Rear Suspension, No.1 Lh[07.2015 - 05.2016] LA710 |
48720-B2051 |
US $157.44 |
||
|
48720A
|
48720A
48720-B2051 Arm Assy, Rear Suspension, No.1 Lh[08.2016 -] LA710 |
48720-B2051 |
US $157.44 |
||
|
48740
|
48740
48740-B2020 Rod Assy, Rear Lateral Control[07.2015 - 05.2016] LA710 |
48740-B2020 |
US $131.20 |
||
|
48740G
|
48740G
90042-01743 Washer, Plate, No.1(For Rear Lateral Control Rod)[07.2015 - 05.2016] LA710 |
90042-01743 |
US $3.94 |
||
|
48740H
|
48740H
90043-85102 Bush, No.1(For Rear Lateral Control Rod)[07.2015 - 05.2016] LA710 |
90043-85102 |
US $6.63 |
||
|
48745A
|
48745A
90041-01698 Bolt, Hexagon(For Lateral Control Rod)[07.2015 - 05.2016] LA710 Ｍ１２，Ｌ＝１２６ |
90041-01698 |
US $10.04 |
||
|
48745B
|
48745B
90042-09105 Washer, Front Shock Absorber Cushion, No.1[07.2015 - 05.2016] LA710 |
90042-09105 |
US $1.97 |
||
|
48745C
|
48745C
90948-03003 Retainer, Cushion, No.1(For Front Shock Absorber)[07.2015 - 05.2016] LA710 |
90948-03003 |
from US $1.22 |
||
|
48750H
|
48750H
48750-B2040 Support Assy, Rear Suspension[07.2015 - 05.2016] LA710 |
48750-B2040 |
US $20.66 |
||
|
48750J
|
48750J
94188-01001 Nut(For Rear Support To Rear Shock Absorber Rh)[07.2015 - 05.2016] LA700,710 Ｍ１０ |
94188-01001 |
US $2.51 |
||
|
48755
|
48755
48755-B2020 Support, Rear Suspension[07.2015 - 05.2016] LA700,710 |
48755-B2020 |
US $8.96 |
||
|
48760B
|
48760B
48750-B2040 Support Assy, Rear Suspension[07.2015 - 05.2016] LA710 |
48750-B2040 |
US $20.66 |
||
|
48760C
|
48760C
94188-01001 Nut(For Rear Support To Rear Shock Absorber Rh)[07.2015 - 05.2016] LA700,710 Ｍ１０ |
94188-01001 |
US $2.51 |
||
|
9004177005
|
9004177005
90041-77005 Nut |
90041-77005 |
US $3.23 |
||
|
9004178070
|
9004178070
90041-78070 Nut |
90041-78070 |
US $3.76 |
||
|
9004178085
|
9004178085
90041-78085 Nut(For Rear Support To Rear Shock Absorber) |
90041-78085 |
from US $0.76 |
||
