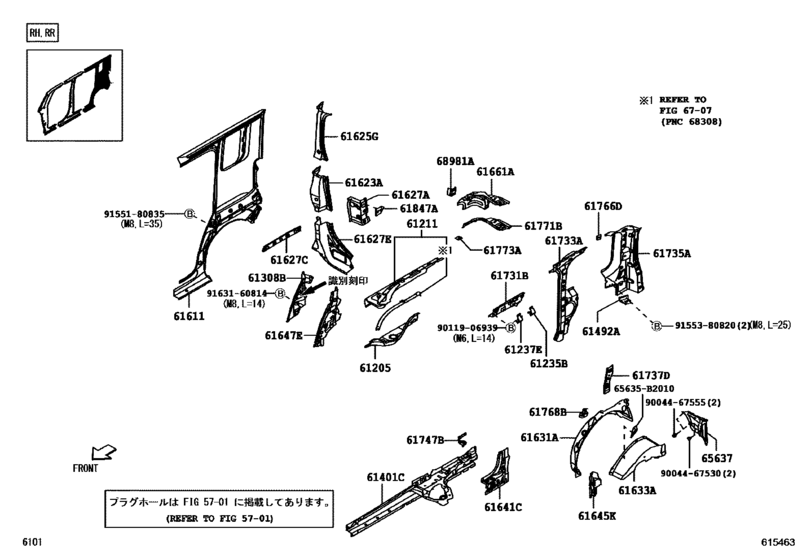

Side Member ([07.2015 - ] RH,RR (1507- )) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- LA710A
- grade
- G
- ENGINE
- KFVET
- TRANSMISSION
- CVT
- Model
- PIXIS MEGA
- From
- 07.2015
- Drive Train
- 4WD
- Vehicle Model
- PIXIS MEGA
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61205
|
61205
61233-B2190 Rail Sub-Assy, Roof Side, Inner Rear Rh[07.2015 - 05.2016] LA700,710 |
61233-B2190 |
US $71.34 |
||
|
61211
|
61211
61201-B2080 Rail, Roof Side, Outer Rh[07.2015 - 05.2016] LA700,710 |
61201-B2080 |
US $126.67 |
||
| replacement | |||||
|
61211
|
61211
61201-B2081 Rail, Roof Side, Outer Rh[07.2015 - 05.2016] LA700,710 |
61201-B2081 |
US $126.67 |
||
|
61211
|
61211
61201-B2081 Rail, Roof Side, Outer Rh[12.2016 -] LA700,710 |
61201-B2081 |
US $126.67 |
||
|
61235B
|
61235B
61235-B2160 Bracket, Assist Grip[07.2015 - 05.2016] LA700,710 |
61235-B2160 |
US $8.74 |
||
|
61237E
|
61237E
61237-B2110 Bracket, Assist Grip, No.1[07.2015 - 05.2016] LA700,710 |
61237-B2110 |
US $8.74 |
||
|
61308B
|
61308B
61308-B2250 Retainer Sub-Assy, Door Lock Striker, Rh[07.2015 - 05.2016] LA700,710 識別刻印 ＝ ＸＲ |
61308-B2250 |
US $87.36 |
||
|
61401C
|
61401C
61401-B2020 Panel Sub-Assy, Rocker, Outer Rh[07.2015 - 05.2016] LA700,710 |
61401-B2020 |
US $198.02 |
||
|
61492A
|
61492A
61491-B2010 Bracket, Side Panel Strength, No.2 Rh[07.2015 - 05.2016] LA700,710 |
61491-B2010 |
US $15 |
||
|
61611
|
61611
61611-B2440 Panel, Quarter, Rh[07.2015 - 05.2016] LA700,710 |
61611-B2440 |
US $555.36 |
||
|
61623A
|
61623A
61623-B2170 Extension, Quarter Panel, Outer Rh[07.2015 - 05.2016] LA700,710 |
61623-B2170 |
US $87.12 |
||
|
61625G
|
61625G
61625-B2220 Extension, Quarter Panel, Rear Rh[07.2015 - 05.2016] LA700,710 |
61625-B2220 |
US $87.36 |
||
|
61627A
|
61627A
61621-B2180 Extension, Quarter Panel, Lower Rh[07.2015 - 05.2016] LA700,710 |
61621-B2180 |
US $39.75 |
||
|
61627C
|
61627C
61618-B2120 Reinforcement, Quarter Inner Panel, Rh[07.2015 - 05.2016] LA700,710 |
61618-B2120 |
US $18.40 |
||
|
61627E
|
61627E
61627-B2200 Extension, Quarter Panel, Rear Lower Rh[07.2015 - 05.2016] LA700,710 |
61627-B2200 |
US $104.28 |
||
|
61631A
|
61631A
61631-B2120 Panel, Quarter Wheel House, Outer Rh[07.2015 - 05.2016] LA700,710 |
61631-B2120 |
US $71.34 |
||
|
61633A
|
61633A
61633-B2090 Panel, Quarter Wheel House, Inner Rh[07.2015 - 05.2016] LA700,710 |
61633-B2090 |
US $55.62 |
||
|
61641C
|
61641C
61641-B2030 Gusset, Quarter Wheel House, Front Rh[07.2015 - 05.2016] LA700,710 |
61641-B2030 |
US $55.62 |
||
|
61645K
|
61645K
61645-B2030 Gusset, Quarter Wheel House Inner, Rh[07.2015 - 05.2016] LA700,710 |
61645-B2030 |
US $20.68 |
||
|
61647E
|
61647E
61647-B2060 Reinforcement, Quarter Panel, Lower Rh[07.2015 - 05.2016] LA700,710 |
61647-B2060 |
US $87.36 |
||
|
61661A
|
61661A
61661-B2170 Extension, Quarter Panel To Upper Back, Rh[07.2015 - 05.2016] LA700,710 |
61661-B2170 |
US $71.34 |
||
|
61731B
|
61731B
61731-B2200 Panel, Roof Side, Inner Rh[07.2015 - 05.2016] LA700,710 |
61731-B2200 |
US $39.75 |
||
|
61733A
|
61733A
61733-B2150 Panel, Roof Side, Inner Front Rh[07.2015 - 05.2016] LA700,710 |
61733-B2150 |
US $87.36 |
||
|
61735A
|
61735A
61735-B2150 Panel, Roof Side, Inner Rear Rh[07.2015 - 05.2016] LA700,710 |
61735-B2150 |
US $126.67 |
||
|
61737D
|
61737D
61737-B2130 Reinforcement, Roof Side, Inner Rh[07.2015 - 05.2016] LA700,710 |
61737-B2130 |
US $25.19 |
||
|
61747B
|
61747B
61747-B2030 Reinforcement, Roof Side, Inner Rear, Rh[07.2015 - 05.2016] LA700,710 |
61747-B2030 |
US $20.68 |
||
|
61766D
|
61766D
58272-B2010 Reinforce, Belt Anchor To Quarter, Inner No.1 Rh[07.2015 - 05.2016] LA700,710 |
58272-B2010 |
US $7.43 |
||
|
61768B
|
61768B
61768-B2230 Reinforce, Belt Anchor To Roof Side, Inner Rear Rh[07.2015 - 05.2016] LA700,710 |
61768-B2230 |
US $13.98 |
||
|
61771B
|
61771B
61771-B2120 Frame, Back Door Opening Upper Corner, Rh[07.2015 - 05.2016] LA700,710 |
61771-B2120 |
US $55.62 |
||
|
61773A
|
61773A
61773-B2010 Patch, Back Door Opening, Lower Rh[07.2015 - 05.2016] LA700,710 |
61773-B2010 |
US $5.10 |
||
|
61847A
|
61847A
61847-B2010 Retainer, Quarter Panel, Rh[07.2015 - 05.2016] LA700,710 |
61847-B2010 |
US $4.51 |
||
|
65637
|
65637
65637-B2220 Liner, Rear Wheel House, Rh[07.2015 - 05.2016] LA710 |
65637-B2220 |
US $20.68 |
||
|
68981A
|
68981A
68981-B2010 Retainer, Back Door Stay, Rh[07.2015 - 05.2016] LA700,710 |
68981-B2010 |
US $5.68 |
||
|
65635B2010
|
65635B2010
65635-B2010 Plate, Rear Wheel House |
65635-B2010 |
US $4.95 |
||
|
9004467530
|
9004467530
90044-67530 New Genuine Part |
90044-67530 |
US $3.23 |
||
|
9004467555
|
9004467555
90044-67555 Clip, Rear Bumper Side |
90044-67555 |
from US $2.03 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
from US $0.63 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.78 |
||
|
9155380820
|
9155380820
91553-80820 BOLTFLANGE |
91553-80820 |
US $1.43 |
||
|
9163160814
|
9163160814
91631-60814 New Genuine Part |
91631-60814 |
US $1.43 |
||
