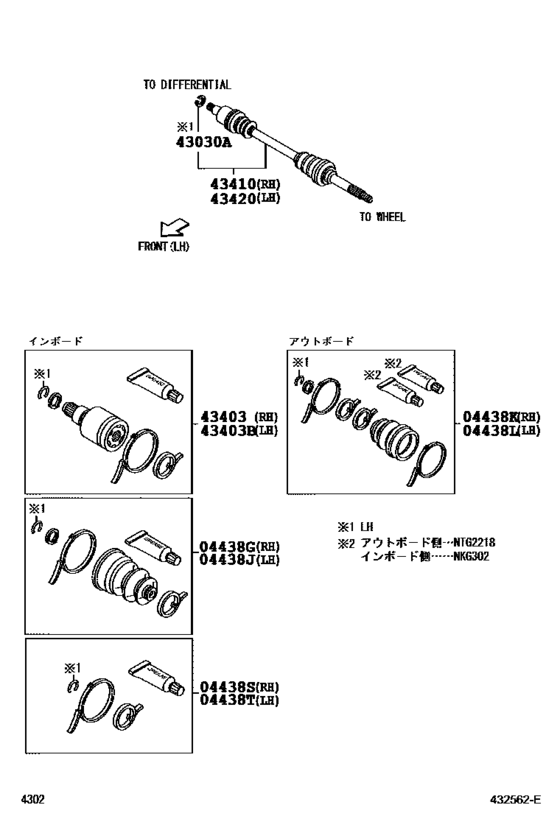

Front Drive Shaft ([12.2011 - ] (1112- )S211) Diagram Toyota PIXIS
- Year
- 2011 - 2014
- Sales region
- Japan
- Frame
- S211U
- grade
- EXT
- body
- TR
- ENGINE
- KFVE
- TRANSMISSION
- MTM
- DECK
- T7
- Model
- PIXIS TRUCK
- From
- 12.2011
- To
- 07.2014
- Gear Shift Type
- 5F
- Drive Train
- 4WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438G
|
04438G
04437-B5010 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.2011 -] S211 |
04437-B5010 |
US $36.84 |
||
| replacement | |||||
|
04438G
|
04438G
04437-B2010 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.2011 -] S211 |
04437-B2010 |
US $35.29 |
||
|
04438J
|
04438J
04437-B2010 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.2011 - 07.2014] S211 ＮＴＮ |
04437-B2010 |
US $35.29 |
||
|
04438K
|
04438K
04425-B5050 Boot Kit, Front Drive Shaft Outboard Joint, Rh[12.2011 - 07.2014] S211 ＮＴＮ |
04425-B5050 |
US $50.23 |
||
| replacement | |||||
|
04438K
|
04438K
04425-B5040 Boot Kit, Front Drive Shaft Outboard Joint, Rh[12.2011 - 07.2014] S211 ＮＴＮ |
04425-B5040 |
US $63.17 |
||
|
04438L
|
04438L
04425-B5040 Boot Kit, Front Drive Shaft Outboard Joint, Rh[12.2011 - 07.2014] S211 ＮＴＮ |
04425-B5040 |
US $63.17 |
||
|
04438S
|
04438S
04435-B5010 Clamp Kit, Front Drive Shaft, Rh[12.2011 -] S211 |
04435-B5010 |
US $18.49 |
||
| replacement | |||||
|
04438S
|
04438S
04435-B2010 Clamp Kit, Front Drive Shaft, Rh[12.2011 -] S211 |
04435-B2010 |
US $21.26 |
||
|
04438T
|
04438T
04435-B2010 Clamp Kit, Front Drive Shaft, Rh[12.2011 - 07.2014] S211 ＮＴＮ |
04435-B2010 |
US $21.26 |
||
|
43030A
|
43030A
90045-20298 Ring, Hole Snap (For Front Drive Inboard Joint)[12.2011 -] S211 |
90045-20298 |
from US $0.78 |
||
|
43403
|
43403
43408-B9310 Joint Set, Front Axle Inboard, Rh[12.2011 -] S211 |
43408-B9310 |
US $342.16 |
||
| replacement | |||||
|
43403
|
43403
43408-B9490 Joint Set, Front Axle Inboard, Rh[12.2011 -] S211 |
43408-B9490 |
US $311.58 |
||
|
43403B
|
43403B
43408-B9320 Joint Set, Front Axle Inboard, Lh[12.2011 -] S211 |
43408-B9320 |
US $311.58 |
||
|
43410
|
43410
43410-B5021 Shaft Assy, Front Drive, Rh[12.2011 - 12.2012] S211..MTM..EXT ＳＲＳエアバッグ（Ｄ＋Ｐ）,外径＝２０ （シャフト サイズ） |
43410-B5021 |
US $685.78 |
||
|
43410
|
43410
43410-B5031 Shaft Assy, Front Drive, Rh[12.2011 -] S211 外径＝２０ （シャフト サイズ） |
43410-B5031 |
US $685.78 |
||
| replacement | |||||
|
43410
|
43410
43410-B5070
Shaft Assy, Front Drive, Rh
[12.2011 -] S211 外径＝２０ （シャフト サイズ） |
43410-B5070 |
— | ||
|
43420
|
43420
43420-B5011 Shaft Assy, Front Drive, Lh[12.2011 -] S211 外径＝２０ （シャフト サイズ） |
43420-B5011 |
US $685.78 |
||
|
43420
|
43420
43420-B5021 Shaft Assy, Front Drive, Lh[12.2011 - 12.2012] S211..MTM..EXT ＳＲＳエアバッグ（Ｄ＋Ｐ）,外径＝２０ （シャフト サイズ） |
43420-B5021 |
US $685.78 |
||
