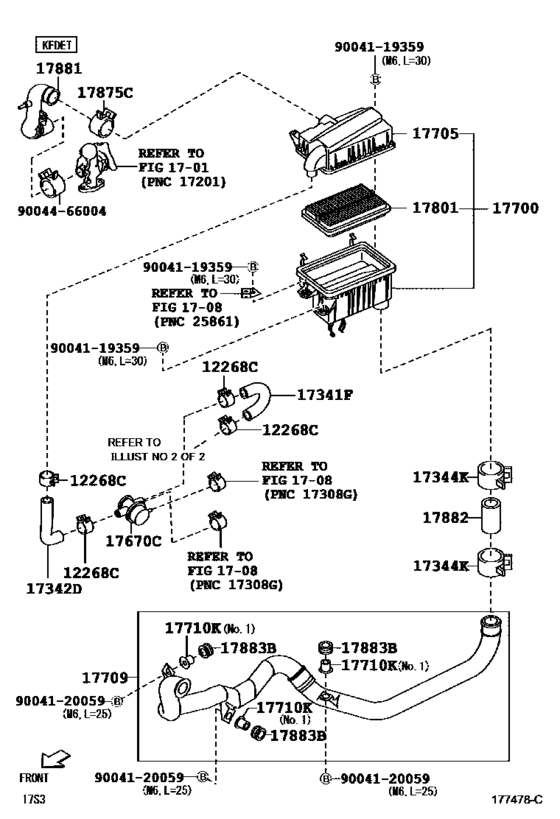

Air Cleaner ([12.2011 - ] ｴｱ ｸﾘｰﾅ (1112- )KFDET) Diagram Toyota PIXIS
- Year
- 2011 - 2015
- Sales region
- Japan
- Frame
- S321M
- grade
- CR
- body
- VAN
- Roof
- HRF
- ENGINE
- KFDET
- CATEGORY
- PS1
- Model
- PIXIS VAN
- From
- 12.2011
- To
- 04.2015
- Gear Shift Type
- 5F
- Drive Train
- 2WD
- Vehicle Model
- PIXIS VAN
- Emission Regulation
- STD
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12268C
|
12268C
90044-67103
Clip, Hose
[12.2011 - 06.2015] KFDET..S321,331 |
90044-67103 |
— | ||
|
17341F
|
17341F
17341-B5010 Hose, Air, No.1[12.2011 -] KFDET..S321,331 |
17341-B5010 |
US $19.80 |
||
|
17342D
|
17342D
17342-B5010 Hose, Air, No.2[12.2011 -] KFDET..S321,331 |
17342-B5010 |
US $22.57 |
||
|
17344K
|
17344K
90044-67457 Clip(For Air Hose, No.4)[12.2011 -] KFDET..S321,331 |
90044-67457 |
US $5.82 |
||
|
17670C
|
17670C
17670-B2010 Valve Assy, Air By-Pass[12.2011 -] KFDET..S321,331 |
17670-B2010 |
US $106.29 |
||
|
17700
|
17700
17700-B2131 Cleaner Assy, Air[12.2011 -] KFDET..S321,331 |
17700-B2131 |
US $189.28 |
||
|
17705
|
17705
17705-B2091 Cap Sub-Assy, Air Cleaner[12.2011 -] KFDET..S321,331 |
17705-B2091 |
US $90.27 |
||
|
17709
|
17709
17709-B5011 Inlet Sub-Assy, Air Cleaner[12.2011 -] KFDET..S321,331 |
17709-B5011 |
US $109.20 |
||
|
17710K
|
17710K
90043-87144 Collar(For Air Cleaner)[12.2011 -] KFDET..S321,331 ＮＯ．１ |
90043-87144 |
US $3.64 |
||
|
17801
|
17801
17801-97203 Element Sub-Assy, Air Cleaner Filter[12.2011 -] KFDET..S321,331 |
17801-97203 |
US $22.71 |
||
|
17875C
|
17875C
90044-67115 Clip(For Hose, No.1)[12.2011 -] KFDET..S321,331 |
90044-67115 |
US $7.72 |
||
|
17881
|
17881
17881-B2090 Hose, Air Cleaner, No.1[12.2011 - 03.2015] KFDET..S321,331 |
17881-B2090 |
US $37.56 |
||
| replacement | |||||
|
17881
|
17881
17881-B2091 Hose, Air Cleaner, No.1[12.2011 - 03.2015] KFDET..S321,331 |
17881-B2091 |
US $33.78 |
||
|
17881
|
17881
17881-B2091 Hose, Air Cleaner, No.1[03.2015 -] KFDET..S321,331 |
17881-B2091 |
US $33.78 |
||
|
17882
|
17882
17882-97502 Hose, Air Cleaner, No.2[12.2011 -] KFDET..S321,331 |
17882-97502 |
US $13.25 |
||
|
17883B
|
17883B
90044-80614 Grommet, Air Cleaner Hose[12.2011 -] KFDET..S321,331 |
90044-80614 |
US $3.20 |
||
|
9004119359
|
9004119359
90041-19359 New Genuine Part |
90041-19359 |
US $2.18 |
||
|
9004120059
|
9004120059
90041-20059 New Genuine Part |
90041-20059 |
US $2.04 |
||
|
9004466004
|
9004466004
90044-66004 Clip(For Air Hose No.4) |
90044-66004 |
US $6.12 |
||
