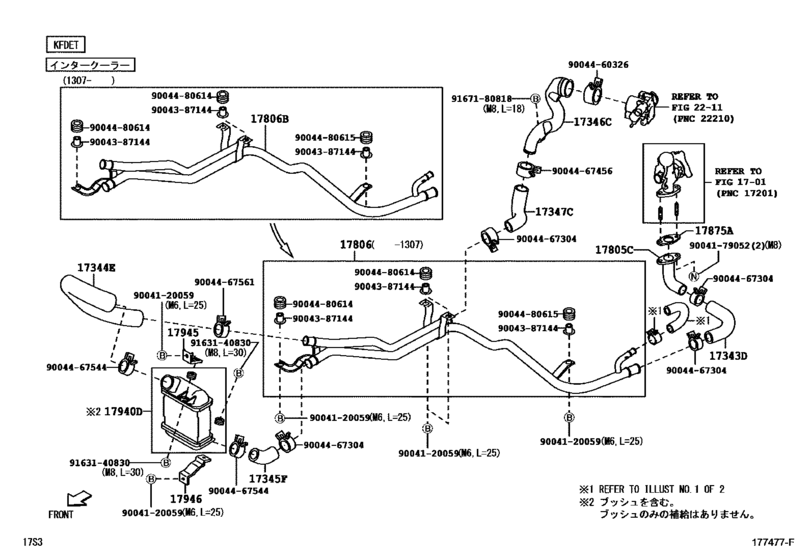

Air Cleaner ([12.2011 - 04.2015] ｲﾝﾀｰｸｰﾗｰ (1112-1504)KFDET) Diagram Toyota PIXIS
- Year
- 2011 - 2015
- Sales region
- Japan
- Frame
- S321M
- grade
- CR
- body
- VAN
- Roof
- HRF
- ENGINE
- KFDET
- CATEGORY
- PS1
- Model
- PIXIS VAN
- From
- 12.2011
- To
- 04.2015
- Gear Shift Type
- 5F
- Drive Train
- 2WD
- Vehicle Model
- PIXIS VAN
- Emission Regulation
- STD
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17343D
|
17343D
17343-B5010 Hose, Air, No.3[12.2011 -] KFDET..S321,331 |
17343-B5010 |
US $19.80 |
||
|
17344E
|
17344E
17344-B5020 Hose, Air, No.4[12.2011 - 06.2014] KFDET..S321,331 |
17344-B5020 |
US $36.84 |
||
| replacement | |||||
|
17344E
|
17344E
17344-B5022 Hose, Air, No.4[12.2011 - 06.2014] KFDET..S321,331 |
17344-B5022 |
US $39.02 |
||
|
17344E
|
17344E
17344-B5021 Hose, Air, No.4[07.2014 - 01.2016] KFDET..S321,331 |
17344-B5021 |
US $39.02 |
||
| replacement | |||||
|
17344E
|
17344E
17344-B5022 Hose, Air, No.4[07.2014 - 01.2016] KFDET..S321,331 |
17344-B5022 |
US $39.02 |
||
|
17345F
|
17345F
17345-B5020 Hose, Air, No.5[12.2011 -] KFDET..S321,331 |
17345-B5020 |
US $20.68 |
||
|
17346C
|
17346C
17346-B2010 Hose, No.6[12.2011 - 11.2012] KFDET..S321,331 |
17346-B2010 |
US $31.60 |
||
| replacement | |||||
|
17346C
|
17346C
17346-B2011 Hose, No.6[12.2011 - 11.2012] KFDET..S321,331 |
17346-B2011 |
US $37.56 |
||
|
17346C
|
17346C
17346-B2011 Hose, No.6[12.2012 - 03.2015] KFDET..S321,331 |
17346-B2011 |
US $37.56 |
||
|
17347C
|
17347C
17347-B2010 Hose, Air, No.7[12.2011 -] KFDET..S321,331 |
17347-B2010 |
US $26.94 |
||
|
17805C
|
17805C
17805-B2010 Pipe Sub-Assy, Air Cleaner, No.1[12.2011 -] KFDET..S321,331 |
17805-B2010 |
US $28.10 |
||
|
17806
|
17806
17806-B2010 Pipe Sub-Assy, Air Cleaner, No.2[12.2011 - 10.2012] KFDET..S321,331 |
17806-B2010 |
US $190.74 |
||
| replacements | |||||
|
17806
|
17806
17886-B5011 Pipe Sub-Assy, Air Cleaner, No.3[12.2011 - 10.2012] KFDET..S321,331 |
17886-B5011 |
US $200.93 |
||
|
17806
|
17806
90043-87144 Collar(For Air Cleaner)[12.2011 - 10.2012] KFDET..S321,331 |
90043-87144 |
US $3.64 |
||
|
17806
|
17806
90044-80614 Grommet, Air Cleaner Hose[12.2011 - 10.2012] KFDET..S321,331 |
90044-80614 |
US $3.20 |
||
|
17806
|
17806
90044-80615 New Genuine Part[12.2011 - 10.2012] KFDET..S321,331 |
90044-80615 |
US $3.64 |
||
|
17806
|
17806
17806-B2011 Pipe Sub-Assy, Air Cleaner, No.2[11.2012 - 07.2013] KFDET..S321,331 |
17806-B2011 |
US $190.74 |
||
| replacements | |||||
|
17806
|
17806
17886-B5011 Pipe Sub-Assy, Air Cleaner, No.3[11.2012 - 07.2013] KFDET..S321,331 |
17886-B5011 |
US $200.93 |
||
|
17806
|
17806
90043-87144 Collar(For Air Cleaner)[11.2012 - 07.2013] KFDET..S321,331 |
90043-87144 |
US $3.64 |
||
|
17806
|
17806
90044-80614 Grommet, Air Cleaner Hose[11.2012 - 07.2013] KFDET..S321,331 |
90044-80614 |
US $3.20 |
||
|
17806
|
17806
90044-80615 New Genuine Part[11.2012 - 07.2013] KFDET..S321,331 |
90044-80615 |
US $3.64 |
||
|
17806B
|
17806B
17886-B5011 Pipe Sub-Assy, Air Cleaner, No.3[07.2013 -] KFDET..S321,331 |
17886-B5011 |
US $200.93 |
||
|
17875A
|
17875A
17171-87205 Gasket, Intake To Exhaust Manifold[12.2011 -] KFDET..S321,331 |
17171-87205 |
US $6.09 |
||
|
17940D
|
17940D
17940-B5020 Intercooler Assy[12.2011 - 09.2012] KFDET..S321,331 |
17940-B5020 |
US $337.79 |
||
| replacement | |||||
|
17940D
|
17940D
17940-BW010 Intercooler Assy[12.2011 - 09.2012] KFDET..S321,331 |
17940-BW010 |
US $356.72 |
||
|
17940D
|
17940D
17940-BW010 Intercooler Assy[10.2012 -] KFDET..S321,331 |
17940-BW010 |
US $356.72 |
||
|
17945
|
17945
17945-B5010 Bracket, Intercooler Support[12.2011 -] KFDET..S321,331 |
17945-B5010 |
US $5.68 |
||
|
17946
|
17946
17946-B5010 Bracket, Intercooler Support, No.2[12.2011 -] KFDET..S321,331 |
17946-B5010 |
US $8.01 |
||
|
9004120059
|
9004120059
90041-20059 New Genuine Part |
90041-20059 |
US $2.04 |
||
|
9004179052
|
9004179052
90041-79052 NUT |
90041-79052 |
US $3.76 |
||
|
9004387144
|
9004387144
90043-87144 Collar(For Air Cleaner) |
90043-87144 |
US $3.64 |
||
|
9004460326
|
9004460326
90044-60326 New Genuine Part |
90044-60326 |
US $4.08 |
||
|
9004467304
|
9004467304
90044-67304 Clamp Or Clip(For Air Hose, No.1) |
90044-67304 |
US $7.43 |
||
|
9004467456
|
9004467456
90044-67456 Clip(For Hose, No.2) |
90044-67456 |
US $5.82 |
||
|
9004467544
|
9004467544
90044-67544 Clip(For Air Hose No.1) |
90044-67544 |
US $7.57 |
||
|
9004467561
|
9004467561
90044-67561 New Genuine Part |
90044-67561 |
US $9.03 |
||
|
9004480614
|
9004480614
90044-80614 Grommet, Air Cleaner Hose |
90044-80614 |
US $3.20 |
||
|
9004480615
|
9004480615
90044-80615 New Genuine Part |
90044-80615 |
US $3.64 |
||
|
9163140830
|
9163140830
91631-40830
New Genuine Part
|
91631-40830 |
— | ||
| replacement | |||||
|
9163140830
|
9163140830
91631-G0830 BOLT WWASHER |
91631-G0830 |
US $2.87 |
||
|
9167180818
|
9167180818
91671-80818 BOLT FLANGE |
91671-80818 |
from US $0.84 |
||
