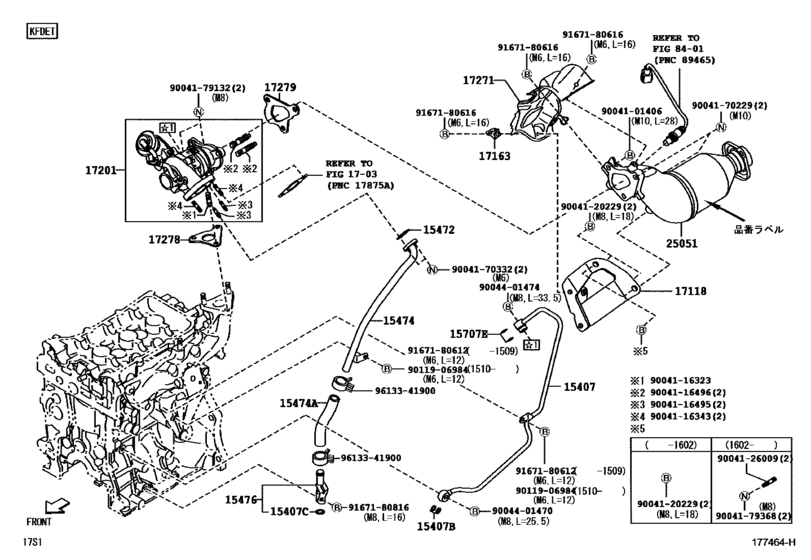

Manifold ([12.2011 - 01.2017] (1112-1701)KFDET) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- S321M
- grade
- CR
- body
- VAN
- Roof
- HRF
- ENGINE
- KFDET
- CATEGORY
- PS2
- Model
- PIXIS VAN
- From
- 04.2015
- Gear Shift Type
- 4FC
- Drive Train
- 2WD
- Vehicle Model
- PIXIS VAN
- Emission Regulation
- STD
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15407
|
15407
15407-B5020 Pipe Sub-Assy, Turbo Oil Inlet[12.2011 -] KFDET..S321,331 |
15407-B5020 |
US $42.81 |
||
|
15407B
|
15407B
90044-30319 Gasket(For Turbo Oil Inlet Pipe)[12.2011 -] KFDET..S321,331 |
90044-30319 |
US $3.23 |
||
|
15407C
|
15407C
90043-01346 Ring, O(For Turbo Oil Pipe)[12.2011 -] KFDET..S321,331 |
90043-01346 |
US $2.15 |
||
|
15472
|
15472
15472-B2010 Gasket, Turbo Oil Outlet, No.1[12.2011 -] KFDET..S321,331 |
15472-B2010 |
US $4.66 |
||
|
15474
|
15474
15474-B2030 Pipe, Turbo Oil Outlet[12.2011 -] KFDET..S321,331 |
15474-B2030 |
US $39.75 |
||
|
15474A
|
15474A
15491-B2010 Hose, Turbo Oil Outlet[12.2011 -] KFDET..S321,331 |
15491-B2010 |
US $13.98 |
||
|
15476
|
15476
15476-B2011 Pipe, Turbo Oil Outlet, No.2[12.2011 -] KFDET..S321,331 |
15476-B2011 |
US $15.87 |
||
|
15707E
|
15707E
90044-30316 Gasket(For Oil Pipe)[12.2011 -] KFDET..S321,331 |
90044-30316 |
from US $3 |
||
|
17118
|
17118
17118-B2040 Stay, Manifold[12.2011 -] KFDET..S321,331 |
17118-B2040 |
US $26.06 |
||
|
17163
|
17163
89439-B5040 Bracket, Heat Insulator, No.1[12.2011 -] KFDET..S321,331 |
89439-B5040 |
US $4.08 |
||
|
17201
|
17201
17201-B2042 Turbocharger Sub-Assy[01.2015 -] KFDET..S321,331 |
17201-B2042 |
US $1,528.80 |
||
|
17271
|
17271
17271-B2010 Insulator, Turbo, No.1[12.2011 -] KFDET..S321,331 |
17271-B2010 |
US $51.11 |
||
|
17278
|
17278
17278-B2011 Gasket, Turbo To Exhaust Manifold[12.2011 -] KFDET..S321,331 |
17278-B2011 |
US $12.72 |
||
|
17279
|
17279
17279-B2020 Gasket, Turbine Outlet Elbow[12.2011 -] KFDET..S321,331 |
17279-B2020 |
US $14.87 |
||
|
25051
|
25051
25051-B2211 Converter Sub-Assy, Exhaust Manifold[12.2011 - 01.2017] KFDET..S321,331 品番ラベル有り |
25051-B2211 |
US $630.45 |
||
|
25051
|
25051
25051-B2212 Converter Sub-Assy, Exhaust Manifold[01.2017 -] KFDET..S321,331 品番ラベル有り |
25051-B2212 |
US $710.53 |
||
|
9004101406
|
9004101406
90041-01406 New Genuine Part |
90041-01406 |
US $11.11 |
||
|
9004116323
|
9004116323
90041-16323 Bolt, Stud(For Turbine Housing) |
90041-16323 |
US $6.26 |
||
|
9004116343
|
9004116343
90041-16343 New Genuine Part |
90041-16343 |
US $2.48 |
||
|
9004116495
|
9004116495
90041-16495 Bolt(For Turbocharger Stay) |
90041-16495 |
US $1.60 |
||
|
9004116496
|
9004116496
90041-16496 Bolt, Stud(For Turbocharger) |
90041-16496 |
US $4.51 |
||
|
9004120229
|
9004120229
90041-20229 New Genuine Part |
90041-20229 |
US $3.05 |
||
|
9004126009
|
9004126009
90041-26009 New Genuine Part |
90041-26009 |
US $2.77 |
||
|
9004170229
|
9004170229
90041-70229 New Genuine Part |
90041-70229 |
US $4.12 |
||
|
9004170332
|
9004170332
90041-70332 New Genuine Part |
90041-70332 |
US $2.87 |
||
|
9004179132
|
9004179132
90041-79132 New Genuine Part |
90041-79132 |
US $3.94 |
||
|
9004179368
|
9004179368
90041-79368 New Genuine Part |
90041-79368 |
US $2.33 |
||
|
9004401470
|
9004401470
90044-01470 New Genuine Part |
90044-01470 |
US $3.64 |
||
|
9004401474
|
9004401474
90044-01474 Bolt, Union, No.1 |
90044-01474 |
US $4.37 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $1.08 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.65 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.76 |
||
|
9613341900
|
9613341900
96133-41900 Clip Or Clamp(For Ventilation Hose) |
96133-41900 |
US $3.79 |
