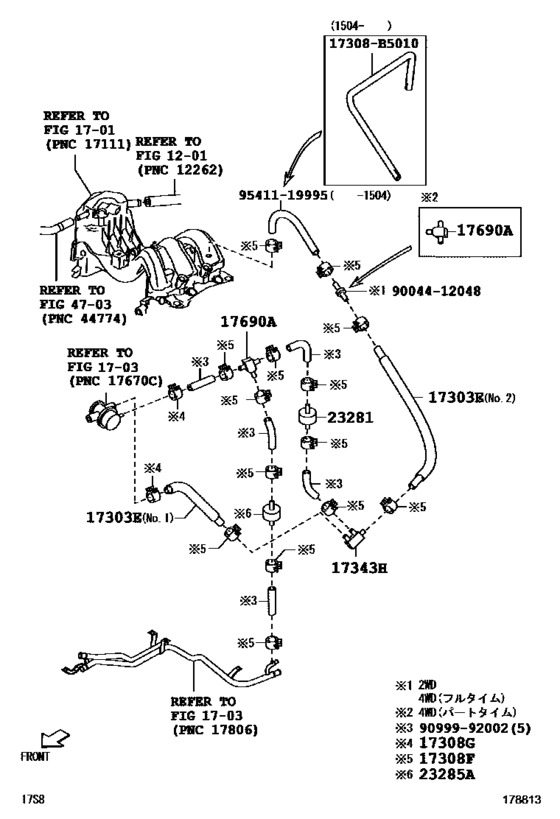

Vacuum Piping ([12.2011 - ] (1112- )KFDET) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- S331M
- grade
- CR
- body
- VAN
- Roof
- HRF
- ENGINE
- KFDET
- CATEGORY
- PS2
- Model
- PIXIS VAN
- From
- 04.2015
- Gear Shift Type
- 5F
- Drive Train
- 4WD
- Vehicle Model
- PIXIS VAN
- Emission Regulation
- STD
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303E
|
17303E
17308-87518 Hose, No.1(For Air Pipe)[12.2011 -] KFDET..S321,331 ＮＯ．１ |
17308-87518 |
US $11.07 |
||
|
17303E
|
17303E
90044-46755 Hose, No.1(For Air Pipe)[12.2011 -] KFDET..S321,331 ＮＯ．２ |
90044-46755 |
US $16.16 |
||
|
17308F
|
17308F
90044-67122 Clip(For Intake Manifold)[12.2011 -] KFDET..S321,331 |
90044-67122 |
US $3.23 |
||
|
17308G
|
17308G
90044-67220 Clip(For Intake Manifold)[12.2011 -] KFDET..S321,331 |
90044-67220 |
US $0.87 |
||
|
17343H
|
17343H
90044-13034 Way, 3(For Air Hose)[12.2011 -] KFDET..S321,331 |
90044-13034 |
US $4.37 |
||
|
17690A
|
17690A
90044-13053 Way, 3(For Hot Start Valve)[12.2011 -] KFDET..S331 |
90044-13053 |
US $4.37 |
||
|
23281
|
23281
90048-21004 Valve, Vacuum Switching[12.2011 -] KFDET..S321,331 |
90048-21004 |
US $26.50 |
||
|
23285A
|
23285A
90048-20008 Valve, Check, No.1[12.2011 -] KFDET..S321,331 |
90048-20008 |
US $26.54 |
||
|
17308B5010
|
17308B5010
17308-B5010 Hose Sub-assy, Vacuum(for Idle-up) |
17308-B5010 |
US $6.41 |
||
|
9004412048
|
9004412048
90044-12048 New Genuine Part |
90044-12048 |
US $3.20 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119995
|
9541119995
95411-19995
Hose, Vaccum
|
95411-19995 |
— | ||
| replacement | |||||
|
9541119995
|
9541119995
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92004 |
from US $8.76 |
||
