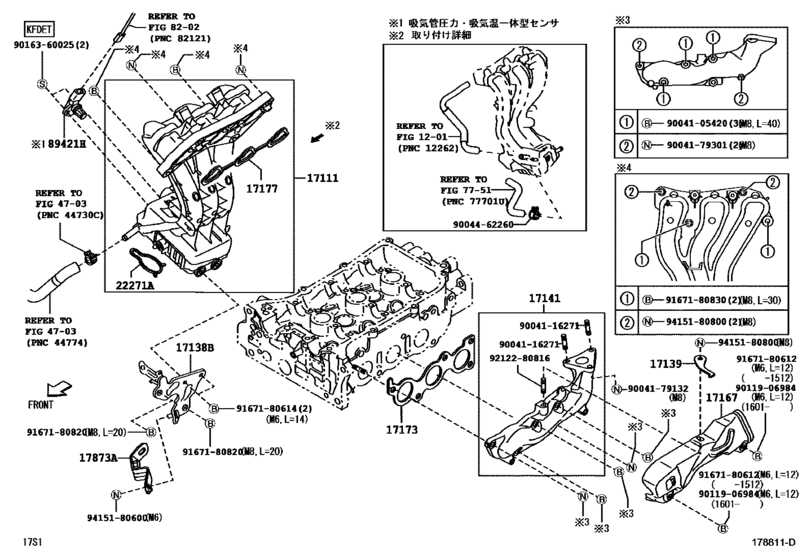

Manifold ([04.2015 - ] (1504- )KFDET) Diagram Toyota PIXIS
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- S331M
- grade
- CR
- body
- VAN
- Roof
- HRF
- ENGINE
- KFDET
- CATEGORY
- PS2
- Model
- PIXIS VAN
- From
- 04.2015
- Gear Shift Type
- 4FC
- Drive Train
- 4WD
- Vehicle Model
- PIXIS VAN
- Emission Regulation
- STD
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-B2120 Manifold, Intake[04.2015 -] KF#..S321,331 |
17120-B2120 |
US $183.46 |
||
|
17138B
|
17138B
17138-B2101 Stay, Intake Manifold[04.2015 -] KF#..S321,331..PS2 |
17138-B2101 |
US $18.35 |
||
|
17139
|
17139
12318-B2010 Stay, Manifold, No.2[12.2011 -] KFDET..S321,331 |
12318-B2010 |
US $4.22 |
||
|
17141
|
17141
17104-B2050 Manifold, Exhaust[12.2011 -] KFDET..S321,331 |
17104-B2050 |
US $147.06 |
||
|
17167
|
17167
17167-B2050 Insulator, Exhaust Manifold Heat, No.1[12.2011 -] KFDET..S321,331 |
17167-B2050 |
US $51.11 |
||
|
17173
|
17173
17173-B2021 Gasket, Exhaust Manifold To Head[12.2011 -] KF#..S321,331 |
17173-B2021 |
US $16.84 |
||
|
17177
|
17177
17177-B2010 Gasket, Intake Manifold To Head, No.1[12.2011 -] KF#..S321,331 |
17177-B2010 |
US $10.57 |
||
|
17873A
|
17873A
17872-B5010 Bracket, Intake Air Connector, No.2[04.2015 -] KF#..S321,331..PS2 |
17872-B5010 |
US $8.74 |
||
|
22271A
|
22271A
22271-B2040 Gasket, Throttle Body[04.2015 -] KF#..S321,331 |
22271-B2040 |
US $10.57 |
||
|
89421H
|
89421H
89421-B2020 Sensor, Vacuum[12.2011 -] S321,331..TBO |
89421-B2020 |
US $104.96 |
||
|
9004105420
|
9004105420
90041-05420 New Genuine Part |
90041-05420 |
US $3.76 |
||
|
9004116271
|
9004116271
90041-16271 Bolt, Stud |
90041-16271 |
US $6.26 |
||
|
9004179132
|
9004179132
90041-79132 New Genuine Part |
90041-79132 |
US $3.94 |
||
|
9004179301
|
9004179301
90041-79301 New Genuine Part |
90041-79301 |
US $2.33 |
||
|
9004462260
|
9004462260
90044-62260 Clamp, Breather Tube |
90044-62260 |
US $4.08 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $1.08 |
||
|
9016360025
|
9016360025
90163-60025 New Genuine Part |
90163-60025 |
US $0.73 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.65 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.78 |
||
|
9167180830
|
9167180830
91671-80830 BOLT FLANGE |
91671-80830 |
US $1.43 |
||
|
9212280816
|
9212280816
92122-80816 Bolt, Stud(For Oil Strainer) |
92122-80816 |
US $0.87 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
