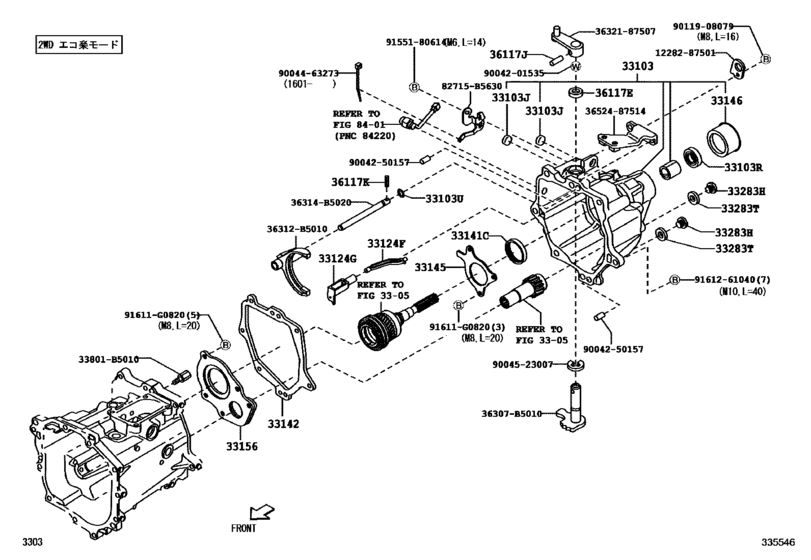

Extension Housing (Mtm) ([12.2014 - ] (1412- )S500..5MT) Diagram Toyota PIXIS
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- S500U
- grade
- EXT
- body
- TR
- Roof
- SRF
- ENGINE
- KFVE
- TRANSMISSION
- MTM
- Model
- PIXIS TRUCK
- From
- 09.2014
- Gear Shift Type
- 5MT
- Drive Train
- 2WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33103
|
33103
33103-97502 Housing Sub-Assy, Extension(Mtm)[09.2014 - 02.2015] S500..5MT |
33103-97502 |
US $122.30 |
||
| replacement | |||||
|
33103
|
33103
33103-B5030 Housing Sub-Assy, Extension(Mtm)[09.2014 - 02.2015] S500..5MT |
33103-B5030 |
US $141.23 |
||
|
33103
|
33103
33103-B5010 Housing Sub-Assy, Extension(Mtm)[12.2014 - 10.2016] S500..5MT エコ楽モード |
33103-B5010 |
US $183.46 |
||
|
33103
|
33103
33103-B5030 Housing Sub-Assy, Extension(Mtm)[03.2015 - 10.2016] S500..5MT |
33103-B5030 |
US $141.23 |
||
|
33103J
|
33103J
90043-31029 Plug, Tight(For Extension Housing)[12.2014 - 10.2016] S500..5MT エコ楽モード |
90043-31029 |
US $3.06 |
||
|
33103R
|
33103R
90043-11309 Seal, Oil(For Manual Transmission Extension Housing)[09.2014 - 10.2016] S500..5MT |
90043-11309 |
US $7.88 |
||
|
33103U
|
33103U
96711-19009 Ring, O(For Oil Level Gage Guide)[12.2014 - 10.2016] S500..5MT エコ楽モード |
96711-19009 |
from US $1.88 |
||
|
33124F
|
33124F
36187-B5020 Pipe, Oil Receiver, No.1(For Extension Housing)[12.2014 - 10.2016] S500..5MT エコ楽モード |
36187-B5020 |
US $4.80 |
||
|
33124G
|
33124G
36188-B5010 Pipe, Oil Receiver, No.2(For Extension Housing)[12.2014 - 10.2016] S500..5MT エコ楽モード |
36188-B5010 |
US $4.89 |
||
|
33141C
|
33141C
88364-B5010 Seal, Oil(For Extension Housing Rear)[12.2014 - 10.2016] S500..5MT エコ楽モード |
88364-B5010 |
US $11.07 |
||
|
33142
|
33142
33142-B5010 Gasket, Extension Housing(Mtm)[12.2014 - 10.2016] S500..5MT エコ楽モード |
33142-B5010 |
US $9.50 |
||
|
33145
|
33145
33151-B5020 Retainer, Extension Housing Dust Seal(Mtm)[12.2014 - 10.2016] S500..5MT エコ楽モード |
33151-B5020 |
US $17.47 |
||
|
33146
|
33146
33146-87504
Deflector, Extension Housing Dust(Mtm)
[09.2014 - 02.2015] S500..5MT |
33146-87504 |
— | ||
| replacement | |||||
|
33146
|
33146
33146-B5010 Deflector, Extension Housing Dust(Mtm)[09.2014 - 02.2015] S500..5MT |
33146-B5010 |
US $16.67 |
||
|
33146
|
33146
33146-B5010 Deflector, Extension Housing Dust(Mtm)[03.2015 - 10.2016] S500..5MT |
33146-B5010 |
US $16.67 |
||
|
33156
|
33156
33151-97501 Retainer, Output Shaft Rear Bearing(Mtm)[09.2014 - 10.2016] S500..5MT |
33151-97501 |
US $13.69 |
||
|
33156
|
33156
33151-97502 Retainer, Output Shaft Rear Bearing(Mtm)[12.2014 - 10.2016] S500..5MT エコ楽モード |
33151-97502 |
US $16.42 |
||
|
33283H
|
33283H
90341-16012 Plug(For Transmission Case)[09.2014 - 10.2016] S500..5MT |
90341-16012 |
US $4.66 |
||
|
33283T
|
33283T
90044-30178 Gasket, Transmission Case Plug[09.2014 - 10.2016] S500..5MT |
90044-30178 |
US $1.25 |
||
|
36117E
|
36117E
90043-13008 Seal, Oil(For Shift Lever No.2 Shaft)[12.2014 - 10.2016] S500..5MT エコ楽モード |
90043-13008 |
US $5.02 |
||
|
36117J
|
36117J
90042-54015 Pin, Straight[12.2014 - 10.2016] S500..5MT エコ楽モード |
90042-54015 |
US $2.04 |
||
|
36117K
|
36117K
90042-54007 Pin, Straight[12.2014 - 10.2016] S500..5MT エコ楽モード |
90042-54007 |
US $1.46 |
||
|
33801B5010
|
33801B5010
33801-B5010 New Genuine Part |
33801-B5010 |
US $17.04 |
||
|
36307B5010
|
36307B5010
36307-B5010 Lever Sub-Assy, High & Low Shift Inner |
36307-B5010 |
US $51.11 |
||
|
36312B5010
|
36312B5010
36312-B5010 Fork, Transfer Gear Shift, No.2 |
36312-B5010 |
US $72.80 |
||
|
36314B5020
|
36314B5020
36314-B5020 Shaft, Transfer High And Low Shift Fork |
36314-B5020 |
US $21.84 |
||
|
82715B5630
|
82715B5630
82715-B5630 Bracket,wiring Harness Clamp |
82715-B5630 |
US $8.74 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
1228287501
|
1228287501
12282-87501 Hanger, Transfer Case |
12282-87501 |
US $4.54 |
||
|
3632187507
|
3632187507
36321-87507
Lever, Transfer Shift
|
36321-87507 |
— | ||
|
3652487514
|
3652487514
36524-87514 Bracket, Transfer Control Cable |
36524-87514 |
US $10.19 |
||
|
9004201535
|
9004201535
90042-01535 New Genuine Part |
90042-01535 |
US $1.46 |
||
|
9004250157
|
9004250157
90042-50157 Pin, Straight(For Manual Transmission Case) |
90042-50157 |
from US $1.12 |
||
|
9004463273
|
9004463273
90044-63273 New Genuine Part |
90044-63273 |
US $2.18 |
||
|
9004523007
|
9004523007
90045-23007 Ring, E(For Clutch Release Cable) |
90045-23007 |
US $1.14 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.63 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.65 |
||
|
9161261040
|
9161261040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
