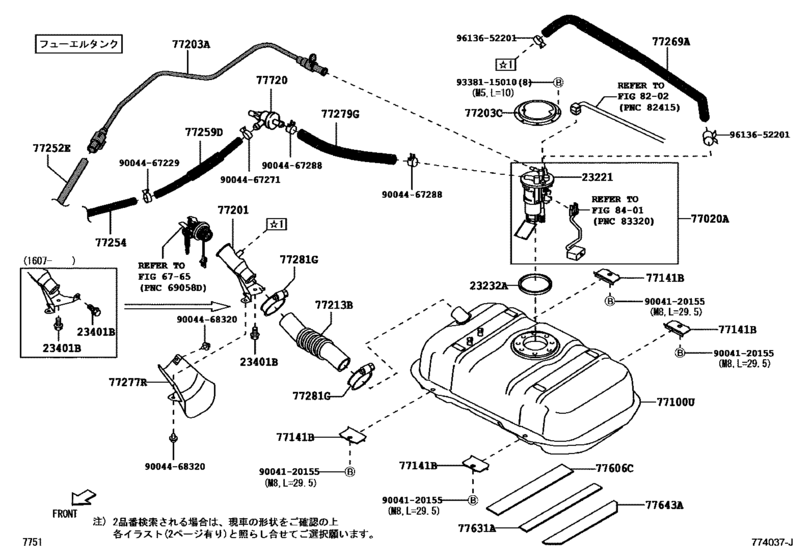

Fuel Tank & Tube ([11.2015 - ] ﾌｭｰｴﾙ ﾀﾝｸ (1511- )) Diagram Toyota PIXIS
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- S500U
- grade
- EXT
- body
- TR
- Roof
- SRF
- ENGINE
- KFVE
- TRANSMISSION
- MTM
- Model
- PIXIS TRUCK
- From
- 09.2014
- Gear Shift Type
- 5MT
- Drive Train
- 2WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23221
|
23221
23100-B5010 Pump, Fuel[09.2014 - 11.2015] KFVE..S500,510 |
23100-B5010 |
US $528.53 |
||
|
23221
|
23221
23100-B5020 Pump, Fuel[11.2015 - 10.2016] KFVE..S500,510 |
23100-B5020 |
US $525.62 |
||
|
23232A
|
23232A
23232-87401 Gasket, Fuel Pump Bracket[09.2014 - 10.2016] KFVE..S500,510 |
23232-87401 |
US $7.17 |
||
|
23401B
|
23401B
46791-B5110 Bolt[11.2015 - 07.2016] KFVE..S500,510 シールロック剤 塗布有り |
46791-B5110 |
US $2.33 |
||
|
23401B
|
23401B
91551-A0816 Bolt[07.2016 - 10.2016] KFVE..S500,510 シールロック剤 塗布無し |
91551-A0816 |
US $1.43 |
||
|
77020A
|
77020A
23210-B5020 Tube Assy, Fuel Suction W/pump & Gage[11.2015 - 10.2016] S500,510 |
23210-B5020 |
US $525.62 |
||
|
77020A
|
77020A
23210-B5050 Tube Assy, Fuel Suction W/pump & Gage[09.2014 - 11.2015] S500,510 |
23210-B5050 |
US $578.03 |
||
|
77100U
|
77100U
77001-B5170 Tank Sub-Assy, Fuel[09.2014 - 11.2015] S500,510 高さ＝２１０ ３８．１Ｌ,インレット パイプ一体 |
77001-B5170 |
US $368.37 |
||
|
77100U
|
77100U
77001-B5190 Tank Sub-Assy, Fuel[11.2015 - 10.2016] S500,510 高さ＝２０６ ３８Ｌ,インレット パイプ別体 |
77001-B5190 |
US $333.42 |
||
|
77141B
|
77141B
77141-B5010 Reinforcement, Fuel Tank Flange, No.1[09.2014 - 10.2016] S500,510 |
77141-B5010 |
US $17.81 |
||
|
77201
|
77201
77201-B5080 Pipe Sub-Assy, Fuel Tank Inlet[11.2015 - 07.2016] S500,510 |
77201-B5080 |
US $103.38 |
||
|
77201
|
77201
77201-B5081 Pipe Sub-Assy, Fuel Tank Inlet[07.2016 - 10.2016] S500,510 |
77201-B5081 |
US $103.38 |
||
| replacement | |||||
|
77201
|
77201
77201-B5082 Pipe Sub-Assy, Fuel Tank Inlet[07.2016 - 10.2016] S500,510 |
77201-B5082 |
US $103.38 |
||
|
77201
|
77201
77201-B5082 Pipe Sub-Assy, Fuel Tank Inlet[12.2016 -] S500,510 |
77201-B5082 |
US $103.38 |
||
|
77203A
|
77203A
77203-B5030 Tube Sub-Assy, Fuel Suction[09.2014 - 11.2015] S500,510 |
77203-B5030 |
US $25.77 |
||
|
77203A
|
77203A
77203-B5040 Tube Sub-Assy, Fuel Suction[11.2015 - 10.2016] S500,510 |
77203-B5040 |
US $25.77 |
||
|
77203C
|
77203C
23265-B5020 Bracket, Fuel Pump[09.2014 - 11.2015] S500,510 |
23265-B5020 |
US $21.99 |
||
|
77203C
|
77203C
23265-B5030 Bracket, Fuel Pump[11.2015 - 10.2016] S500,510 |
23265-B5030 |
US $22.13 |
||
|
77213B
|
77213B
77213-B5020 Hose, Fuel Tank To Filler Pipe[11.2015 - 10.2016] S500,510 |
77213-B5020 |
US $22.57 |
||
|
77252E
|
77252E
77251-B5050 Tube, Fuel Main, No.2 (For Front Fuel Main)[09.2014 - 10.2016] S500,510 |
77251-B5050 |
US $37.56 |
||
|
77254
|
77254
77263-B5030 Tube, Fuel Emission, No.1[09.2014 - 10.2016] S500,510 |
77263-B5030 |
US $23.30 |
||
|
77259D
|
77259D
77259-97502 Hose, Fuel, No.1[09.2014 - 10.2016] S500,510 |
77259-97502 |
US $7.43 |
||
|
77269A
|
77269A
77269-B5020 Hose, Fuel Tank Breather[09.2014 - 11.2015] S500,510 |
77269-B5020 |
US $26.50 |
||
|
77269A
|
77269A
77269-B5030 Hose, Fuel Tank Breather[11.2015 - 10.2016] S500,510 |
77269-B5030 |
US $24.17 |
||
|
77277R
|
77277R
77277-B5010 Protector, Fuel Tank Filler Pipe[11.2015 - 10.2016] S500,510 |
77277-B5010 |
US $9.03 |
||
|
77279G
|
77279G
77279-97501 Hose, Fuel, No.2[09.2014 - 11.2015] S500,510 |
77279-97501 |
US $10.34 |
||
|
77279G
|
77279G
77279-B5010 Hose, Fuel, No.2[11.2015 - 10.2016] S500,510 |
77279-B5010 |
US $10.92 |
||
|
77281G
|
77281G
90044-60129 Clamp Sub-Assy, Fuel Hose[11.2015 - 10.2016] S500,510 |
90044-60129 |
US $5.73 |
||
|
77606C
|
77606C
77632-87502 Protector, Fuel Tank, No.2[09.2014 - 10.2016] S500,510 |
77632-87502 |
US $8.12 |
||
|
77631A
|
77631A
77631-87507 Protector, Fuel Tank, Lower Center[09.2014 - 10.2016] S500,510 |
77631-87507 |
US $6.74 |
||
|
77643A
|
77643A
77633-97501 Protector, Fuel Tank, No.3[09.2014 - 10.2016] S500,510 |
77633-97501 |
US $5.92 |
||
|
77720
|
77720
77709-87510 Valve Sub-Assy, Safety[09.2014 - 10.2016] S500,510 |
77709-87510 |
US $57.80 |
||
|
9004120155
|
9004120155
90041-20155 New Genuine Part |
90041-20155 |
US $3.76 |
||
|
9004467229
|
9004467229
90044-67229 New Genuine Part |
90044-67229 |
US $3.76 |
||
|
9004467271
|
9004467271
90044-67271 Clip(For Actuator Hose) |
90044-67271 |
US $2.87 |
||
|
9004467288
|
9004467288
90044-67288 CLIP |
90044-67288 |
from US $0.82 |
||
|
9004468320
|
9004468320
90044-68320
Clip, Engine Under Cover, No.2
|
90044-68320 |
— | ||
| replacement | |||||
|
9004468320
|
9004468320
90044-68378 CLIP |
90044-68378 |
from US $0.57 |
||
|
9338115010
|
9338115010
93381-15010 SCREW |
93381-15010 |
US $1.08 |
||
|
9613652201
|
9613652201
96136-52201 Clip(For Ventilation Hose No.2) |
96136-52201 |
from US $2.89 |
||
