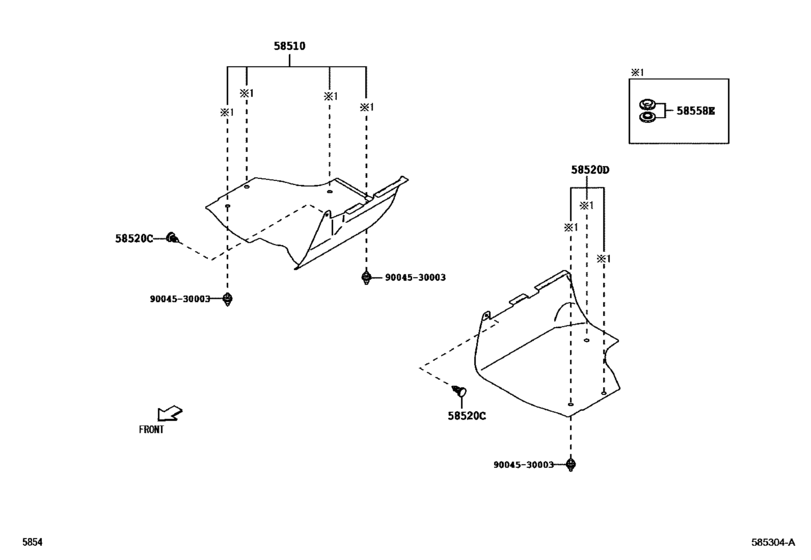

Floor Mat & Silencer Pad ([09.2014 - ] (1409- )) Diagram Toyota PIXIS
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- S500U
- grade
- SPL
- body
- TR
- Roof
- SRF
- ENGINE
- KFVE
- TRANSMISSION
- ATM
- Model
- PIXIS TRUCK
- From
- 09.2014
- Gear Shift Type
- 4AT
- Drive Train
- 2WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58510
|
58510
58510-B5190-B0 Mat Assy, Front Floor, Front No.1[09.2014 - 10.2016] S500,510..4AT -,TRIM1# |
58510-B5190-B0 |
US $138.32 |
||
|
58520C
|
58520C
90044-68046-B2 Clip, Rear Floor Board[09.2014 - 10.2016] S500,510 DK.GRAY,TRIM1# |
90044-68046-B2 |
US $3.58 |
||
|
58520C
|
58520C
90044-68046-C2 Clip, Rear Floor Board[11.2016 -] S500,510 BLACK,TRIM1#,2# |
90044-68046-C2 |
US $3.94 |
||
|
58520D
|
58520D
58520-B5040-B0 Mat Assy, Front Floor, Front No.2[09.2014 - 10.2016] S500,510 -,TRIM1# |
58520-B5040-B0 |
US $123.76 |
||
|
58558E
|
58558E
58558-87501-B2 Fastener, Pile[09.2014 - 10.2016] S500,510 DK.GRAY,TRIM1# |
58558-87501-B2 |
US $1.60 |
||
|
9004530003
|
9004530003
90045-30003 Clip(For Front Floor Rear Carpet) |
90045-30003 |
US $1.10 |
