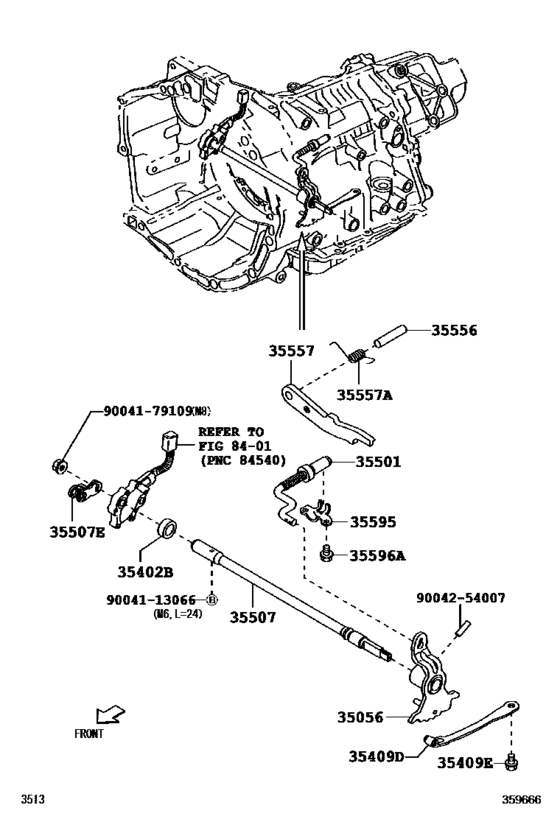

Throttle Link & Valve Lever (Atm) ([09.2014 - ] (1409- )4AT) Diagram Toyota PIXIS
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- S500U
- grade
- SPL
- body
- TR
- Roof
- SRF
- ENGINE
- KFVE
- TRANSMISSION
- ATM
- Model
- PIXIS TRUCK
- From
- 09.2014
- Gear Shift Type
- 4AT
- Drive Train
- 2WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35056
|
35056
35057-B1010 Lever Sub-Assy, Parking Lock W/roller[09.2014 - 10.2016] S500,510..4AT |
35057-B1010 |
US $28.25 |
||
|
35402B
|
35402B
90043-11256 Seal, Transmission Case Dust[09.2014 - 10.2016] S500,510..4AT |
90043-11256 |
from US $3.63 |
||
|
35409D
|
35409D
35409-B1020 Spring Sub-Assy, Manual Detent[09.2014 - 10.2016] S500,510..4AT |
35409-B1020 |
US $12.38 |
||
|
35409E
|
35409E
90041-05511 Bolt(For Manual Detent Spring)[09.2014 - 10.2016] S500,510..4AT Ｍ６，Ｌ＝３０ |
90041-05511 |
US $2.04 |
||
|
35501
|
35501
35501-B1020 Rod Sub-Assy, Parking Lock[09.2014 - 08.2015] S500,510..4AT |
35501-B1020 |
US $29.56 |
||
| replacement | |||||
|
35501
|
35501
35501-B5010 Rod Sub-Assy, Parking Lock[09.2014 - 08.2015] S500,510..4AT |
35501-B5010 |
US $26.94 |
||
|
35501
|
35501
35501-B1021 Rod Sub-Assy, Parking Lock[09.2015 - 04.2016] S500,510..4AT |
35501-B1021 |
US $26.94 |
||
| replacement | |||||
|
35501
|
35501
35501-B5010 Rod Sub-Assy, Parking Lock[09.2015 - 04.2016] S500,510..4AT |
35501-B5010 |
US $26.94 |
||
|
35501
|
35501
35501-B5010 Rod Sub-Assy, Parking Lock[05.2016 - 10.2016] S500,510..4AT |
35501-B5010 |
US $26.94 |
||
|
35507
|
35507
33511-B1010 Shaft Sub-Assy, Transmission Control Intermediate[09.2014 - 10.2016] S500,510..4AT |
33511-B1010 |
US $57.08 |
||
|
35507E
|
35507E
35507-B1030 Lever, Transmission Control Shaft[09.2014 - 10.2016] S500,510..4AT |
35507-B1030 |
US $12.96 |
||
|
35556
|
35556
35556-87502 Shaft, Parking Lock Pawl[09.2014 - 10.2016] S500,510..4AT |
35556-87502 |
US $4.66 |
||
|
35557
|
35557
35557-B1020 Pawl, Parking Lock[09.2014 - 10.2016] S500,510..4AT |
35557-B1020 |
US $17.47 |
||
|
35557A
|
35557A
90045-08419 Spring, Torsion (For Manual Valve Lever)[09.2014 - 10.2016] S500,510..4AT |
90045-08419 |
US $2.77 |
||
|
35595
|
35595
35595-B1020 Bracket, Parking Lock Pawl[09.2014 - 10.2016] S500,510..4AT |
35595-B1020 |
from US $8.57 |
||
|
35596A
|
35596A
90041-05412 Bolt (For Pawl Stopper Plate)[09.2014 - 10.2016] S500,510..4AT Ｍ８，Ｌ＝２０ |
90041-05412 |
US $2.18 |
||
|
9004113066
|
9004113066
90041-13066 New Genuine Part |
90041-13066 |
US $1.60 |
||
|
9004179109
|
9004179109
90041-79109 New Genuine Part |
90041-79109 |
US $1.31 |
||
|
9004254007
|
9004254007
90042-54007 Pin, Straight |
90042-54007 |
US $1.46 |
||
