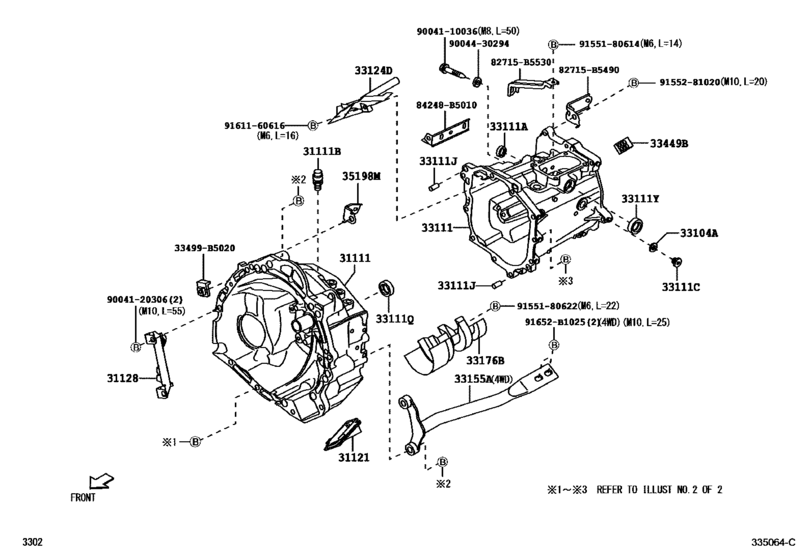

Clutch Housing & Transmission Case (Mtm) ([09.2014 - ] (1409- )5MT) Diagram Toyota PIXIS
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- S510U
- grade
- EXT
- body
- TR
- Roof
- SRF
- ENGINE
- KFVE
- TRANSMISSION
- MTM
- Model
- PIXIS TRUCK
- From
- 09.2014
- Gear Shift Type
- 5MT
- Drive Train
- 4WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-B5030 Housing, Clutch[09.2014 - 10.2016] S500,510..5MT |
31111-B5030 |
US $349.44 |
||
|
31111B
|
31111B
90049-15026 Plug(For Clutch Housing)[09.2014 - 10.2016] S500,510..5MT |
90049-15026 |
from US $1.16 |
||
|
31121
|
31121
31121-87504 Cover, Clutch Housing, No.1[09.2014 - 07.2016] S500,510..5MT |
31121-87504 |
US $9.61 |
||
| replacement | |||||
|
31121
|
31121
31121-B5020 Cover, Clutch Housing, No.1[09.2014 - 07.2016] S500,510..5MT |
31121-B5020 |
US $13.62 |
||
|
31121
|
31121
31121-B5020 Cover, Clutch Housing, No.1[08.2016 - 10.2016] S500,510..5MT |
31121-B5020 |
US $13.62 |
||
|
31128
|
31128
31128-B5020 Cover, Clutch Housing Under[09.2014 - 10.2016] S500,510..5MT |
31128-B5020 |
US $25.77 |
||
|
33104A
|
33104A
90044-30186 Gasket, Drain Plug(Mtm)[09.2014 - 10.2016] S500,510..5MT 穴塞ぎ用 |
90044-30186 |
US $1.79 |
||
|
33111
|
33111
33111-B5020 Case, Manual Transmission[09.2014 - 10.2016] S500,510..5MT |
33111-B5020 |
US $525.62 |
||
|
33111A
|
33111A
90043-31025 Plug, Manual Transmission Case[09.2014 - 10.2016] S500,510..5MT |
90043-31025 |
US $3.14 |
||
|
33111C
|
33111C
90043-41085 Plug(For Transmission Case)[09.2014 - 10.2016] S500,510..5MT 穴塞ぎ用 |
90043-41085 |
US $3.84 |
||
|
33111J
|
33111J
90042-50157 Pin, Straight(For Manual Transmission Case)[09.2014 - 10.2016] S500,510..5MT 長さ＝２５，外径＝１０ |
90042-50157 |
from US $1.12 |
||
|
33111Q
|
33111Q
90043-10051 Seal, Oil, No.2(For Transaxle Case)[09.2014 - 10.2016] S500,510..5MT |
90043-10051 |
US $4.84 |
||
|
33111Y
|
33111Y
90043-11308 Seal, Oil(For Transmission Case)[09.2014 - 10.2016] S500,510..5MT |
90043-11308 |
US $6.81 |
||
|
33124D
|
33124D
33124-B5020 Pipe, Oil Receiver, No.2(Mtm)[09.2014 - 10.2016] S510..5MT |
33124-B5020 |
US $28.10 |
||
|
33155A
|
33155A
36119-B5040 Stiffener, Power Train[09.2014 - 10.2016] S510..5MT |
36119-B5040 |
US $38.29 |
||
|
33176B
|
33176B
33176-B5010 Separator, Transmission Oil(Mtm)[09.2014 - 10.2016] S500,510..5MT |
33176-B5010 |
US $11.94 |
||
|
33449B
|
33449B
33449-87501 Magnet, Transmission[09.2014 - 10.2016] S500,510..5MT |
33449-87501 |
US $4.19 |
||
|
35198M
|
35198M
82715-B5500 Bracket, Wire Harness Clamp[09.2014 - 10.2016] S500,510..5MT |
82715-B5500 |
US $5.68 |
||
|
33499B5020
|
33499B5020
33499-B5020 New Genuine Part |
33499-B5020 |
US $4.22 |
||
|
82715B5490
|
82715B5490
82715-B5490 Bracket,wiring Harness Clamp |
82715-B5490 |
US $8.74 |
||
|
82715B5530
|
82715B5530
82715-B5530 Bracket,wiring Harness Clamp |
82715-B5530 |
US $11.94 |
||
|
84248B5010
|
84248B5010
84248-B5010 Clamp, Center Cluster Module Switch Harness |
84248-B5010 |
US $7.13 |
||
|
91652B1025
|
91652B1025
91652-B1025
Bolt, No.1 (For Center Support Bearing)
|
91652-B1025 |
— | ||
| replacements | |||||
|
91652B1025
|
91652B1025
91651-B1025 Bolt, Winch R0Ller Bracket |
91651-B1025 |
US $1.38 |
||
|
91652B1025
|
91652B1025
55539-52060
Cover, Spare Switch Hole
|
55539-52060 |
— | ||
|
9004110036
|
9004110036
90041-10036 New Genuine Part |
90041-10036 |
US $3.49 |
||
|
9004120306
|
9004120306
90041-20306 New Genuine Part |
90041-20306 |
US $2.06 |
||
|
9004430294
|
9004430294
90044-30294 New Genuine Part |
90044-30294 |
US $2.04 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.65 |
||
|
9155180622
|
9155180622
91551-80622 BOLT FLANGE |
91551-80622 |
US $1.08 |
||
|
9155281020
|
9155281020
91552-81020 Bolt(For Alternator) |
91552-81020 |
US $1.79 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
