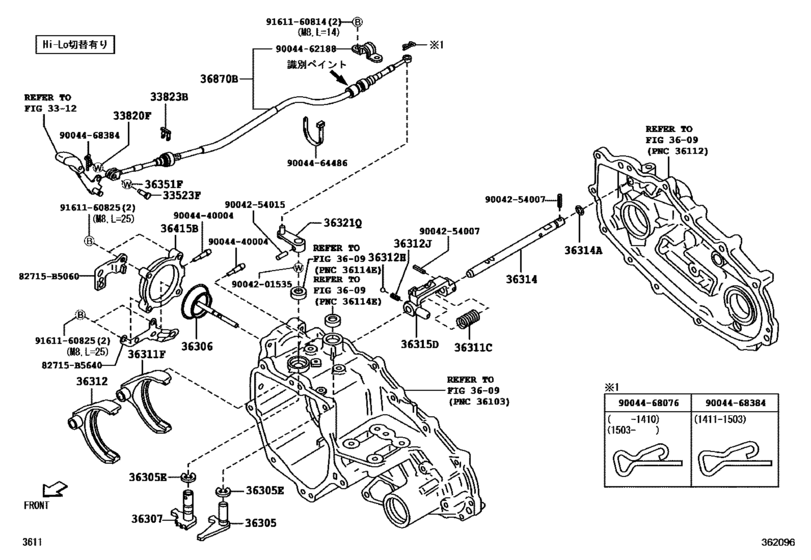

Transfer Lever & Shift Rod ([09.2014 - ] (1409- )5MT) Diagram Toyota PIXIS
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- S510U
- grade
- EXT
- body
- TR
- Roof
- SRF
- ENGINE
- KFVE
- TRANSMISSION
- MTM
- Model
- PIXIS TRUCK
- From
- 09.2014
- Gear Shift Type
- 5MT
- Drive Train
- 4WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33523F
|
33523F
90042-41085 Pin, Shift Lever (For Transfer)[09.2014 - 10.2016] S510..EXT..5MT; S510..SPL..5MT 農用スペシャル |
90042-41085 |
US $1.75 |
||
|
33820F
|
33820F
90042-02110 Washer, Plate (For Transfer Control Cable)[09.2014 - 10.2016] S510..EXT..5MT; S510..SPL..5MT 農用スペシャル |
90042-02110 |
US $2.04 |
||
|
33823B
|
33823B
33837-B5010 Bracket, Transfer Control Cable[09.2014 - 10.2016] S510..EXT..5MT; S510..SPL..5MT 農用スペシャル |
33837-B5010 |
US $4.08 |
||
|
36305
|
36305
36305-87502 Lever Sub-Assy, Front Drive Shift Link[09.2014 - 10.2016] S510 |
36305-87502 |
US $32.50 |
||
|
36305E
|
36305E
90045-23007 Ring, E(For Clutch Release Cable)[09.2014 - 10.2016] S510..EXT..5MT; S510..SPL..5MT 農用スペシャル |
90045-23007 |
US $1.14 |
||
|
36306
|
36306
36306-87508 Shaft Sub-Assy, Control[09.2014 - 10.2016] S510..EXT;S510..SPL..4AT; S510..SPL..5MT 農用スペシャル |
36306-87508 |
US $38.96 |
||
|
36307
|
36307
36307-87502 Lever Sub-Assy, High & Low Shift Inner[09.2014 - 10.2016] S510..EXT..5MT; S510..SPL..5MT 農用スペシャル |
36307-87502 |
US $51.11 |
||
|
36311C
|
36311C
90045-01673 Spring, Compresion (For Shift Fork)[09.2014 - 10.2016] S510 |
90045-01673 |
US $4.08 |
||
|
36311F
|
36311F
36311-B5010 Fork, Transfer Gear Shift, No.1[09.2014 - 10.2016] S510 |
36311-B5010 |
US $54.02 |
||
|
36312
|
36312
36312-87508 Fork, Transfer Gear Shift, No.2[09.2014 - 10.2016] S510..EXT..5MT; S510..SPL..5MT 農用スペシャル |
36312-87508 |
US $43.53 |
||
|
36312H
|
36312H
90043-60003 Ball, Shaft Detent[09.2014 - 10.2016] S510 |
90043-60003 |
US $1.31 |
||
|
36312J
|
36312J
90045-01267 Spring, Compression (For Transfer Gear Shift Fork No.2)[09.2014 - 10.2016] S510 |
90045-01267 |
US $1.75 |
||
|
36314
|
36314
36314-87507 Shaft, Transfer High And Low Shift Fork[09.2014 - 10.2016] S510..EXT;S510..SPL..4AT; S510..SPL..5MT 農用スペシャル |
36314-87507 |
US $35.24 |
||
|
36314A
|
36314A
96711-19009 Ring, O(For Oil Level Gage Guide)[09.2014 - 10.2016] S510 |
96711-19009 |
from US $1.88 |
||
|
36315D
|
36315D
36316-87505 Head, Transfer Gear Shift, No.1[09.2014 - 10.2016] S510 |
36316-87505 |
US $57.08 |
||
|
36321Q
|
36321Q
36321-87507
Lever, Transfer Shift
[09.2014 - 10.2016] S510..EXT..5MT; S510..SPL..5MT 農用スペシャル |
36321-87507 |
— | ||
|
36351F
|
36351F
90042-06048 Washer, Wave (For Transfer Shift Rod)[09.2014 - 10.2016] S510..EXT..5MT; S510..SPL..5MT 農用スペシャル |
90042-06048 |
US $2.33 |
||
|
36415B
|
36415B
36415-87501 Cover, Diaphragm Cylinder[09.2014 - 10.2016] S510 |
36415-87501 |
US $26.64 |
||
|
36870B
|
36870B
36870-B5020 Cable Assy, Transfer Control[09.2014 - 11.2014] S510..EXT..5MT; S510..SPL..5MT 農用スペシャル |
36870-B5020 |
US $148.51 |
||
|
36870B
|
36870B
36870-B5040 Cable Assy, Transfer Control[11.2014 - 10.2016] S510..EXT..5MT; S510..SPL..5MT 農用スペシャル |
36870-B5040 |
US $135.41 |
||
|
82715B5060
|
82715B5060
82715-B5060 Bracket,wiring Harness Clamp |
82715-B5060 |
US $3.06 |
||
|
82715B5640
|
82715B5640
82715-B5640 Bracket,wiring Harness Clamp |
82715-B5640 |
US $8.74 |
||
|
9004201535
|
9004201535
90042-01535 New Genuine Part |
90042-01535 |
US $1.46 |
||
|
9004254007
|
9004254007
90042-54007 Pin, Straight |
90042-54007 |
US $1.46 |
||
|
9004254015
|
9004254015
90042-54015 Pin, Straight |
90042-54015 |
US $2.04 |
||
|
9004440004
|
9004440004
90044-40004 Tube, Suction |
90044-40004 |
US $2.62 |
||
|
9004462188
|
9004462188
90044-62188 New Genuine Part |
90044-62188 |
US $6.55 |
||
|
9004464486
|
9004464486
90044-64486 New Genuine Part |
90044-64486 |
US $3.35 |
||
|
9004468076
|
9004468076
90044-68076 Clip(For Push Rod Clevis Pin) |
90044-68076 |
US $3.40 |
||
| replacement | |||||
|
9004468076
|
9004468076
90044-68337 Clip(For Push Rod Clevis Pin) |
90044-68337 |
US $2.34 |
||
|
9004468384
|
9004468384
90044-68384 New Genuine Part |
90044-68384 |
US $1.60 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
