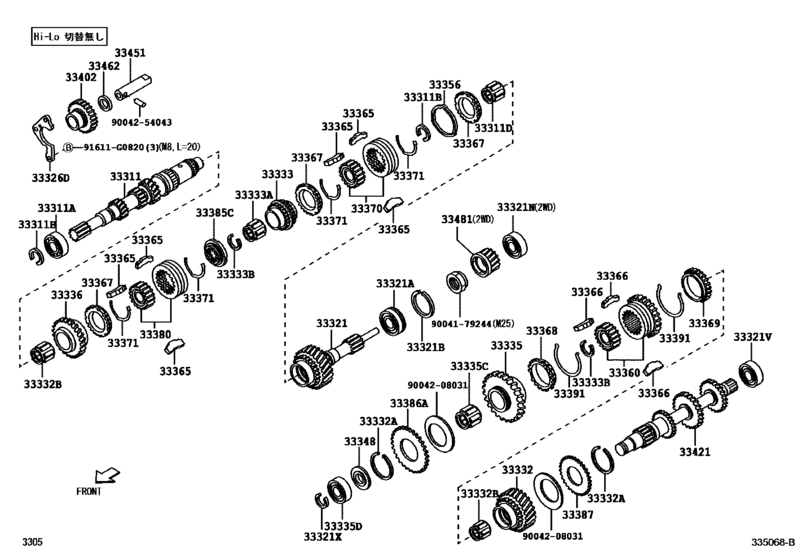

Transmission Gear (Mtm) ([09.2014 - ] HI-LO ｷﾘｶｴﾅｼ (1409- )5MT) Diagram Toyota PIXIS
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- S510U
- grade
- EXT
- body
- TR
- Roof
- SRF
- ENGINE
- KFVE
- TRANSMISSION
- MTM
- Model
- PIXIS TRUCK
- From
- 09.2014
- Gear Shift Type
- 5MT
- Drive Train
- 4WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33311
|
33311
33311-B5030 Shaft, Input[09.2014 - 10.2016] S500,510..5MT |
33311-B5030 |
US $257.71 |
||
|
33311A
|
33311A
90043-63227 Bearing (For Input Shaft Front)[09.2014 - 10.2016] S500,510..5MT |
90043-63227 |
US $12.93 |
||
|
33311B
|
33311B
90045-20271 Ring, Shaft Snap (For Front Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝２．０６ |
90045-20271 |
US $4.51 |
||
|
33311B
|
33311B
90045-20272 Ring, Shaft Snap (For Front Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝２．０２ |
90045-20272 |
US $4.51 |
||
|
33311B
|
33311B
90045-20273 Ring, Shaft Snap (For Front Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．９８ |
90045-20273 |
US $4.51 |
||
|
33311B
|
33311B
90045-20274 Ring, Shaft Snap (For Front Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．９４ |
90045-20274 |
US $4.51 |
||
|
33311B
|
33311B
90045-20275 Ring, Shaft Snap (For Front Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．９０ |
90045-20275 |
US $4.51 |
||
|
33311B
|
33311B
90045-20276 Ring, Shaft Snap (For Front Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．８６ |
90045-20276 |
US $4.51 |
||
|
33311B
|
33311B
90045-20277 Ring, Shaft Snap (For Front Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．８２ |
90045-20277 |
US $4.51 |
||
|
33311B
|
33311B
90045-20278 Ring, Shaft Snap (For Front Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．７８ |
90045-20278 |
US $4.51 |
||
|
33311D
|
33311D
90043-64134 Bearing, Input Shaft[09.2014 - 10.2016] S500,510..5MT |
90043-64134 |
US $9.17 |
||
|
33321
|
33321
33321-87528 Shaft, Output[09.2014 - 10.2016] S510..EXT..5MT; S510..SPL..5MT 農用スペシャル |
33321-87528 |
US $186.37 |
||
|
33321A
|
33321A
90043-63234 Bearing (For Output Shaft Rear)[09.2014 - 10.2016] S500,510..5MT |
90043-63234 |
US $14.15 |
||
|
33321B
|
33321B
90045-21157 Ring, Shaft Snap (For Output Shaft Bearing)[09.2014 - 10.2016] S500,510..5MT |
90045-21157 |
US $5.94 |
||
|
33321V
|
33321V
90043-63283 Bearing (For Output Shaft Center)[09.2014 - 10.2016] S500,510..5MT |
90043-63283 |
US $8.04 |
||
|
33321X
|
33321X
90045-20279 Ring, Shaft Snap (For Output Shaft Center Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝２．０６ |
90045-20279 |
US $3.79 |
||
|
33321X
|
33321X
90045-20280 Ring, Shaft Snap (For Output Shaft Center Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝２．０２ |
90045-20280 |
US $3.79 |
||
|
33321X
|
33321X
90045-20281 Ring, Shaft Snap (For Output Shaft Center Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．９８ |
90045-20281 |
US $3.79 |
||
|
33321X
|
33321X
90045-20282 Ring, Shaft Snap (For Output Shaft Center Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．９４ |
90045-20282 |
US $3.79 |
||
|
33321X
|
33321X
90045-20283 Ring, Shaft Snap (For Output Shaft Center Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．９０ |
90045-20283 |
US $3.79 |
||
|
33321X
|
33321X
90045-20284 Ring, Shaft Snap (For Output Shaft Center Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．８６ |
90045-20284 |
US $3.79 |
||
|
33321X
|
33321X
90045-20285 Ring, Shaft Snap (For Output Shaft Center Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．８２ |
90045-20285 |
US $3.79 |
||
|
33321X
|
33321X
90045-20286 Ring, Shaft Snap (For Output Shaft Center Bearing)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．７８ |
90045-20286 |
US $3.79 |
||
|
33326D
|
33326D
33326-87501 Plate, Bearing Lock[09.2014 - 10.2016] S500,510..5MT |
33326-87501 |
US $8.01 |
||
|
33332
|
33332
33332-B5020 Gear, 2Nd[09.2014 - 10.2016] S500,510..5MT |
33332-B5020 |
US $110.66 |
||
|
33332A
|
33332A
90045-20107 Ring, Shaft Snap (For 2Nd Gear)[09.2014 - 10.2016] S500,510..5MT |
90045-20107 |
US $2.97 |
||
|
33332B
|
33332B
90043-64119 Bearing, Input Shaft[09.2014 - 10.2016] S500,510..5MT ＮＴＮ |
90043-64119 |
US $5.59 |
||
|
33332B
|
33332B
90043-64130 Bearing, Needle Roller (For 2Nd Gear)[09.2014 - 10.2016] S500,510..5MT ＫＯＹＯ |
90043-64130 |
US $5.94 |
||
|
33333
|
33333
33333-87517 Gear, 3Rd[09.2014 - 10.2016] S500,510..5MT |
33333-87517 |
US $91.73 |
||
|
33333A
|
33333A
90043-64136 Bearing, Needle Roller (For 3Rd Gear)[09.2014 - 10.2016] S500,510..5MT |
90043-64136 |
US $11.79 |
||
|
33333B
|
33333B
90045-20263 Ring, Shaft Snap (For 3Rd Rear)[09.2014 - 10.2016] S500,510..5MT 厚さ＝２．０６ |
90045-20263 |
US $5.39 |
||
|
33333B
|
33333B
90045-20264 Ring, Shaft Snap (For 3Rd Rear)[09.2014 - 10.2016] S500,510..5MT 厚さ＝２．０２ |
90045-20264 |
US $5.39 |
||
|
33333B
|
33333B
90045-20265 Ring, Shaft Snap (For 3Rd Rear)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．９８ |
90045-20265 |
US $5.39 |
||
|
33333B
|
33333B
90045-20266 Ring, Shaft Snap (For 3Rd Rear)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．９４ |
90045-20266 |
US $5.39 |
||
|
33333B
|
33333B
90045-20267 Ring, Shaft Snap (For 3Rd Rear)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．９０ |
90045-20267 |
US $5.39 |
||
|
33333B
|
33333B
90045-20268 Ring, Shaft Snap (For 3Rd Rear)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．８６ |
90045-20268 |
US $5.39 |
||
|
33333B
|
33333B
90045-20269 Ring, Shaft Snap (For 3Rd Rear)[09.2014 - 10.2016] S500,510..5MT 厚さ＝１．８２ |
90045-20269 |
US $5.39 |
||
|
33333B
|
33333B
90045-20270 Ring, Shaft Snap (For 3Rd Rear)[09.2014 - 10.2016] S500,510..5MT 厚さ＝２．１０ |
90045-20270 |
US $5.39 |
||
|
33335
|
33335
33335-87518 Gear, 1St[09.2014 - 10.2016] S500,510..5MT |
33335-87518 |
US $103.38 |
||
|
33335C
|
33335C
90043-64034 Bearing, Needle Roller(For 1St Gear)[09.2014 - 10.2016] S500,510..5MT |
90043-64034 |
US $6.70 |
||
|
33335D
|
33335D
90043-63391 Bearing(For 1St Gear)[09.2014 - 10.2016] S500,510..5MT |
90043-63391 |
US $9.96 |
||
|
33336
|
33336
33336-B5020 Gear, 5Th[09.2014 - 10.2016] S500,510..5MT |
33336-B5020 |
US $97.55 |
||
|
33348
|
33348
33348-87508 Washer, 1St Gear Thrust[09.2014 - 10.2016] S500,510..5MT |
33348-87508 |
US $10.19 |
||
|
33356
|
33356
33356-87501 Spring, Wave[09.2014 - 10.2016] S500,510..5MT |
33356-87501 |
US $5.24 |
||
|
33360
|
33360
33360-87512 Hub Assy, Synchronizer, No.1[09.2014 - 10.2016] S500,510..5MT |
33360-87512 |
US $177.63 |
||
|
33365
|
33365
33365-87702 Key, Synchromesh Shifting, No.1[09.2014 - 10.2016] S500,510..5MT |
33365-87702 |
US $3.58 |
||
|
33366
|
33366
33366-87505 Key, Synchromesh Shifting, No.2[09.2014 - 10.2016] S500,510..5MT |
33366-87505 |
US $3.76 |
||
|
33367
|
33367
33367-87507 Ring, Synchronizer, No.1[09.2014 - 10.2016] S500,510..5MT |
33367-87507 |
from US $19.27 |
||
|
33368
|
33368
33368-87509 Ring, Synchronizer, No.2[09.2014 - 10.2016] S500,510..5MT |
33368-87509 |
US $36.69 |
||
|
33369
|
33369
33369-87703 Ring, Synchronizer, No.2[09.2014 - 10.2016] S500,510..5MT |
33369-87703 |
US $61.85 |
||
|
33370
|
33370
33370-B5010 Hub Assy, Synchronizer, No.2[09.2014 - 10.2016] S500,510..5MT |
33370-B5010 |
US $152.88 |
||
|
33371
|
33371
33371-87505 Spring, Synchromesh Shifting Key, No.1[09.2014 - 10.2016] S500,510..5MT |
33371-87505 |
from US $0.63 |
||
|
33380
|
33380
33380-B5010 Hub Assy, Synchronizer, No.3[09.2014 - 10.2016] S500,510..5MT |
33380-B5010 |
US $152.88 |
||
|
33385C
|
33385C
33385-87504 Retainer, Shifting Key[09.2014 - 10.2016] S500,510..5MT |
33385-87504 |
US $6.70 |
||
|
33386A
|
33386A
33386-87502 Sub-Gear, 1St[09.2014 - 10.2016] S500,510..5MT |
33386-87502 |
US $13.54 |
||
|
33387
|
33387
33387-87502 Sub-Gear, No.2[09.2014 - 10.2016] S500,510..5MT |
33387-87502 |
US $10.05 |
||
|
33391
|
33391
33391-87701 Spring, Synchromesh Shifting Key, No.1[09.2014 - 10.2016] S500,510..5MT |
33391-87701 |
US $3.05 |
||
|
33402
|
33402
33402-B0020 Gear Sub-Assy, Reverse Idler[09.2014 - 10.2016] S500,510..5MT |
33402-B0020 |
US $90.85 |
||
|
33421
|
33421
33421-B5020 Gear, Counter[09.2014 - 10.2016] S500,510..5MT |
33421-B5020 |
US $318.86 |
||
|
33451
|
33451
33451-87504 Shaft, Reverse Idler Gear[09.2014 - 10.2016] S500,510..5MT |
33451-87504 |
US $20.97 |
||
|
33462
|
33462
33462-87501 Washer, Reverse Idler Thrust[09.2014 - 10.2016] S500,510..5MT |
33462-87501 |
US $1.89 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9004179244
|
9004179244
90041-79244 Nut(For Transfer Output Rear Shaft) |
90041-79244 |
US $7.57 |
||
|
9004208031
|
9004208031
90042-08031 New Genuine Part |
90042-08031 |
US $3.03 |
||
|
9004254043
|
9004254043
90042-54043 Pin, Slotted Spring (For Reverse Idler Gear Shaft) |
90042-54043 |
US $3.64 |
