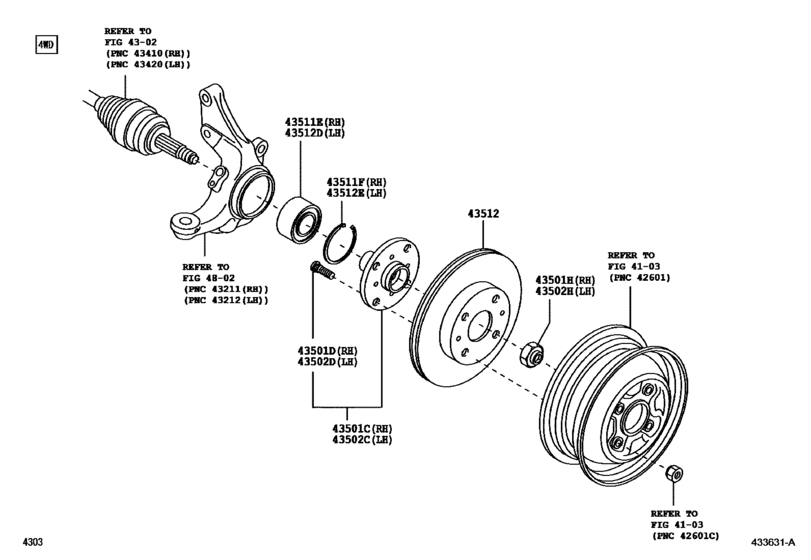

Front Axle Hub ([09.2014 - 10.2016] (1409-1610)S510) Diagram Toyota PIXIS
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- S510U
- grade
- SPL
- body
- TR
- Roof
- SRF
- ENGINE
- KFVE
- TRANSMISSION
- MTM
- Model
- PIXIS TRUCK
- From
- 09.2014
- Gear Shift Type
- 5MT
- Drive Train
- 4WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43502-B5020 Hub Sub-Assy, Front Axle, Rh[09.2014 - 10.2016] S510 |
43502-B5020 |
US $109.88 |
||
|
43501D
|
43501D
90049-12056 Bolt, Hub (For Rear Axle)[09.2014 - 10.2016] S500,510 Ｍ１２，Ｌ＝３９ |
90049-12056 |
from US $4.29 |
||
|
43501H
|
43501H
90041-79274 Nut (For Front Axle Shaft Rh)[09.2014 - 10.2016] S510 Ｍ２０ |
90041-79274 |
US $8.78 |
||
|
43502C
|
43502C
43502-B5020 Hub Sub-Assy, Front Axle, Rh[09.2014 - 10.2016] S510 |
43502-B5020 |
US $109.88 |
||
|
43502D
|
43502D
90049-12056 Bolt, Hub (For Rear Axle)[09.2014 - 10.2016] S500,510 Ｍ１２，Ｌ＝３９ |
90049-12056 |
from US $4.29 |
||
|
43502H
|
43502H
90041-79274 Nut (For Front Axle Shaft Rh)[09.2014 - 10.2016] S510 Ｍ２０ |
90041-79274 |
US $8.78 |
||
|
43511E
|
43511E
43560-B1011
Bearing (For Front Axle Hub Rh)
[11.2015 - 10.2016] S500,510 ＡＢＳ有り |
43560-B1011 |
— | ||
| replacements | |||||
|
43511E
|
43511E
43560-B6010
Bearing (For Front Axle Hub)
[11.2015 - 10.2016] S500,510 ＡＢＳ有り |
43560-B6010 |
— | ||
| replacement | |||||
|
43511E
|
43511E
43560-B6011 Bearing (For Front Axle Hub)[11.2015 - 10.2016] S500,510 ＡＢＳ有り |
43560-B6011 |
US $69.22 |
||
|
43511E
|
43511E
43560-B6011 Bearing (For Front Axle Hub)[11.2015 - 10.2016] S500,510 ＡＢＳ有り |
43560-B6011 |
US $69.22 |
||
|
43511E
|
43511E
43560-B5010 Bearing (For Front Axle Hub Rh)[09.2014 - 11.2015] S500,510 ＡＢＳ有り |
43560-B5010 |
US $83.16 |
||
|
43511E
|
43511E
43560-B6010
Bearing (For Front Axle Hub)
[02.2017 - 11.2017] S500,510 ＡＢＳ有り |
43560-B6010 |
— | ||
| replacement | |||||
|
43511E
|
43511E
43560-B6011 Bearing (For Front Axle Hub)[02.2017 - 11.2017] S500,510 ＡＢＳ有り |
43560-B6011 |
US $69.22 |
||
|
43511E
|
43511E
90043-63303 Bearing (For Front Axle Hub Rh)[09.2014 - 11.2015] S500,510 |
90043-63303 |
US $75.60 |
||
|
43511E
|
43511E
90043-63409 Bearing (For Front Axle Hub Rh)[11.2015 - 10.2016] S500,510 |
90043-63409 |
US $77.17 |
||
|
43511F
|
43511F
90045-21111 Ring, Hole Snap (For Front Axle Hub Rh)[11.2015 - 10.2016] S500,510 |
90045-21111 |
from US $1.08 |
||
|
43511F
|
43511F
90045-21163 Ring, Hole Snap (For Front Axle Hub)[09.2014 - 11.2015] S500,510 |
90045-21163 |
US $11.65 |
||
|
43512
|
43512
43512-97503
Disc, Front
[09.2014 - 09.2015] S500,510 塗装有り（単品） |
43512-97503 |
— | ||
| replacement | |||||
|
43512
|
43512
43512-B5050 Disc, Front[09.2014 - 09.2015] S500,510 塗装有り（単品） |
43512-B5050 |
US $116.44 |
||
|
43512
|
43512
43512-B5050 Disc, Front[10.2015 - 10.2016] S500,510 塗装有り（単品） |
43512-B5050 |
US $116.44 |
||
|
43512D
|
43512D
43560-B1011
Bearing (For Front Axle Hub Rh)
[11.2015 - 10.2016] S500,510 ＡＢＳ有り |
43560-B1011 |
— | ||
| replacements | |||||
|
43512D
|
43512D
43560-B6010
Bearing (For Front Axle Hub)
[11.2015 - 10.2016] S500,510 ＡＢＳ有り |
43560-B6010 |
— | ||
| replacement | |||||
|
43512D
|
43512D
43560-B6011 Bearing (For Front Axle Hub)[11.2015 - 10.2016] S500,510 ＡＢＳ有り |
43560-B6011 |
US $69.22 |
||
|
43512D
|
43512D
43560-B6011 Bearing (For Front Axle Hub)[11.2015 - 10.2016] S500,510 ＡＢＳ有り |
43560-B6011 |
US $69.22 |
||
|
43512D
|
43512D
43560-B5010 Bearing (For Front Axle Hub Rh)[09.2014 - 11.2015] S500,510 ＡＢＳ有り |
43560-B5010 |
US $83.16 |
||
|
43512D
|
43512D
43560-B6010
Bearing (For Front Axle Hub)
[02.2017 - 11.2017] S500,510 ＡＢＳ有り |
43560-B6010 |
— | ||
| replacement | |||||
|
43512D
|
43512D
43560-B6011 Bearing (For Front Axle Hub)[02.2017 - 11.2017] S500,510 ＡＢＳ有り |
43560-B6011 |
US $69.22 |
||
|
43512D
|
43512D
90043-63303 Bearing (For Front Axle Hub Rh)[09.2014 - 11.2015] S500,510 |
90043-63303 |
US $75.60 |
||
|
43512D
|
43512D
90043-63409 Bearing (For Front Axle Hub Rh)[11.2015 - 10.2016] S500,510 |
90043-63409 |
US $77.17 |
||
|
43512E
|
43512E
90045-21111 Ring, Hole Snap (For Front Axle Hub Rh)[11.2015 - 10.2016] S500,510 |
90045-21111 |
from US $1.08 |
||
|
43512E
|
43512E
90045-21163 Ring, Hole Snap (For Front Axle Hub)[09.2014 - 11.2015] S500,510 |
90045-21163 |
US $11.65 |
||
