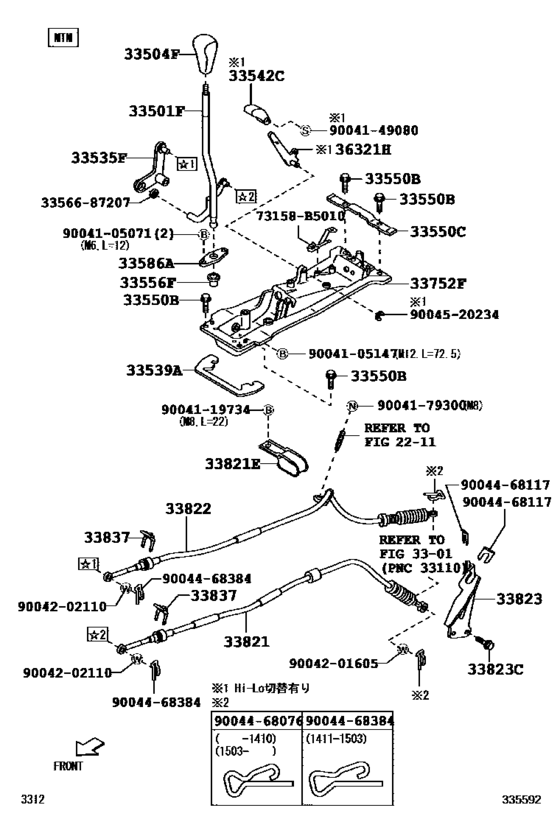

Shift Lever & Retainer ([09.2014 - ] (1409- )5MT) Diagram Toyota PIXIS
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- S510U
- grade
- SPL
- body
- TR
- Roof
- SRF
- ENGINE
- KFVE
- TRANSMISSION
- MTM
- Model
- PIXIS TRUCK
- From
- 09.2014
- Gear Shift Type
- 5MT
- Drive Train
- 4WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33501F
|
33501F
33501-97502 Shaft Sub-Assy, Control (For Floor Shift)[09.2014 - 10.2016] S500,510..5MT Ｍ１２Ｘ１．２５ |
33501-97502 |
US $63.04 |
||
|
33504F
|
33504F
33504-B5010-B0 Knob Sub-Assy, Shift Lever[09.2014 - 10.2016] S500,510..5MT DK.GRAY,TRIM1# |
33504-B5010-B0 |
US $34.51 |
||
|
33535F
|
33535F
33535-97502 Lever, Control Select (For Floor Shift)[09.2014 - 10.2016] S500,510..5MT |
33535-97502 |
US $28.39 |
||
|
33539A
|
33539A
47131-B5100 Cushion(For Position Indicator Housing)[09.2014 - 10.2016] S500,510 |
47131-B5100 |
US $4.80 |
||
|
33542C
|
33542C
33542-87503-B1 Knob, Shift Lever[09.2014 - 10.2016] S510..EXT..5MT DK.GRAY,TRIM1#; S510..SPL..5MT 農用スペシャル,DK.GRAY,TRIM1# |
33542-87503-B1 |
US $41.35 |
||
|
33550B
|
33550B
90041-20081 Bolt, W/washer (For Floor Shift)[09.2014 - 10.2016] S500,510 Ｍ６，Ｌ＝２０ |
90041-20081 |
US $1.60 |
||
|
33550C
|
33550C
47131-B5110 Cushion(For Floor Shift)[09.2014 - 10.2016] S500,510 |
47131-B5110 |
US $4.80 |
||
|
33556F
|
33556F
33556-87202 Seat, Transmission Shift Lever Ball[09.2014 - 10.2016] S500,510..5MT |
33556-87202 |
US $6.70 |
||
|
33586A
|
33586A
33586-97502 Stopper, Control Lever (For Floor Shift)[09.2014 - 10.2016] S500,510..5MT |
33586-97502 |
US $9.46 |
||
|
33752F
|
33752F
33752-B5080 Support, Control Link (For Floor Shift)[09.2014 - 10.2016] S500..5MT;S510..SPL..5MT |
33752-B5080 |
US $57.80 |
||
|
33752F
|
33752F
33752-B5090 Support, Control Link (For Floor Shift)[09.2014 - 10.2016] S510..EXT..5MT; S510..SPL..5MT 農用スペシャル |
33752-B5090 |
US $57.80 |
||
|
33821
|
33821
33821-B5060 Cable Transmission Control Shift (For Floor Shift)[09.2014 - 10.2016] S500,510..5MT |
33821-B5060 |
US $135.41 |
||
|
33821E
|
33821E
33829-B5040 Clamp, No.1 (For Transmission Control Cable)[09.2014 - 10.2016] S500,510 |
33829-B5040 |
US $5.68 |
||
|
33822
|
33822
33822-B5050 Cable Transmission Control Select (For Floor Shift)[09.2014 - 10.2016] S500,510..5MT |
33822-B5050 |
US $135.41 |
||
|
33823
|
33823
33823-B5060 Bracket, Transmission Control Cable, No.1[09.2014 - 10.2016] S500,510..5MT |
33823-B5060 |
US $40.62 |
||
|
33823C
|
33823C
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
[09.2014 - 10.2016] S500,510..5MT Ｍ８，Ｌ＝２５ |
91611-60825 |
— | ||
| replacement | |||||
|
33823C
|
33823C
91611-B0825 Bolt(For Clutch Release Cylinder Setting)[09.2014 - 10.2016] S500,510..5MT Ｍ８，Ｌ＝２５ |
91611-B0825 |
from US $1.08 |
||
|
33837
|
33837
33837-B5010 Bracket, Transfer Control Cable[09.2014 - 10.2016] S500,510..5MT |
33837-B5010 |
US $4.08 |
||
|
36321H
|
36321H
36503-87505 Lever, Transfer Shift[09.2014 - 10.2016] S510..EXT..5MT; S510..SPL..5MT 農用スペシャル |
36503-87505 |
US $24.32 |
||
|
73158B5010
|
73158B5010
73158-B5010 Bracket, Seat Belt Guide Set |
73158-B5010 |
US $5.68 |
||
|
3356687207
|
3356687207
33566-87207 Pin, Shift Lever Stop |
33566-87207 |
US $4.37 |
||
|
9004105071
|
9004105071
90041-05071 New Genuine Part |
90041-05071 |
US $1.60 |
||
|
9004105147
|
9004105147
90041-05147 New Genuine Part |
90041-05147 |
US $6.70 |
||
|
9004119734
|
9004119734
90041-19734 New Genuine Part |
90041-19734 |
US $2.04 |
||
|
9004149080
|
9004149080
90041-49080 New Genuine Part |
90041-49080 |
US $2.04 |
||
|
9004179300
|
9004179300
90041-79300 Nut, Booster |
90041-79300 |
US $2.33 |
||
|
9004201605
|
9004201605
90042-01605 New Genuine Part |
90042-01605 |
US $1.46 |
||
|
9004202110
|
9004202110
90042-02110 Washer, Plate (For Transfer Control Cable) |
90042-02110 |
US $2.04 |
||
|
9004468076
|
9004468076
90044-68076 Clip(For Push Rod Clevis Pin) |
90044-68076 |
US $3.40 |
||
| replacement | |||||
|
9004468076
|
9004468076
90044-68337 Clip(For Push Rod Clevis Pin) |
90044-68337 |
US $2.34 |
||
|
9004468117
|
9004468117
90044-68117 Clip, Transmission Control Cable Adjust |
90044-68117 |
US $2.18 |
||
|
9004468384
|
9004468384
90044-68384 New Genuine Part |
90044-68384 |
US $1.60 |
||
|
9004520234
|
9004520234
90045-20234 New Genuine Part |
90045-20234 |
US $2.33 |
||
