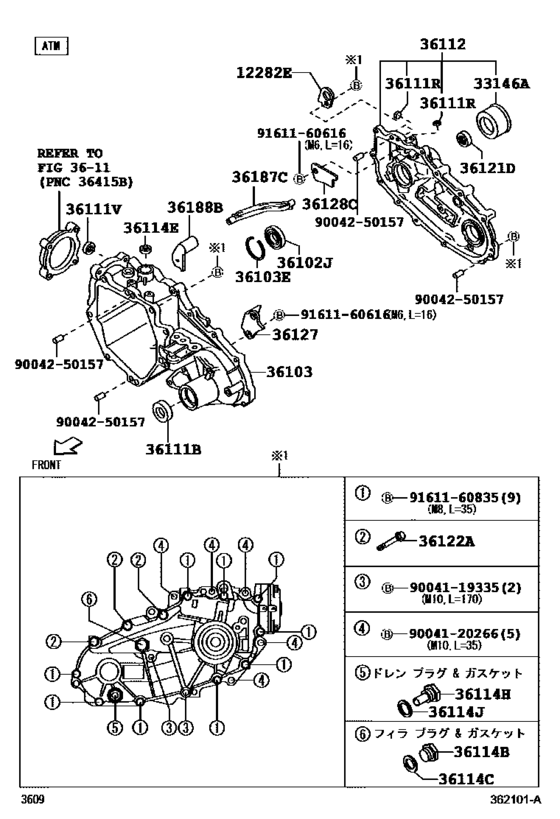

Transfer Case & Extension Housing ([09.2014 - 03.2015] ATM (1409-1503)S510..4AT) Diagram Toyota PIXIS
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- S510U
- grade
- EXT
- body
- TR
- Roof
- SRF
- ENGINE
- KFVE
- TRANSMISSION
- ATM
- Model
- PIXIS TRUCK
- From
- 09.2014
- Gear Shift Type
- 4AT
- Drive Train
- 4WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12282E
|
12282E
12282-87501 Hanger, Transfer Case[09.2014 - 03.2015] KFVE..S510..4AT |
12282-87501 |
US $4.54 |
||
|
12282E
|
12282E
12282-B5010 Hanger, Transfer Case[03.2015 - 10.2016] KFVE..S510..4AT |
12282-B5010 |
US $4.66 |
||
|
33146A
|
33146A
33146-87504
Deflector, Extension Housing Dust(Mtm)
[09.2014 - 02.2015] S510 |
33146-87504 |
— | ||
| replacement | |||||
|
33146A
|
33146A
33146-B5010 Deflector, Extension Housing Dust(Mtm)[09.2014 - 02.2015] S510 |
33146-B5010 |
US $16.67 |
||
|
33146A
|
33146A
33146-B5010 Deflector, Extension Housing Dust(Mtm)[03.2015 - 10.2016] S510 |
33146-B5010 |
US $16.67 |
||
|
36102J
|
36102J
88364-87501 Seal, Type T Oil (For Transfer Cover)[09.2014 - 10.2016] S510 |
88364-87501 |
US $14.69 |
||
|
36103
|
36103
36103-B5030 Case Sub-Assy, Transfer[09.2014 - 10.2016] S510..4AT |
36103-B5030 |
US $308.67 |
||
|
36103E
|
36103E
90045-21156 Ring, Hole Snap (For Transfer Case Bearing)[09.2014 - 10.2016] S510 |
90045-21156 |
US $5.78 |
||
|
36111B
|
36111B
90043-11320 Seal, Dust (For Transfer Output Shaft)[09.2014 - 10.2016] S510 |
90043-11320 |
US $6.27 |
||
|
36111R
|
36111R
90043-31029 Plug, Tight(For Extension Housing)[09.2014 - 10.2016] S510 |
90043-31029 |
US $3.06 |
||
|
36111V
|
36111V
90043-11362 Seal, Oil(For Transfer Case Drive Shaft Side)[09.2014 - 10.2016] S510 |
90043-11362 |
US $6.27 |
||
|
36112
|
36112
36104-B5040 Case, Transfer, Rear[09.2014 - 02.2015] S510 |
36104-B5040 |
US $270.82 |
||
| replacement | |||||
|
36112
|
36112
36104-B5060 Case, Transfer, Rear[09.2014 - 02.2015] S510 |
36104-B5060 |
US $270.82 |
||
|
36112
|
36112
36104-B5060 Case, Transfer, Rear[03.2015 - 10.2016] S510 |
36104-B5060 |
US $270.82 |
||
|
36114B
|
36114B
90341-16012 Plug(For Transmission Case)[09.2014 - 10.2016] S510 フィラ |
90341-16012 |
US $4.66 |
||
|
36114C
|
36114C
90044-30178 Gasket, Transmission Case Plug[09.2014 - 10.2016] S510 フィラ |
90044-30178 |
US $1.25 |
||
|
36114E
|
36114E
90043-13008 Seal, Oil(For Shift Lever No.2 Shaft)[09.2014 - 10.2016] S510..SPL;S510..EXT..4AT |
90043-13008 |
US $5.02 |
||
|
36114H
|
36114H
90043-41068 Plug (For Transfer Drain)[09.2014 - 10.2016] S510 ドレン |
90043-41068 |
US $7.17 |
||
|
36114J
|
36114J
90044-30055 Gasket (For Transfer Drain Plug)[09.2014 - 10.2016] S510 ドレン |
90044-30055 |
US $1.97 |
||
|
36121D
|
36121D
90043-11309 Seal, Oil(For Manual Transmission Extension Housing)[09.2014 - 10.2016] S510 |
90043-11309 |
US $7.88 |
||
|
36122A
|
36122A
90041-19907 Bolt (For Transfer Case)Cover No.2[09.2014 - 10.2016] S510..EXT;S510..SPL..4AT Ｍ１０，Ｌ＝６２; S510..SPL..5MT 農用スペシャル,Ｍ１０，Ｌ＝６２ |
90041-19907 |
US $4.54 |
||
|
36127
|
36127
36127-87506 Plate, Transfer Oil[09.2014 - 10.2016] S510 |
36127-87506 |
US $2.62 |
||
|
36128C
|
36128C
36128-87503 Plate, Transfer Oil Supply[09.2014 - 10.2016] S510 |
36128-87503 |
US $1.75 |
||
|
36187C
|
36187C
36187-87502 Pipe, Transfer Oil Supply, Rh[09.2014 - 10.2016] S510..EXT;S510..SPL..4AT; S510..SPL..5MT 農用スペシャル |
36187-87502 |
US $6.64 |
||
|
36188B
|
36188B
36188-87401 Pipe, Transfer Oil Supply, Lh[09.2014 - 10.2016] S510..4AT |
36188-87401 |
US $5.10 |
||
|
9004119335
|
9004119335
90041-19335 New Genuine Part |
90041-19335 |
US $5.24 |
||
|
9004120266
|
9004120266
90041-20266 New Genuine Part |
90041-20266 |
US $3.64 |
||
|
9004250157
|
9004250157
90042-50157 Pin, Straight(For Manual Transmission Case) |
90042-50157 |
from US $1.12 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
