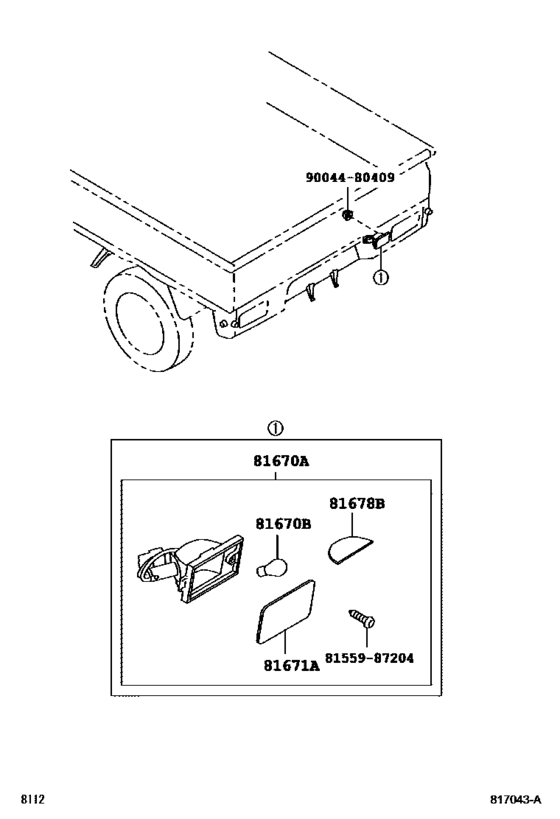

Back Up Lamp ([09.2014 - ] (1409- )) Diagram Toyota PIXIS
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- S510U
- grade
- SPL
- body
- TR
- Roof
- SRF
- ENGINE
- KFVE
- TRANSMISSION
- ATM
- Model
- PIXIS TRUCK
- From
- 09.2014
- Gear Shift Type
- 4AT
- Drive Train
- 4WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81670A
|
81670A
81670-87508 Lamp Assy, Back-Up[09.2014 - 10.2016] S500,510 |
81670-87508 |
US $77.95 |
||
|
81670A
|
81670A
81670-B5010 Lamp Assy, Back-Up[10.2016 -] S500,510 |
81670-B5010 |
US $51.07 |
||
|
81670B
|
81670B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[10.2016 -] S500,510 １２Ｖ １６Ｗ |
90981-11059 |
from US $3.15 |
||
|
81670B
|
81670B
99132-11210 Bulb (12V 21W)[09.2014 - 10.2016] S500,510 １２Ｖ ２１Ｗ |
99132-11210 |
from US $2.72 |
||
|
81671A
|
81671A
81671-87506 Lens & Body, Back-Up Lamp[09.2014 - 10.2016] S500,510 |
81671-87506 |
US $11.94 |
||
|
81678B
|
81678B
81277-87502 Protector, Back Up Lamp, Rh[09.2014 - 10.2016] S500,510 |
81277-87502 |
US $9.03 |
||
|
8155987204
|
8155987204
81559-87204 Moulding, Rear Combination Lamp, Rh |
81559-87204 |
US $3.93 |
||
|
9004480409
|
9004480409
90044-80409 New Genuine Part |
90044-80409 |
US $2.87 |
