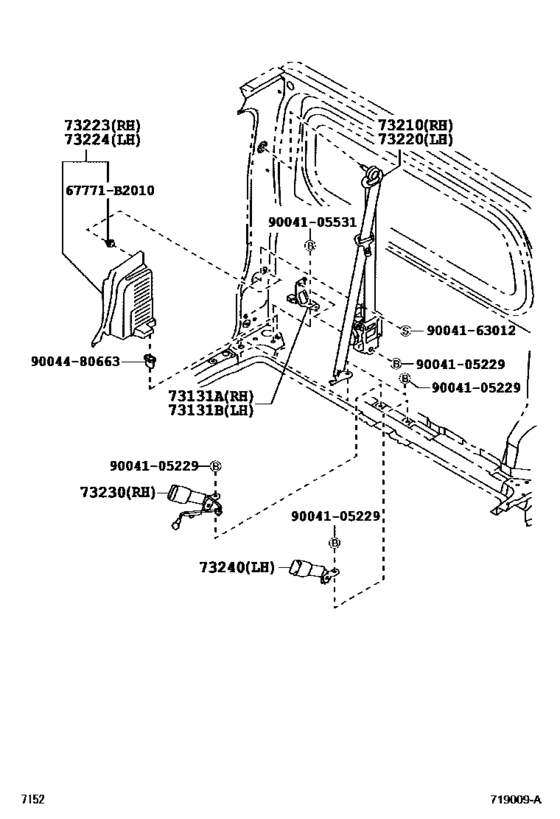

Seat Belt ([09.2014 - ] (1409- )) Diagram Toyota PIXIS
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- S510U
- grade
- SPL
- body
- TR
- Roof
- SRF
- ENGINE
- KFVE
- TRANSMISSION
- ATM
- Model
- PIXIS TRUCK
- From
- 09.2014
- Gear Shift Type
- 4AT
- Drive Train
- 4WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73131A
|
73131A
73131-B5010 Bracket, Seat Belt[09.2014 - 10.2016] S500,510 |
73131-B5010 |
US $19.80 |
||
|
73131B
|
73131B
73132-B5010 Bracket, Seat Belt[09.2014 - 10.2016] S500,510 |
73132-B5010 |
US $19.80 |
||
|
73210
|
73210
73210-B5130-B0 Belt Assy, Front Seat Outer, Rh[09.2014 - 10.2016] S500,510 SHADOW GRAY,TRIM1# |
73210-B5130-B0 |
US $346.53 |
||
|
73220
|
73220
73220-B5060-B0 Belt Assy, Front Seat Outer, Lh[09.2014 - 10.2016] S500,510 ＡＢＳ有り,SHADOW GRAY,TRIM1# |
73220-B5060-B0 |
US $346.53 |
||
|
73220
|
73220
73220-B5120-B0 Belt Assy, Front Seat Outer, Lh[09.2014 - 10.2016] S500,510 SHADOW GRAY,TRIM1# |
73220-B5120-B0 |
US $346.53 |
||
|
73223
|
73223
73223-B5040-B0 Cover, Seat Belt Retractor[09.2014 - 10.2016] S500,510 DK.GRAY,TRIM1# |
73223-B5040-B0 |
US $13.54 |
||
|
73224
|
73224
73224-B5030-B0 Cover, Front Seat Belt Retractor, Lh[09.2014 - 10.2016] S500,510 DK.GRAY,TRIM1# |
73224-B5030-B0 |
US $13.54 |
||
|
73230
|
73230
73230-B5180-B0 Belt Assy, Front Seat Inner, Rh[09.2014 - 12.2014] S500,510 DK.GRAY,TRIM1# |
73230-B5180-B0 |
US $87.36 |
||
| replacement | |||||
|
73230
|
73230
73230-B5181-B0 Belt Assy, Front Seat Inner, Rh[09.2014 - 12.2014] S500,510 DK.GRAY,TRIM1# |
73230-B5181-B0 |
US $86.92 |
||
|
73230
|
73230
73230-B5181-B0 Belt Assy, Front Seat Inner, Rh[01.2015 - 10.2016] S500,510 DK.GRAY,TRIM1# |
73230-B5181-B0 |
US $86.92 |
||
|
73240
|
73240
73240-B5030-B0 Belt Assy, Front Seat Inner, Lh[09.2014 - 10.2016] S500,510 DK.GRAY,TRIM1# |
73240-B5030-B0 |
US $42.08 |
||
|
67771B2010
|
67771B2010
67771-B2010 Clip, Cowl Top Ventilator Louver |
67771-B2010 |
US $3.40 |
||
|
9004105229
|
9004105229
90041-05229 New Genuine Part |
90041-05229 |
US $3.35 |
||
|
9004105531
|
9004105531
90041-05531 New Genuine Part |
90041-05531 |
US $3.20 |
||
|
9004163012
|
9004163012
90041-63012 New Genuine Part |
90041-63012 |
US $1.60 |
||
|
9004480663
|
9004480663
90044-80663 New Genuine Part |
90044-80663 |
US $1.60 |
||
