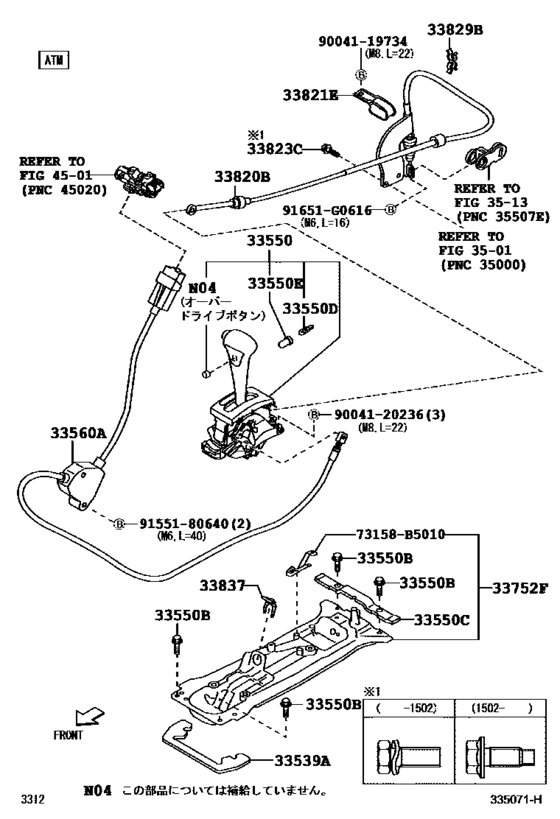

Shift Lever & Retainer ([09.2014 - ] (1409- )4AT) Diagram Toyota PIXIS
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- S510U
- grade
- SPL
- body
- TR
- Roof
- SRF
- ENGINE
- KFVE
- TRANSMISSION
- ATM
- Model
- PIXIS TRUCK
- From
- 09.2014
- Gear Shift Type
- 4AT
- Drive Train
- 4WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33539A
|
33539A
47131-B5100 Cushion(For Position Indicator Housing)[09.2014 - 10.2016] S500,510 |
47131-B5100 |
US $4.80 |
||
|
33550
|
33550
33550-B5210-B1 Floor Shift Assy, Transmission[09.2014 - 10.2016] S500,510..4AT DK.GRAY,TRIM1#,オーバードライブ ボタン付き |
33550-B5210-B1 |
US $237.33 |
||
|
33550B
|
33550B
90041-20081 Bolt, W/washer (For Floor Shift)[09.2014 - 10.2016] S500,510 Ｍ６，Ｌ＝２０ |
90041-20081 |
US $1.60 |
||
|
33550C
|
33550C
47131-B5110 Cushion(For Floor Shift)[09.2014 - 10.2016] S500,510 |
47131-B5110 |
US $4.80 |
||
|
33550D
|
33550D
35955-B5020 Bulb, Position Indicator Lamp[09.2014 - 10.2016] S500,510..4AT |
35955-B5020 |
US $2.62 |
||
|
33550E
|
33550E
35956-B5030 Cap, Position Indicator Lamp[09.2014 - 10.2016] S500,510..4AT |
35956-B5030 |
US $1.75 |
||
|
33560A
|
33560A
33560-B5110 Cable Assy, Shift Lock Release[09.2014 - 05.2015] S500,510..4AT |
33560-B5110 |
US $123.76 |
||
| replacement | |||||
|
33560A
|
33560A
33560-B5111 Cable Assy, Shift Lock Release[09.2014 - 05.2015] S500,510..4AT |
33560-B5111 |
US $112.11 |
||
|
33560A
|
33560A
33560-B5111 Cable Assy, Shift Lock Release[06.2015 - 10.2016] S500,510..4AT |
33560-B5111 |
US $112.11 |
||
|
33752F
|
33752F
33752-B5070 Support, Control Link (For Floor Shift)[09.2014 - 10.2016] S500,510..4AT |
33752-B5070 |
US $57.80 |
||
|
33820B
|
33820B
33820-B5090 Cable Assy, Transmission Control[09.2014 - 10.2016] S500,510..4AT |
33820-B5090 |
US $167.44 |
||
|
33821E
|
33821E
33829-B5040 Clamp, No.1 (For Transmission Control Cable)[09.2014 - 10.2016] S500,510 |
33829-B5040 |
US $5.68 |
||
|
33823C
|
33823C
91553-80816 Bolt (For Transmission Control Cable Bracket)[02.2015 - 10.2016] S500,510..4AT Ｍ８，Ｌ＝２１ |
91553-80816 |
from US $0.82 |
||
|
33823C
|
33823C
91611-G0820 Bolt[09.2014 - 02.2015] S500,510..4AT Ｍ８，Ｌ＝２０ |
91611-G0820 |
from US $1.18 |
||
|
33829B
|
33829B
90044-64697 Clamp, Transmission Control Cable[09.2014 - 10.2014] S500,510..4AT |
90044-64697 |
US $3.64 |
||
|
33829B
|
33829B
90044-64900 Clamp, Transmission Control Cable[11.2014 - 10.2016] S500,510..4AT |
90044-64900 |
US $2.33 |
||
|
33837
|
33837
33837-B5010 Bracket, Transfer Control Cable[09.2014 - 10.2016] S500,510..4AT |
33837-B5010 |
US $4.08 |
||
|
73158B5010
|
73158B5010
73158-B5010 Bracket, Seat Belt Guide Set |
73158-B5010 |
US $5.68 |
||
|
91651G0616
|
91651G0616
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.43 |
||
|
9004119734
|
9004119734
90041-19734 New Genuine Part |
90041-19734 |
US $2.04 |
||
|
9004120236
|
9004120236
90041-20236 New Genuine Part |
90041-20236 |
US $2.77 |
||
|
9155180640
|
9155180640
91551-80640 New Genuine Part |
91551-80640 |
US $1.43 |
||
