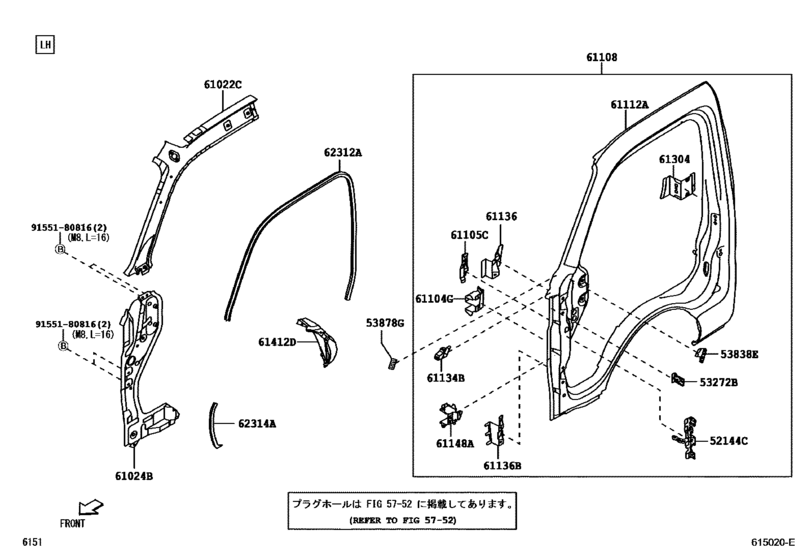

Side Member ([09.2014 - ] LH (1409- )) Diagram Toyota PIXIS
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- S510U
- grade
- SPL
- body
- TR
- Roof
- SRF
- ENGINE
- KFVE
- TRANSMISSION
- ATM
- Model
- PIXIS TRUCK
- From
- 09.2014
- Gear Shift Type
- 4AT
- Drive Train
- 4WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52144C
|
52144C
52016-B5010 Bracket, Front Bumper Side, Lh[09.2014 - 10.2016] S500,510 |
52016-B5010 |
US $21.67 |
||
|
53272B
|
53272B
53245-B5010 Bracket, Headlamp Mounting, Rh[09.2014 - 10.2016] S500,510 |
53245-B5010 |
US $8.74 |
||
|
53838E
|
53838E
55734-B5020 Bracket, Front Side Panel, No.2 Lh[09.2014 - 12.2014] S500,510 |
55734-B5020 |
US $4.08 |
||
| replacement | |||||
|
53838E
|
53838E
55734-B5030 Bracket, Front Side Panel, No.2 Lh[09.2014 - 12.2014] S500,510 |
55734-B5030 |
US $8.74 |
||
|
53838E
|
53838E
55734-B5030 Bracket, Front Side Panel, No.2 Lh[12.2014 - 10.2016] S500,510 |
55734-B5030 |
US $8.74 |
||
|
53878G
|
53878G
53888-B5010 Spacer, Front Fender[09.2014 - 10.2016] S500,510 マジックファスナ |
53888-B5010 |
US $2.33 |
||
|
61022C
|
61022C
61022-B5060 Pillar Sub-Assy, Front Body, Lh[09.2014 - 10.2016] S500,510..SPL |
61022-B5060 |
US $87.36 |
||
|
61022C
|
61022C
61022-B5070 Pillar Sub-Assy, Front Body, Lh[09.2014 - 10.2016] S500,510..EXT; S500,510..SPL キャビンパック |
61022-B5070 |
US $87.36 |
||
|
61024B
|
61024B
61024-B5090 Pillar Sub-Assy, Front Body, Inner Lh[09.2014 - 10.2016] S500,510 |
61024-B5090 |
US $126.67 |
||
|
61104G
|
61104G
61104-B5010 Gusset Sub-Assy, Front Body Pillar, Lower Lh[09.2014 - 10.2016] S500,510 |
61104-B5010 |
US $39.75 |
||
|
61105C
|
61105C
61158-B5020 Reinforce Sub-Assy, Front Door Check, Lh[09.2014 - 10.2016] S500,510 |
61158-B5020 |
US $25.19 |
||
|
61108
|
61108
61012-B5350 Pillar Sub-Assy, Front Body Outer, Lh[09.2014 - 10.2016] S500,510 |
61012-B5350 |
US $595.50 |
||
|
61112A
|
61112A
61112-B5060 Panel, Front Side, Outer Lh[09.2014 - 10.2016] S500,510 |
61112-B5060 |
US $377.10 |
||
|
61134B
|
61134B
61134-B5010 Bracket, Front Body Pillar Outer, Lh[09.2014 - 10.2016] S500,510 |
61134-B5010 |
US $9.17 |
||
|
61136
|
61136
61136-B5020 Reinforcement, Front Body Pillar, Upper Lh[09.2014 - 10.2016] S500,510 |
61136-B5020 |
US $39.75 |
||
|
61136B
|
61136B
61138-B5030 Reinforcement, Front Body Pillar, Outer[09.2014 - 10.2016] S500,510 |
61138-B5030 |
US $31.60 |
||
|
61148A
|
61148A
61148-B5020 Extension, Front Body Pillar, Upper Outer Lh[09.2014 - 10.2016] S500,510 |
61148-B5020 |
US $31.60 |
||
|
61304
|
61304
61304-B5010 Reinforce Sub-Assy, Center Body Pillar, Upper Lh[09.2014 - 10.2016] S500,510 |
61304-B5010 |
US $39.75 |
||
|
61412D
|
61412D
61426-B5010 Panel, Fender, Outer Lh[09.2014 - 10.2016] S500,510 |
61426-B5010 |
US $39.75 |
||
|
62312A
|
62312A
62311-B5020-C0 Weatherstrip, Front Door Opening Trim, Rh[09.2014 - 10.2016] S500,510 BLACK,TRIM1# |
62311-B5020-C0 |
US $21.90 |
||
|
62314A
|
62314A
62314-B5070-C0 Trim, Front Door Opening, Lh[09.2014 - 10.2016] S500,510 BLACK,TRIM1# |
62314-B5070-C0 |
US $7.28 |
||
|
9155180816
|
9155180816
91551-80816 Bolt(For Manual Transmission Oil Separator) |
91551-80816 |
from US $0.78 |
||
