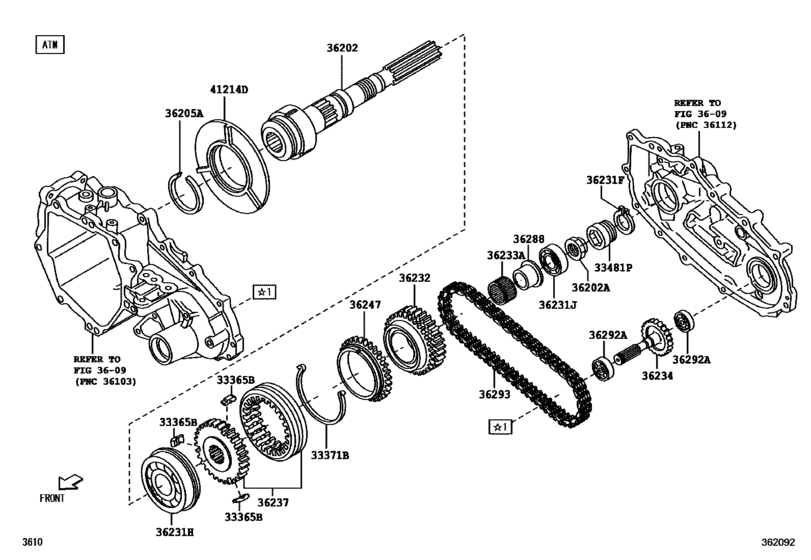

Transfer Gear ([09.2014 - ] (1409- )S510..4AT) Diagram Toyota PIXIS
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- S510U
- grade
- SPL
- body
- TR
- Roof
- SRF
- ENGINE
- KFVE
- TRANSMISSION
- ATM
- Model
- PIXIS TRUCK
- From
- 09.2014
- Gear Shift Type
- 4AT
- Drive Train
- 4WD
- Vehicle Model
- PIXIS TRUCK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33365B
|
33365B
33365-87507 Key, Synchromesh Shifting, No.1[09.2014 - 10.2016] S510 |
33365-87507 |
US $10.19 |
||
|
33371B
|
33371B
33392-87502 Spring, Synchromesh Shifting Key (For Transfer)[09.2014 - 10.2016] S510 |
33392-87502 |
US $5.68 |
||
|
33481P
|
33481P
33481-87410 Gear, Speedometer Drive (For Transfer)[09.2014 - 10.2016] S510..4AT |
33481-87410 |
US $43.53 |
||
|
36202
|
36202
36220-87505 Shaft Sub-Assy, Transfer Output, Rear[09.2014 - 10.2016] S510..4AT |
36220-87505 |
US $365.46 |
||
|
36202A
|
36202A
90041-79244 Nut(For Transfer Output Rear Shaft)[09.2014 - 10.2016] S510 Ｍ２５ |
90041-79244 |
US $7.57 |
||
|
36205A
|
36205A
96152-00450 Ring, Snap(For Clutch Release Hub)[09.2014 - 10.2016] S510..4AT |
96152-00450 |
US $3.58 |
||
|
36231F
|
36231F
96150-02200 Ring, Shaft Snap (For Transfer Output Shaft)[09.2014 - 10.2016] S510 |
96150-02200 |
US $1.89 |
||
|
36231H
|
36231H
97153-06306 Bearing, Radial Ball (For Transfer Output Shaft Front)[09.2014 - 10.2016] S510..EXT;S510..SPL..4AT; S510..SPL..5MT 農用スペシャル |
97153-06306 |
US $18.64 |
||
| replacement | |||||
|
36231H
|
36231H
97163-06306 Bearing (For Input Shaft Front)[09.2014 - 10.2016] S510..EXT;S510..SPL..4AT; S510..SPL..5MT 農用スペシャル |
97163-06306 |
US $21.84 |
||
|
36231J
|
36231J
90043-63127 Bearing, Radial Ball (For Transfer Output Shaft Rear)[09.2014 - 10.2016] S510 |
90043-63127 |
US $20.24 |
||
|
36232
|
36232
36232-B5010 Gear, Transfer Front Drive[09.2014 - 10.2016] S510 |
36232-B5010 |
US $145.60 |
||
|
36233A
|
36233A
90043-64140 Bearing, Radial Ball (For Transfer Output Shaft Front)[09.2014 - 10.2016] S510 |
90043-64140 |
US $11.79 |
||
|
36234
|
36234
36234-B5010 Shaft, Transfer Output, Front[09.2014 - 10.2016] S510 |
36234-B5010 |
US $117.94 |
||
|
36237
|
36237
36203-B5020 Hub, Transfer Clutch[09.2014 - 10.2016] S510..EXT;S510..SPL..4AT; S510..SPL..5MT 農用スペシャル |
36203-B5020 |
US $182 |
||
|
36247
|
36247
33368-87507 Ring, Transfer Synchronizer[09.2014 - 10.2016] S510 |
33368-87507 |
US $47.32 |
||
|
36288
|
36288
36288-B5020 Race, Transfer Thrust Bearing, No.1[09.2014 - 10.2016] S510..EXT;S510..SPL..4AT; S510..SPL..5MT 農用スペシャル |
36288-B5020 |
US $31.60 |
||
|
36292A
|
36292A
97100-06203 Bearing, Radial Ball (For Transfer Input Gear)[09.2014 - 10.2016] S510 リヤ |
97100-06203 |
US $4.37 |
||
|
36292A
|
36292A
97130-06005 Bearing (For Transfer Output Front Shaft)[09.2014 - 10.2016] S510 フロント |
97130-06005 |
US $6.81 |
||
|
36293
|
36293
36293-87508 Chain, Transfer Front Drive[09.2014 - 10.2016] S510 |
36293-87508 |
US $115.02 |
||
|
41214D
|
41214D
41214-87502 Slinger, Center Differential Drive Pinion Oil[09.2014 - 10.2016] S510..4AT |
41214-87502 |
US $37.56 |
||
