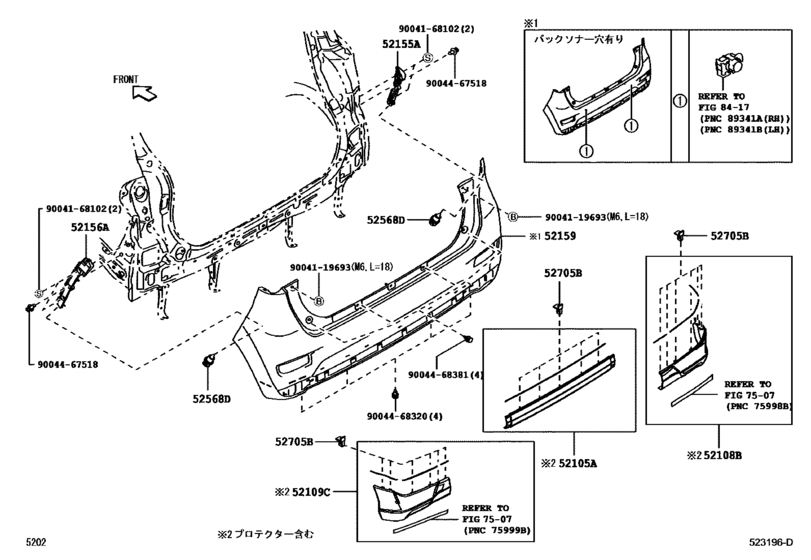

Rear Bumper & Bumper Stay ([09.2016 - ] (1609- )S) Diagram Toyota PIXIS JOY
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- LA250A
- grade
- S
- ENGINE
- KFVET
- TRANSMISSION
- CVT
- Model
- PIXIS JOY
- From
- 09.2016
- Drive Train
- 2WD
- Vehicle Model
- PIXIS JOY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52105A
|
52105A
52105-B2020-C0 Bumper Sub-Assy, Rear Center[09.2016 -] LA250,260..S BLACK M.M.,B79 ,R40 ,W24 ,X07 |
52105-B2020-C0 |
US $100.46 |
||
|
52108B
|
52108B
52106-B2040-C0 Extension Sub-Assy, Rear Bumper Side, Rh[09.2016 -] LA250,260..S BLACK M.M.,B79 ,R40 ,W24 ,X07 |
52106-B2040-C0 |
US $80.08 |
||
|
52109C
|
52109C
52107-B2040-C0 Extension Sub-Assy, Rear Bumper Side, Lh[09.2016 -] LA250,260..S BLACK M.M.,B79 ,R40 ,W24 ,X07 |
52107-B2040-C0 |
US $80.08 |
||
|
52155A
|
52155A
52155-B2340 Support, Rear Bumper Side, Rh[09.2016 -] LA250,260 |
52155-B2340 |
US $19.49 |
||
|
52156A
|
52156A
52156-B2340 Support, Rear Bumper Side, Lh[09.2016 -] LA250,260 |
52156-B2340 |
US $19.49 |
||
|
52159
|
52159
52159-B2A30-A0 Cover, Rear Bumper[09.2016 -] LA250,260..S WHITE PEARL MC.CS,W24,バックソナー穴有り |
52159-B2A30-A0 |
US $486.30 |
||
|
52159
|
52159
52159-B2A30-C0 Cover, Rear Bumper[09.2016 -] LA250,260..S BLACK M.M.,X07,バックソナー穴有り |
52159-B2A30-C0 |
US $486.30 |
||
|
52159
|
52159
52159-B2A30-D0 Cover, Rear Bumper[09.2016 -] LA250,260..S RED,R40,バックソナー穴有り |
52159-B2A30-D0 |
US $486.30 |
||
|
52159
|
52159
52159-B2A30-J0 Cover, Rear Bumper[09.2016 -] LA250,260..S DARK BLUE SE.,B79,バックソナー穴有り |
52159-B2A30-J0 |
US $486.30 |
||
|
52568D
|
52568D
90044-67585 Retainer, Rear Bumper, Upper No.2[09.2016 -] LA250,260 |
90044-67585 |
US $2.87 |
||
|
52705B
|
52705B
76854-87401 Retainer, Rear Bumper Side, RhFRONT SPOILER, NO.2 [09.2016 -] LA250,260..S |
76854-87401 |
US $3.58 |
||
|
9004119693
|
9004119693
90041-19693 New Genuine Part |
90041-19693 |
US $1.97 |
||
|
9004168102
|
9004168102
90041-68102 SCREW TAPPING |
90041-68102 |
US $2.87 |
||
|
9004467518
|
9004467518
90044-67518 New Genuine Part |
90044-67518 |
US $3.58 |
||
|
9004468320
|
9004468320
90044-68320
Clip, Engine Under Cover, No.2
|
90044-68320 |
— | ||
| replacement | |||||
|
9004468320
|
9004468320
90044-68378 CLIP |
90044-68378 |
from US $0.57 |
||
|
9004468381
|
9004468381
90044-68381 Clip(For Rear Bumper Retainer) |
90044-68381 |
from US $0.65 |
||
