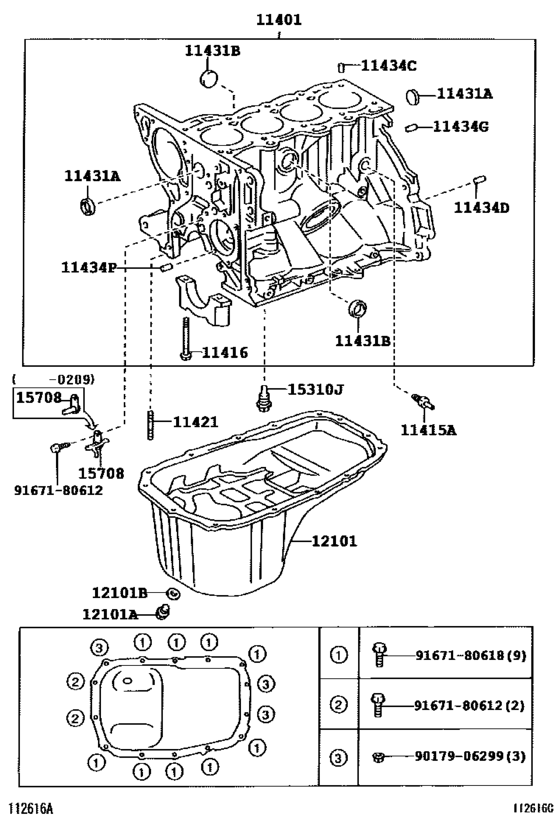

Cylinder Block ([08.1999 - ] (9908- )1SZFE) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-23020 Block Sub-Assy, Cylinder[08.1999 - 01.2000] 1SZFE..SCP11 |
11401-23020 |
US $1,718.08 |
||
| replacements | |||||
|
11401
|
11401
11401-23031 Block Sub-assy, Cylinder[08.1999 - 01.2000] 1SZFE..SCP11 |
11401-23031 |
US $1,718.08 |
||
|
11401
|
11401
11701-23061-02 Bearing, Crankshaft[08.1999 - 01.2000] 1SZFE..SCP11 |
11701-23061-02 |
from US $16.91 |
||
|
11401
|
11401
11701-23061-03 Bearing, Crankshaft[08.1999 - 01.2000] 1SZFE..SCP11 |
11701-23061-03 |
US $38.44 |
||
|
11401
|
11401
11701-23061-04 Bearing, Crankshaft[08.1999 - 01.2000] 1SZFE..SCP11 |
11701-23061-04 |
US $38.44 |
||
|
11401
|
11401
11701-23061-05 Bearing, Crankshaft[08.1999 - 01.2000] 1SZFE..SCP11 |
11701-23061-05 |
US $38.44 |
||
|
11401
|
11401
11401-23021 Block Sub-Assy, Cylinder[01.2000 - 12.2001] 1SZFE..SCP11 |
11401-23021 |
US $1,718.08 |
||
| replacements | |||||
|
11401
|
11401
11401-23031 Block Sub-assy, Cylinder[01.2000 - 12.2001] 1SZFE..SCP11 |
11401-23031 |
US $1,718.08 |
||
|
11401
|
11401
11701-23061-02 Bearing, Crankshaft[01.2000 - 12.2001] 1SZFE..SCP11 |
11701-23061-02 |
from US $16.91 |
||
|
11401
|
11401
11701-23061-03 Bearing, Crankshaft[01.2000 - 12.2001] 1SZFE..SCP11 |
11701-23061-03 |
US $38.44 |
||
|
11401
|
11401
11701-23061-04 Bearing, Crankshaft[01.2000 - 12.2001] 1SZFE..SCP11 |
11701-23061-04 |
US $38.44 |
||
|
11401
|
11401
11701-23061-05 Bearing, Crankshaft[01.2000 - 12.2001] 1SZFE..SCP11 |
11701-23061-05 |
US $38.44 |
||
|
11401
|
11401
11401-23030 Block Sub-Assy, Cylinder[12.2001 - 08.2002] 1SZFE..SCP11 |
11401-23030 |
US $1,718.08 |
||
| replacements | |||||
|
11401
|
11401
11401-23031 Block Sub-assy, Cylinder[12.2001 - 08.2002] 1SZFE..SCP11 |
11401-23031 |
US $1,718.08 |
||
|
11401
|
11401
11701-23061-02 Bearing, Crankshaft[12.2001 - 08.2002] 1SZFE..SCP11 |
11701-23061-02 |
from US $16.91 |
||
|
11401
|
11401
11701-23061-03 Bearing, Crankshaft[12.2001 - 08.2002] 1SZFE..SCP11 |
11701-23061-03 |
US $38.44 |
||
|
11401
|
11401
11701-23061-04 Bearing, Crankshaft[12.2001 - 08.2002] 1SZFE..SCP11 |
11701-23061-04 |
US $38.44 |
||
|
11401
|
11401
11701-23061-05 Bearing, Crankshaft[12.2001 - 08.2002] 1SZFE..SCP11 |
11701-23061-05 |
US $38.44 |
||
|
11415A
|
11415A
90910-09116 Plug, Water Drain Cock(For Cylinder Block)[08.1999 - 08.2002] 1SZFE..SCP11 |
90910-09116 |
US $5.59 |
||
|
11416
|
11416
90105-10460 Bolt(For Crankshaft Bearing Cap Set)[08.1999 - 01.2000] 1SZFE..SCP11 |
90105-10460 |
US $2.62 |
||
|
11416
|
11416
90105-10492 Bolt(For Crankshaft Bearing Cap Set)[01.2000 - 08.2002] 1SZFE..SCP11 |
90105-10492 |
US $2.91 |
||
|
11421
|
11421
92122-60610 Bolt, Stud(For Oil Pan)[08.1999 - 08.2002] 1SZFE..SCP11 |
92122-60610 |
US $2.08 |
||
|
11431A
|
11431A
96411-62500 Plug, Tight, No.1[08.1999 - 08.2002] 1SZFE..SCP11 |
96411-62500 |
from US $3.20 |
||
|
11431B
|
11431B
96411-63000 Plug, Tight[08.1999 - 08.2002] 1SZFE..SCP11 |
96411-63000 |
from US $3.36 |
||
|
11434C
|
11434C
90253-12002 Pin, Ring[08.1999 - 08.2002] 1SZFE..SCP11 長さ＝１２，外径＝１２ |
90253-12002 |
from US $0.64 |
||
|
11434D
|
11434D
90250-06030 Pin, Straight(For Timing Chain Cover)[08.1999 - 08.2002] 1SZFE..SCP11 長さ＝１２，外径＝６ |
90250-06030 |
US $1.31 |
||
|
11434G
|
11434G
90250-10214 Pin, Straight(For End Plate)[08.1999 - 08.2002] 1SZFE..SCP11 |
90250-10214 |
from US $1.46 |
||
|
11434P
|
11434P
90250-06030 Pin, Straight(For Timing Chain Cover)[08.1999 - 08.2002] 1SZFE..SCP11 長さ＝１２，外径＝６ |
90250-06030 |
US $1.31 |
||
|
12101
|
12101
12101-23030 Pan Sub-Assy, Oil[08.1999 - 08.2002] 1SZFE..SCP11 |
12101-23030 |
US $177.63 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[08.1999 - 08.2002] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[08.1999 - 08.2002] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
90341-T0004 |
US $4.04 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[08.1999 - 08.2002] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
90430-12031 |
from US $0.88 |
||
|
15310J
|
15310J
15310-23010 Regulator Assy, Oil[08.1999 - 08.2002] 1SZFE..SCP11 |
15310-23010 |
US $30.23 |
||
|
15708
|
15708
15708-23010 Nozzle Sub-Assy, Oil, No.1[08.1999 - 08.2002] 1SZFE..SCP11 |
15708-23010 |
US $12.23 |
||
| replacement | |||||
|
15708
|
15708
15708-23020 Nozzle Sub-Assy, Oil, No.1[08.1999 - 08.2002] 1SZFE..SCP11 |
15708-23020 |
US $24.32 |
||
|
15708
|
15708
15708-23020 Nozzle Sub-Assy, Oil, No.1[09.2002 -] 1SZFE..SCP11 |
15708-23020 |
US $24.32 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
|
9167180618
|
9167180618
91671-80618 BOLT FLANGE WWSHER |
91671-80618 |
US $0.96 |
||
