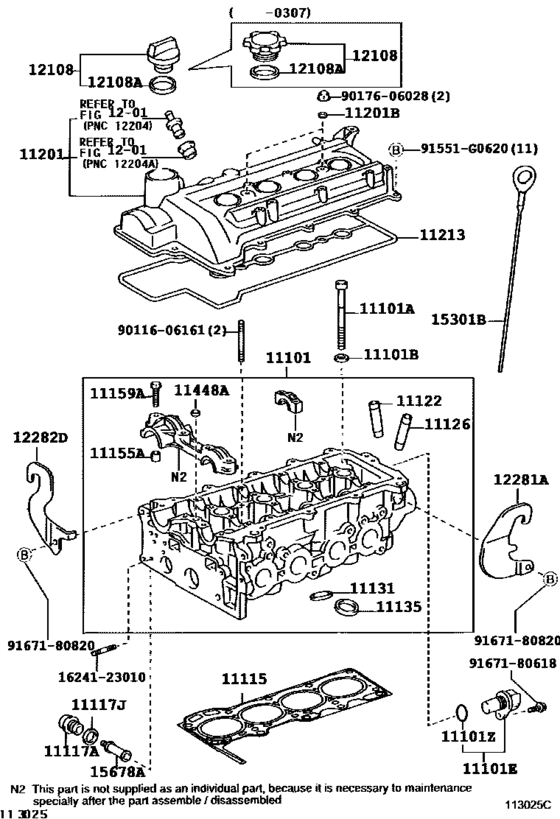

Cylinder Head ([08.1999 - ] (9908- )1SZFE) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-23030 Head Sub-Assy, Cylinder[08.1999 - 08.2002] 1SZFE..SCP11 |
11101-23030 |
US $1,421.06 |
||
| replacement | |||||
|
11101
|
11101
11101-23070 Head Sub-Assy, Cylinder[08.1999 - 08.2002] 1SZFE..SCP11 |
11101-23070 |
US $1,422.51 |
||
|
11101
|
11101
11101-23060 Head Sub-Assy, Cylinder[12.2002 - 01.2004] 1SZFE..SCP11 |
11101-23060 |
US $1,422.51 |
||
| replacement | |||||
|
11101
|
11101
11101-23070 Head Sub-Assy, Cylinder[12.2002 - 01.2004] 1SZFE..SCP11 |
11101-23070 |
US $1,422.51 |
||
|
11101
|
11101
11101-23070 Head Sub-Assy, Cylinder[01.2004 -] 1SZFE..SCP11 |
11101-23070 |
US $1,422.51 |
||
|
11101A
|
11101A
90910-02137 Bolt(For Cylinder Head Set)[08.1999 - 01.2000] 1SZFE..SCP11 |
90910-02137 |
US $4.22 |
||
| replacement | |||||
|
11101A
|
11101A
90910-02143 Bolt(For Cylinder Head Set)[08.1999 - 01.2000] 1SZFE..SCP11 |
90910-02143 |
from US $4.31 |
||
|
11101A
|
11101A
90910-02143 Bolt(For Cylinder Head Set)[01.2000 - 08.2002] 1SZFE..SCP11 |
90910-02143 |
from US $4.31 |
||
|
11101B
|
11101B
90201-10136 Washer, Plate(For Cylinder Head Set)[08.1999 - 08.2002] 1SZFE..SCP11 |
90201-10136 |
US $1.28 |
||
|
11101E
|
11101E
90919-05024 Sensor, Cam Position[08.1999 - 08.2002] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
90919-05024 |
from US $62.78 |
||
|
11101Z
|
11101Z
90301-14016
O Ring, Cam Position Sensor
[08.1999 - 08.2002] 1SZFE..SCP11 |
90301-14016 |
— | ||
|
11115
|
11115
11115-23030 Gasket, Cylinder Head[08.1999 - 08.2002] 1SZFE..SCP11 厚さ＝０．３９ |
11115-23030 |
from US $40.40 |
||
|
11117A
|
11117A
90341-14013 Plug, W/head Taper Screw, No.1[08.1999 - 08.2002] 1SZFE..SCP11 |
90341-14013 |
from US $1.92 |
||
|
11117J
|
11117J
90430-14009 Gasket(For Cylinder Head Screw Plug)[08.1999 - 08.2002] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
90430-14009 |
from US $1.27 |
||
|
11122
|
11122
11122-21010 Bush, Intake Valve Guide[08.1999 - 08.2002] 1NZFE,2NZFE..NCP1# ＳＴＤ; 1SZFE..SCP11 ＳＴＤ |
11122-21010 |
from US $8 |
||
|
11122
|
11122
11123-21010 Bush, Intake Valve Guide[08.1999 - 08.2002] 1NZFE,2NZFE..NCP1# Ｏ／Ｓ ０．０５; 1SZFE..SCP11 Ｏ／Ｓ ０．０５ |
11123-21010 |
US $6.33 |
||
|
11126
|
11126
11122-21010 Bush, Intake Valve Guide[08.1999 - 08.2002] 1NZFE,2NZFE..NCP1# ＳＴＤ; 1SZFE..SCP11 ＳＴＤ |
11122-21010 |
from US $8 |
||
|
11126
|
11126
11123-21010 Bush, Intake Valve Guide[08.1999 - 08.2002] 1NZFE,2NZFE..NCP1# Ｏ／Ｓ ０．０５; 1SZFE..SCP11 Ｏ／Ｓ ０．０５ |
11123-21010 |
US $6.33 |
||
|
11131
|
11131
11131-23010 Seat, Intake Valve[08.1999 - 08.2002] 1SZFE..SCP11 ＳＴＤ |
11131-23010 |
US $7.43 |
||
|
11131
|
11131
11132-23010 Seat, Intake Valve[08.1999 - 08.2002] 1SZFE..SCP11 Ｏ／Ｓ ０．０３ |
11132-23010 |
US $7.43 |
||
|
11135
|
11135
11135-23020 Seat, Exhaust Valve[08.1999 - 08.2002] 1SZFE..SCP11 ＳＴＤ |
11135-23020 |
US $7.28 |
||
| replacement | |||||
|
11135
|
11135
11135-23050 Seat, Exhaust Valve[08.1999 - 08.2002] 1SZFE..SCP11 ＳＴＤ |
11135-23050 |
US $7.43 |
||
|
11135
|
11135
11135-23050 Seat, Exhaust Valve[12.2002 -] 1SZFE..SCP11 ＳＴＤ |
11135-23050 |
US $7.43 |
||
|
11135
|
11135
11136-23020 Seat, Exhaust Valve[08.1999 - 08.2002] 1SZFE..SCP11 Ｏ／Ｓ ０．０３ |
11136-23020 |
US $7.28 |
||
| replacement | |||||
|
11135
|
11135
11136-23050 Seat, Exhaust Valve[08.1999 - 08.2002] 1SZFE..SCP11 Ｏ／Ｓ ０．０３ |
11136-23050 |
US $7.43 |
||
|
11135
|
11135
11136-23050 Seat, Exhaust Valve[12.2002 -] 1SZFE..SCP11 Ｏ／Ｓ ０．０３ |
11136-23050 |
US $7.43 |
||
|
11155A
|
11155A
90253-08004 Pin, Ring W/head[08.1999 - 08.2002] 1SZFE..SCP11 |
90253-08004 |
US $0.58 |
||
|
11159A
|
11159A
90119-06884 Bolt(For Head To Camshaft Bearing Cap)[08.1999 - 08.2002] 1SZFE..SCP11 |
90119-06884 |
US $1.46 |
||
|
11201
|
11201
11201-23070 Cover Sub-Assy, Cylinder Head[08.1999 - 08.2002] 1SZFE..SCP11 |
11201-23070 |
US $323.23 |
||
|
11201B
|
11201B
90210-06013 Washer, Seal(For Cylinder Head Cover)[08.1999 - 08.2002] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
90210-06013 |
from US $0.96 |
||
|
11213
|
11213
11213-23020 Gasket, Cylinder Head Cover[08.1999 - 08.2002] 1SZFE..SCP11 |
11213-23020 |
from US $19.32 |
||
|
11448A
|
11448A
11448-23010 Orifice, Cylinder Head Oil[08.1999 - 08.2002] 1SZFE..SCP11 |
11448-23010 |
US $0.96 |
||
|
12108
|
12108
12180-21010 Cap Sub-Assy, Oil Filler[07.2003 -] 1SZFE..SCP11 |
12180-21010 |
from US $12.52 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[08.1999 - 08.2002] 1SZFE..SCP11 |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1999 - 08.2002] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
90430-37140 |
from US $1.25 |
||
|
12281A
|
12281A
12281-23020 Hanger, Engine, No.1[08.1999 - 04.2000] 1SZFE..SCP11 |
12281-23020 |
US $25.19 |
||
| replacement | |||||
|
12281A
|
12281A
12281-23021 Hanger, Engine, No.1[08.1999 - 04.2000] 1SZFE..SCP11 |
12281-23021 |
US $25.04 |
||
|
12281A
|
12281A
12281-23021 Hanger, Engine, No.1[04.2000 - 08.2002] 1SZFE..SCP11 |
12281-23021 |
US $25.04 |
||
|
12281A
|
12281A
12281-23040 Hanger, Engine, No.1[10.2002 -] 1SZFE..SCP11 |
12281-23040 |
US $20.82 |
||
|
12282D
|
12282D
12282-23010 Hanger, Engine, No.2[08.1999 - 08.2002] 1SZFE..SCP11 |
12282-23010 |
US $25.04 |
||
|
12282D
|
12282D
12282-23030 Hanger, Engine, No.2[10.2002 -] 1SZFE..SCP11 |
12282-23030 |
US $20.82 |
||
|
15301B
|
15301B
15301-23020 Gage Sub-Assy, Oil Level[08.1999 - 08.2002] 1SZFE..SCP11 |
15301-23020 |
from US $14.20 |
||
|
15678A
|
15678A
15678-21010 Filter, Oil Control Valve[08.1999 - 08.2002] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
15678-21010 |
from US $5.34 |
||
|
91551G0620
|
91551G0620
91551-G0620 New Genuine Part |
91551-G0620 |
US $0.96 |
||
|
1624123010
|
1624123010
16241-23010 Bolt, Stud(for Water Pump Coupling) |
16241-23010 |
US $5.68 |
||
|
9011606161
|
9011606161
90116-06161 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06161 |
US $2.04 |
||
|
9017606028
|
9017606028
90176-06028 Nut, Cap(For Cylinder Head Cover) |
90176-06028 |
from US $1.09 |
||
|
9167180618
|
9167180618
91671-80618 BOLT FLANGE WWSHER |
91671-80618 |
US $0.96 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.88 |
||
