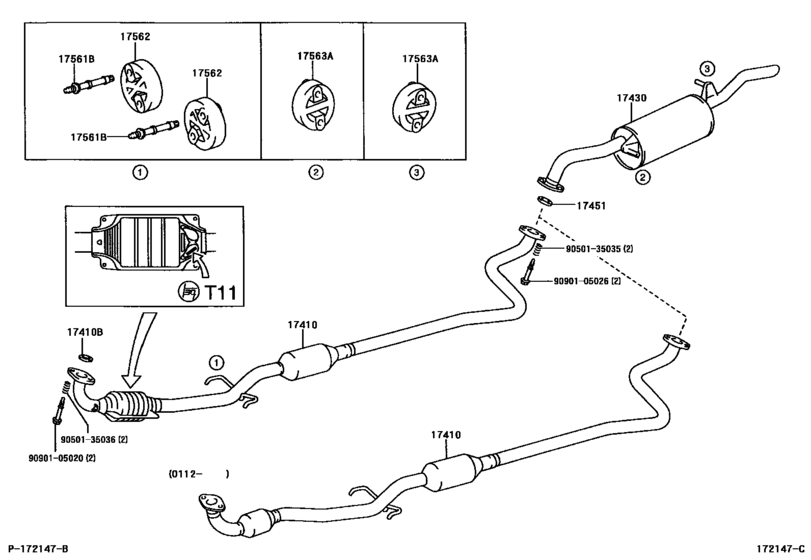

Exhaust Pipe ([08.1999 - ] (9908- )1SZFE) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-23080 Pipe Assy, Exhaust, Front[08.1999 - 03.2001] 1SZFE..SCP11 ｱﾘ(MARK) |
17410-23080 |
US $1,587.04 |
||
|
17410
|
17410
17410-23090 Pipe Assy, Exhaust, Front[03.2001 - 12.2001] 1SZFE..SCP11 ﾅｼ(MARK) |
17410-23090 |
US $1,269.63 |
||
|
17410
|
17410
17410-23101 Pipe Assy, Exhaust, Front[12.2001 - 08.2002] 1SZFE..SCP11 |
17410-23101 |
US $1,167.71 |
||
|
17410
|
17410
17410-23140 Pipe Assy, Exhaust, Front[12.2002 -] 1SZFE..SCP11 |
17410-23140 |
US $1,247.79 |
||
|
17410B
|
17410B
17451-22020 Gasket, Exhaust Pipe[12.2001 - 08.2002] 1SZFE..SCP11 |
17451-22020 |
from US $29.52 |
||
|
17410B
|
17410B
90917-06080 Gasket, Exhaust Pipe[08.1999 - 12.2001] 1SZFE..SCP11 |
90917-06080 |
from US $16.03 |
||
|
17430
|
17430
17430-23040 Pipe Assy, Exhaust, Tail[08.1999 - 08.2002] 1SZFE..SCP11 |
17430-23040 |
US $384.38 |
||
| replacement | |||||
|
17430
|
17430
17430-23050 Pipe Assy, Exhaust, Tail[08.1999 - 08.2002] 1SZFE..SCP11 |
17430-23050 |
US $347.98 |
||
|
17430
|
17430
17430-23050 Pipe Assy, Exhaust, Tail[08.2002 -] 1SZFE..SCP11 |
17430-23050 |
US $347.98 |
||
|
17451
|
17451
17451-23010 Gasket, Exhaust Pipe, Center[08.1999 - 08.2002] 1SZFE..SCP11 |
17451-23010 |
US $17.48 |
||
|
17561B
|
17561B
17584-23020 Support, Exhaust Pipe, No.1[08.1999 - 08.2002] 1SZFE..SCP11 |
17584-23020 |
US $9.32 |
||
|
17562
|
17562
17562-23040 Support, Exhaust Pipe, No.2[08.1999 - 08.2002] 1NZFE,1SZFE..NCP12,SCP11 |
17562-23040 |
US $25.08 |
||
|
17563A
|
17563A
17565-46040 Support, Exhaust Pipe, No.1[08.1999 - 08.2002] 1SZFE..SCP11 |
17565-46040 |
from US $13.38 |
||
|
9050135035
|
9050135035
90501-35035 Spring, Exhaust Pipe |
90501-35035 |
from US $3.20 |
||
|
9050135036
|
9050135036
90501-35036 SPRING COMPRESSION |
90501-35036 |
from US $3.20 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9090105026
|
9090105026
90901-05026 Bolt, Exhaust Pipe Support |
90901-05026 |
from US $4.96 |
||
