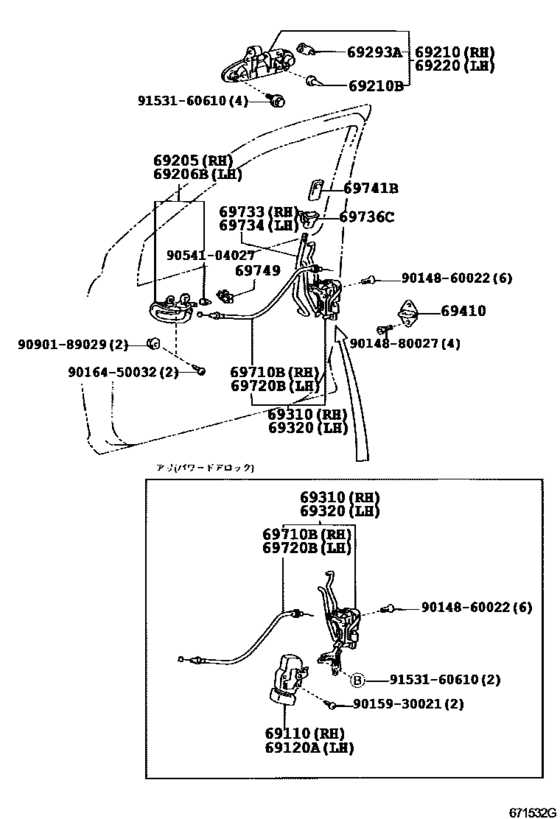

Front Door Lock & Handle ([08.1999 - ] (9908- )) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69110
|
69110
69110-52010 Actuator Assy, Front Door Lock, Rh[08.1999 - 08.2002] NCP1#,SCP11..F |
69110-52010 |
US $120.85 |
||
|
69110
|
69110
69110-52020 Actuator Assy, Front Door Lock, Rh[08.1999 - 08.2002] NCP1#..X; NCP16,SCP11..F ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
69110-52020 |
US $133.20 |
||
|
69120A
|
69120A
69120-52020 Actuator Assy, Front Door Lock, Lh[08.1999 - 08.2002] NCP1#,SCP11 |
69120-52020 |
US $133.20 |
||
|
69205
|
69205
69205-52010-B1 Handle Sub-Assy, Front Door Inside, Rh[08.1999 - 08.2002] NCP1#,SCP11 AMETHYST,TRIM9# |
69205-52010-B1 |
US $26.94 |
||
| replacement | |||||
|
69205
|
69205
69205-52010-B3 Handle Sub-Assy, Front Door Inside, Rh[08.1999 - 08.2002] NCP1#,SCP11 AMETHYST,TRIM9# |
69205-52010-B3 |
US $26.94 |
||
|
69205
|
69205
69205-52020-B7 Handle Sub-Assy, Front Door Inside, Rh[08.2002 - 08.2003] NCP12..X;NCP16,SCP11 SILVER,TRIM4#,クロム メッキ |
69205-52020-B7 |
US $26.94 |
||
|
69205
|
69205
69205-52040-E1
Handle Sub-Assy, Door Inside, Rh
[08.2002 - 12.2005] NCP1#,SCP11..F SANDAL WOOD,TRIM4# |
69205-52040-E1 |
— | ||
|
69206B
|
69206B
69206-52010-B1 Handle Sub-Assy, Front Door Inside, Lh[08.1999 - 08.2002] NCP1#,SCP11 AMETHYST,TRIM9# |
69206-52010-B1 |
US $26.94 |
||
|
69206B
|
69206B
69206-52020-B7 Handle Sub-Assy, Front Door Inside, Lh[08.2002 - 08.2003] NCP12..X;NCP16,SCP11 SILVER,TRIM4#,クロム メッキ |
69206-52020-B7 |
US $26.94 |
||
|
69206B
|
69206B
69206-52040-E1
Handle Sub-Assy, Door Inside, Lh
[08.2002 - 12.2005] NCP1#,SCP11..F SANDAL WOOD,TRIM4# |
69206-52040-E1 |
— | ||
|
69210
|
69210
69210-52010 Handle Assy, Front Door, Outside Rh[08.1999 - 08.2002] SCP11 ブラック |
69210-52010 |
US $59.29 |
||
|
69210
|
69210
69210-52020-A0 Handle Assy, Front Door, Outside Rh[08.1999 - 01.2001] NCP1#,SCP11 SUPER WHITE 2,040 |
69210-52020-A0 |
US $85.84 |
||
|
69210
|
69210
69210-52020-A1 Handle Assy, Front Door, Outside Rh[01.2001 - 08.2002] NCP1#,SCP11 WHITE,068 |
69210-52020-A1 |
US $85.84 |
||
|
69210
|
69210
69210-52020-A2 Handle Assy, Front Door, Outside Rh[08.2001 - 08.2002] NCP16,SCP11..F L ﾊﾟﾂｹ-ｼﾞﾘﾐﾃﾂﾄﾞ *(A),WHITE PEARL MC,057; NCP12..X;NCP16,SCP11 ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(Q),WHITE PEARL MC,057 |
69210-52020-A2 |
US $78.62 |
||
|
69210
|
69210
69210-52020-B0 Handle Assy, Front Door, Outside Rh[08.1999 - 08.2002] NCP1#,SCP11 SILVER ME,199 |
69210-52020-B0 |
US $85.84 |
||
|
69210
|
69210
69210-52020-B2
Handle Assy, Front Door, Outside Rh
[08.2003 - 11.2005] NCP1#,SCP11 GRAY M.M.,1E3 |
69210-52020-B2 |
— | ||
|
69210
|
69210
69210-52020-B3 Handle Assy, Front Door, Outside Rh[08.2002 - 11.2005] NCP1#,SCP11 SILVER M.M.,1E7 |
69210-52020-B3 |
US $85.84 |
||
|
69210
|
69210
69210-52020-D1 Handle Assy, Front Door, Outside Rh[08.2000 - 08.2002] NCP1#,SCP11 PALE ROSE ME.OP.,3N7 |
69210-52020-D1 |
US $85.84 |
||
|
69210
|
69210
69210-52020-D2 Handle Assy, Front Door, Outside Rh[08.1999 - 08.2002] NCP1#,SCP11 SUPER RED 5,3P0 |
69210-52020-D2 |
US $85.84 |
||
|
69210
|
69210
69210-52020-D4 Handle Assy, Front Door, Outside Rh[08.2002 - 11.2005] NCP1#,SCP11 RED M.M.,3P1 |
69210-52020-D4 |
US $85.84 |
||
|
69210
|
69210
69210-52020-E0 Handle Assy, Front Door, Outside Rh[08.2002 - 11.2005] NCP1#,SCP11 BEIGE ME.,4R0 |
69210-52020-E0 |
US $78.62 |
||
|
69210
|
69210
69210-52020-F1 Handle Assy, Front Door, Outside Rh[08.1999 - 08.2002] NCP1#,SCP11 CHAMPAGNE ME.,583 |
69210-52020-F1 |
US $77.17 |
||
|
69210
|
69210
69210-52020-G0 Handle Assy, Front Door, Outside Rh[08.1999 - 08.2002] NCP1#,SCP11 DK.GREEN MC.,6R4 |
69210-52020-G0 |
US $85.84 |
||
|
69210
|
69210
69210-52020-H1 Handle Assy, Front Door, Outside Rh[08.2002 - 11.2005] NCP1#,SCP11 LT.AQUA ME.OP.,761 |
69210-52020-H1 |
US $78.62 |
||
|
69210
|
69210
69210-52020-J0 Handle Assy, Front Door, Outside Rh[08.1999 - 01.2001] NCP1#,SCP11 DK.BLUE MC.,8K8 |
69210-52020-J0 |
US $85.84 |
||
|
69210
|
69210
69210-52020-J4 Handle Assy, Front Door, Outside Rh[01.2001 - 08.2002] NCP1#,SCP11 DK.BLUE M.M.,8P4 |
69210-52020-J4 |
US $85.84 |
||
|
69210B
|
69210B
90541-04018 Cushion(For Front Door Inside Handle)[08.1999 - 08.2002] NCP1#,SCP11 |
90541-04018 |
US $2.56 |
||
|
69220
|
69220
69220-52010 Handle Assy, Front Door Outside, Lh[08.1999 - 08.2002] SCP11 ブラック（塗装無し） |
69220-52010 |
from US $59.29 |
||
|
69220
|
69220
69220-52020-A0 Handle Assy, Front Door Outside, Lh[08.1999 - 01.2001] NCP1#,SCP11 SUPER WHITE 2,040 |
69220-52020-A0 |
US $85.84 |
||
|
69220
|
69220
69220-52020-A1 Handle Assy, Front Door Outside, Lh[01.2001 - 08.2002] NCP1#,SCP11 WHITE,068 |
69220-52020-A1 |
US $85.84 |
||
|
69220
|
69220
69220-52020-A2 Handle Assy, Front Door Outside, Lh[08.2001 - 08.2002] NCP16,SCP11..F L ﾊﾟﾂｹ-ｼﾞﾘﾐﾃﾂﾄﾞ *(A),WHITE PEARL MC,057; NCP12..X;NCP16,SCP11 ﾌﾟﾚﾐｱﾑﾊﾞ-ｼﾞﾖﾝ *(Q),WHITE PEARL MC,057 |
69220-52020-A2 |
US $71.28 |
||
|
69220
|
69220
69220-52020-B0 Handle Assy, Front Door Outside, Lh[08.1999 - 08.2002] NCP1#,SCP11 SILVER ME,199 |
69220-52020-B0 |
US $85.84 |
||
|
69220
|
69220
69220-52020-B2 Handle Assy, Front Door Outside, Lh[08.2003 - 11.2005] NCP1#,SCP11 GRAY M.M.,1E3 |
69220-52020-B2 |
US $71.28 |
||
|
69220
|
69220
69220-52020-B3 Handle Assy, Front Door Outside, Lh[08.2002 - 11.2005] NCP1#,SCP11 SILVER M.M.,1E7 |
69220-52020-B3 |
US $85.84 |
||
|
69220
|
69220
69220-52020-D1 Handle Assy, Front Door Outside, Lh[08.2000 - 08.2002] NCP1#,SCP11 PALE ROSE ME.OP.,3N7 |
69220-52020-D1 |
US $85.84 |
||
|
69220
|
69220
69220-52020-D2 Handle Assy, Front Door Outside, Lh[08.1999 - 08.2002] NCP1#,SCP11 SUPER RED 5,3P0 |
69220-52020-D2 |
US $85.84 |
||
|
69220
|
69220
69220-52020-D4 Handle Assy, Front Door Outside, Lh[08.2002 - 11.2005] NCP1#,SCP11 RED M.M.,3P1 |
69220-52020-D4 |
US $85.84 |
||
|
69220
|
69220
69220-52020-E0 Handle Assy, Front Door Outside, Lh[08.2002 - 11.2005] NCP1#,SCP11 BEIGE ME.,4R0 |
69220-52020-E0 |
US $71.28 |
||
|
69220
|
69220
69220-52020-F1 Handle Assy, Front Door Outside, Lh[08.1999 - 08.2002] NCP1#,SCP11 CHAMPAGNE ME.,583 |
69220-52020-F1 |
US $71.28 |
||
|
69220
|
69220
69220-52020-G0 Handle Assy, Front Door Outside, Lh[08.1999 - 08.2002] NCP1#,SCP11 DK.GREEN MC.,6R4 |
69220-52020-G0 |
US $85.84 |
||
|
69220
|
69220
69220-52020-H1 Handle Assy, Front Door Outside, Lh[08.2002 - 11.2005] NCP1#,SCP11 LT.AQUA ME.OP.,761 |
69220-52020-H1 |
US $71.28 |
||
|
69220
|
69220
69220-52020-J0 Handle Assy, Front Door Outside, Lh[08.1999 - 01.2001] NCP1#,SCP11 DK.BLUE MC.,8K8 |
69220-52020-J0 |
US $85.84 |
||
|
69220
|
69220
69220-52020-J4 Handle Assy, Front Door Outside, Lh[01.2001 - 08.2002] NCP1#,SCP11 DK.BLUE M.M.,8P4 |
69220-52020-J4 |
US $85.84 |
||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[08.1999 - 08.2002] NCP1#,SCP11 左側 |
69293-12030 |
from US $2.09 |
||
|
69293A
|
69293A
69293-12040 Snap, Front Door Outside Handle[08.1999 - 08.2002] NCP1#,SCP11 右側 |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69310-52030 Lock Assy, Front Door, Rh[08.1999 - 08.2002] SCP11 ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
69310-52030 |
US $107.74 |
||
|
69310
|
69310
69310-52050 Lock Assy, Front Door, Rh[08.1999 - 12.2001] NCP1#,SCP11 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ) |
69310-52050 |
US $131.04 |
||
| replacement | |||||
|
69310
|
69310
69310-52240 Lock Assy, Front Door, Rh[08.1999 - 12.2001] NCP1#,SCP11 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ) |
69310-52240 |
US $118.80 |
||
|
69310
|
69310
69310-52240 Lock Assy, Front Door, Rh[12.2001 - 08.2002] NCP1#,SCP11 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ) |
69310-52240 |
US $118.80 |
||
|
69320
|
69320
69320-52030 Lock Assy, Front Door, Lh[08.1999 - 08.2002] SCP11 ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
69320-52030 |
US $107.74 |
||
|
69320
|
69320
69320-52050 Lock Assy, Front Door, Lh[08.1999 - 12.2001] NCP1#,SCP11 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ) |
69320-52050 |
US $131.04 |
||
| replacement | |||||
|
69320
|
69320
69320-52170 Lock Assy, Front Door, Lh[08.1999 - 12.2001] NCP1#,SCP11 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ) |
69320-52170 |
US $118.80 |
||
|
69320
|
69320
69320-52170 Lock Assy, Front Door, Lh[12.2001 - 08.2002] NCP1#,SCP11 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ) |
69320-52170 |
US $118.80 |
||
|
69410
|
69410
69410-47010 Plate Assy, Front Door Lock Striker[08.1999 - 08.2002] NCP1#,SCP11 |
69410-47010 |
US $16.11 |
||
|
69710B
|
69710B
69710-52020 Cable Assy, Front Door Lock Remote Control, Rh[08.1999 - 08.2002] NCP1#,SCP11 |
69710-52020 |
from US $7.72 |
||
|
69720B
|
69720B
69710-52020 Cable Assy, Front Door Lock Remote Control, Rh[08.1999 - 08.2002] NCP1#,SCP11 |
69710-52020 |
from US $7.72 |
||
|
69733
|
69733
69733-52020 Link, Front Door Inside Locking, Rh[08.1999 - 08.2002] NCP1#,SCP11 |
69733-52020 |
US $7.43 |
||
|
69734
|
69734
69734-52020
Link, Front Door Inside Locking, Lh
[08.1999 - 08.2002] NCP1#,SCP11 |
69734-52020 |
— | ||
|
69736C
|
69736C
69736-12130 Guide, Front Door Locking Link[08.1999 - 08.2002] NCP1#,SCP11 |
69736-12130 |
US $8.67 |
||
|
69741B
|
69741B
69741-87003-B7 Knob, Front Door Lock Control[08.1999 - 08.2002] NCP1#,SCP11 AMETHYST,TRIM9# |
69741-87003-B7 |
US $4.66 |
||
| replacement | |||||
|
69741B
|
69741B
69741-87003-B8 Knob, Front Door Lock Control (Dark Gray)[08.1999 - 08.2002] NCP1#,SCP11 AMETHYST,TRIM9# |
69741-87003-B8 |
US $5.07 |
||
|
69741B
|
69741B
69741-87003-E1 Knob, Front Door Lock Control[08.2002 - 12.2005] NCP1#,SCP11 SANDAL WOOD,TRIM4# |
69741-87003-E1 |
US $3.79 |
||
|
69749
|
69749
69749-52010 Clamp, Front Door Lock Link[08.1999 - 08.2002] NCP1#,SCP11 |
69749-52010 |
US $0.55 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.49 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9015930021
|
9015930021
90159-30021 New Genuine Part |
90159-30021 |
US $1.60 |
||
|
9016450032
|
9016450032
90164-50032 Screw |
90164-50032 |
US $1.44 |
||
|
9054104027
|
9054104027
90541-04027 Cushion(For Front Door Inside Handle) |
90541-04027 |
from US $1.60 |
||
|
9090189029
|
9090189029
90901-89029 GROMMET SCREW |
90901-89029 |
US $1.05 |
||
|
9153160610
|
9153160610
91531-60610 New Genuine Part |
91531-60610 |
US $1.76 |
||
