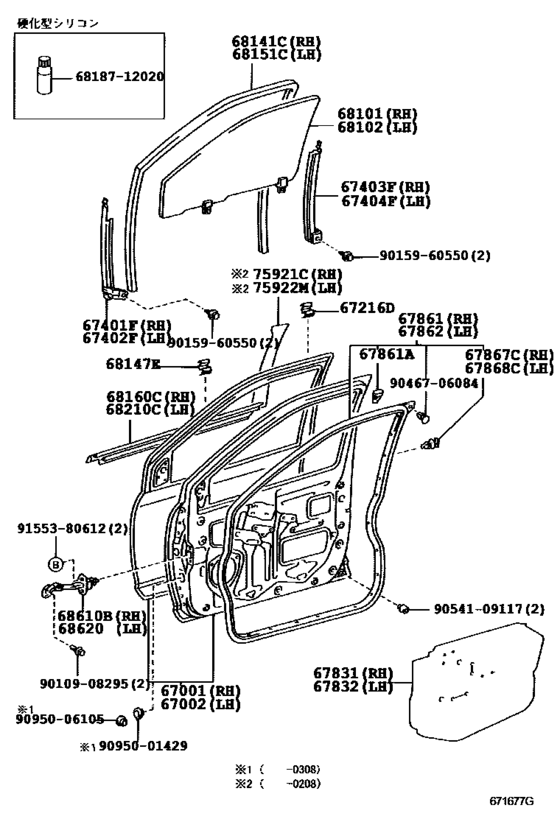

Front Door Panel & Glass ([08.1999 - ] (9908- )) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-52010 Panel Sub-Assy, Front Door, Rh[08.1999 - 11.1999] NCP1#,SCP11 |
67001-52010 |
US $796.43 |
||
| replacement | |||||
|
67001
|
67001
67001-52011 Panel Sub-Assy, Front Door, Rh[08.1999 - 11.1999] NCP1#,SCP11 |
67001-52011 |
US $663.94 |
||
|
67001
|
67001
67001-52011 Panel Sub-Assy, Front Door, Rh[11.1999 - 08.2002] NCP1#,SCP11 |
67001-52011 |
US $663.94 |
||
|
67002
|
67002
67002-52010 Panel Sub-Assy, Front Door, Lh[08.1999 - 11.1999] NCP1#,SCP11 |
67002-52010 |
US $796.43 |
||
| replacement | |||||
|
67002
|
67002
67002-52011 Panel Sub-Assy, Front Door, Lh[08.1999 - 11.1999] NCP1#,SCP11 |
67002-52011 |
from US $663.94 |
||
|
67002
|
67002
67002-52011 Panel Sub-Assy, Front Door, Lh[11.1999 - 08.2002] NCP1#,SCP11 |
67002-52011 |
from US $663.94 |
||
|
67216D
|
67216D
67216-52010 Stopper, Front Door Glass, Upper No.2[08.1999 - 08.2002] NCP1#,SCP11 |
67216-52010 |
US $3.49 |
||
|
67401F
|
67401F
67401-52010 Frame Sub-Assy, Front Door, Front Lower Rh[08.1999 - 03.2002] NCP1#,SCP11 |
67401-52010 |
US $27.96 |
||
| replacement | |||||
|
67401F
|
67401F
67401-52011 Frame Sub-Assy, Front Door, Front Lower Rh[08.1999 - 03.2002] NCP1#,SCP11 |
67401-52011 |
US $27.08 |
||
|
67401F
|
67401F
67401-52011 Frame Sub-Assy, Front Door, Front Lower Rh[03.2002 - 08.2002] NCP1#,SCP11 |
67401-52011 |
US $27.08 |
||
|
67402F
|
67402F
67402-52010 Frame Sub-Assy, Front Door, Front Lower Lh[08.1999 - 03.2002] NCP1#,SCP11 |
67402-52010 |
US $27.96 |
||
| replacement | |||||
|
67402F
|
67402F
67402-52011 Frame Sub-Assy, Front Door, Front Lower Lh[08.1999 - 03.2002] NCP1#,SCP11 |
67402-52011 |
US $23.15 |
||
|
67402F
|
67402F
67402-52011 Frame Sub-Assy, Front Door, Front Lower Lh[03.2002 - 08.2002] NCP1#,SCP11 |
67402-52011 |
US $23.15 |
||
|
67403F
|
67403F
67403-52010 Frame Sub-Assy, Front Door, Rear Lower Rh[08.1999 - 08.2002] NCP1#,SCP11 |
67403-52010 |
US $19.66 |
||
|
67404F
|
67404F
67404-52010 Frame Sub-Assy, Front Door, Rear Lower Lh[08.1999 - 08.2002] NCP1#,SCP11 |
67404-52010 |
US $19.66 |
||
|
67831
|
67831
67831-52010 Cover, Front Door Service Hole, Rh[08.1999 - 08.2002] NCP1#,SCP11 |
67831-52010 |
US $11.01 |
||
|
67832
|
67832
67831-52010 Cover, Front Door Service Hole, Rh[08.1999 - 08.2002] NCP1#,SCP11 |
67831-52010 |
US $11.01 |
||
|
67861
|
67861
67861-52010 Weatherstrip, Front Door, Rh[08.1999 - 08.2002] NCP1#,SCP11 |
67861-52010 |
US $110.07 |
||
|
67861A
|
67861A
67867-52010 Retainer(For Front Door Weatherstrip)[08.1999 - 09.1999] NCP1#,SCP11 |
67867-52010 |
US $1.60 |
||
|
67861A
|
67861A
67867-52020 Retainer(For Front Door Weatherstrip)[09.1999 - 12.2000] NCP1#,SCP11 右側 |
67867-52020 |
US $1.60 |
||
|
67861A
|
67861A
67867-52030 Retainer(For Front Door Weatherstrip)[09.1999 - 12.2000] NCP1#,SCP11 左側 |
67867-52030 |
US $1.60 |
||
|
67862
|
67862
67862-52010 Weatherstrip, Front Door, Lh[08.1999 - 08.2002] NCP1#,SCP11 |
67862-52010 |
US $94.64 |
||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[12.2000 - 08.2002] NCP1#,SCP11 |
67867-12150 |
from US $1.60 |
||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[12.2000 - 08.2002] NCP1#,SCP11 |
67867-12150 |
from US $1.60 |
||
|
68101
|
68101
68110-52010 Glass Sub-Assy, Front Door, Rh[08.1999 - 08.2002] SCP11 ＊ＴＥＭ，厚さ＝３．１，グリーン |
68110-52010 |
US $243.15 |
||
| replacement | |||||
|
68101
|
68101
68110-52330
Glass Sub-Assy, Front Door, Rh
[08.1999 - 08.2002] SCP11 ＊ＴＥＭ，厚さ＝３．１，グリーン |
68110-52330 |
— | ||
|
68101
|
68101
68110-52020 Glass Sub-Assy, Front Door, Rh[08.1999 - 08.2002] NCP1#,SCP11 ＊ＵＶＣＴ，厚さ＝３．１，グリーン |
68110-52020 |
US $269.36 |
||
| replacement | |||||
|
68101
|
68101
68110-52021 Glass Sub-Assy, Front Door, Rh[08.1999 - 08.2002] NCP1#,SCP11 ＊ＵＶＣＴ，厚さ＝３．１，グリーン |
68110-52021 |
US $269.36 |
||
|
68102
|
68102
68120-52010 Glass Sub-Assy, Front Door, Lh[08.1999 - 08.2002] SCP11 ＊ＴＥＭ，厚さ＝３．１，グリーン |
68120-52010 |
US $243.15 |
||
| replacement | |||||
|
68102
|
68102
68120-52330 Glass Sub-Assy, Front Door, Lh[08.1999 - 08.2002] SCP11 ＊ＴＥＭ，厚さ＝３．１，グリーン |
68120-52330 |
US $243.15 |
||
|
68102
|
68102
68120-52020 Glass Sub-Assy, Front Door, Lh[08.1999 - 08.2002] NCP1#,SCP11 ＊ＵＶＣＴ，厚さ＝３．１，グリーン |
68120-52020 |
US $269.36 |
||
| replacement | |||||
|
68102
|
68102
68120-52021 Glass Sub-Assy, Front Door, Lh[08.1999 - 08.2002] NCP1#,SCP11 ＊ＵＶＣＴ，厚さ＝３．１，グリーン |
68120-52021 |
US $269.36 |
||
|
68141C
|
68141C
68141-52010
Run, Front Door Glass, Rh
[08.1999 - 05.2002] NCP1#,SCP11 |
68141-52010 |
— | ||
| replacement | |||||
|
68141C
|
68141C
68141-52130 Run, Front Door Glass, Rh[08.1999 - 05.2002] NCP1#,SCP11 |
68141-52130 |
US $76.96 |
||
|
68141C
|
68141C
68141-52011 Run, Front Door Glass, Rh[05.2002 - 08.2002] NCP1#,SCP11 |
68141-52011 |
US $71.14 |
||
|
68147E
|
68147E
68147-52010 Stop, Front Door Glass, Upper[08.1999 - 08.2002] NCP1#,SCP11 |
68147-52010 |
US $3.49 |
||
|
68151C
|
68151C
68151-52010
Run, Front Door Glass, Lh
[08.1999 - 05.2002] NCP1#,SCP11 |
68151-52010 |
— | ||
| replacement | |||||
|
68151C
|
68151C
68151-52120 Run, Front Door Glass, Lh[08.1999 - 05.2002] NCP1#,SCP11 |
68151-52120 |
US $70.09 |
||
|
68151C
|
68151C
68151-52011 Run, Front Door Glass, Lh[05.2002 - 08.2002] NCP1#,SCP11 |
68151-52011 |
US $64.21 |
||
|
68160C
|
68160C
68160-52010 Weatherstrip Assy, Front Door Glass, Outer Rh[08.1999 - 08.2002] NCP1#,SCP11 |
68160-52010 |
from US $34.89 |
||
|
68210C
|
68210C
68210-52010 Weatherstrip Assy, Front Door Glass, Outer Lh[08.1999 - 08.2002] NCP1#,SCP11 |
68210-52010 |
from US $36.11 |
||
|
68610B
|
68610B
68610-52010 Check Assy, Front Door, Rh[08.1999 - 08.2002] NCP1#,SCP11 |
68610-52010 |
US $56.24 |
||
|
68620
|
68620
68620-52010 Check Assy, Front Door, Lh[08.1999 - 08.2002] NCP1#,SCP11 |
68620-52010 |
US $56.24 |
||
|
75921C
|
75921C
75921-52020 Tape, Black Out, No.1 Rh[08.1999 - 06.2002] NCP1#,SCP11 |
75921-52020 |
US $90.27 |
||
| replacement | |||||
|
75921C
|
75921C
75921-52021 Tape, Black Out, No.1 Rh[08.1999 - 06.2002] NCP1#,SCP11 |
75921-52021 |
US $24.53 |
||
|
75921C
|
75921C
75921-52021 Tape, Black Out, No.1 Rh[06.2002 - 08.2002] NCP1#,SCP11 |
75921-52021 |
US $24.53 |
||
|
75922M
|
75922M
75922-52020 Tape, Black Out, No.1 Lh[08.1999 - 06.2002] NCP1#,SCP11 |
75922-52020 |
US $90.27 |
||
| replacement | |||||
|
75922M
|
75922M
75922-52021
Tape, Black Out, No.1 Lh
[08.1999 - 06.2002] NCP1#,SCP11 |
75922-52021 |
— | ||
|
75922M
|
75922M
75922-52021
Tape, Black Out, No.1 Lh
[06.2002 - 08.2002] NCP1#,SCP11 |
75922-52021 |
— | ||
|
6818712020
|
6818712020
68187-12020 Weatherstrip, Side Window Glass |
68187-12020 |
US $18.85 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.90 |
||
|
9015960550
|
9015960550
90159-60550 New Genuine Part |
90159-60550 |
US $1.44 |
||
|
9046706084
|
9046706084
90467-06084 Clip(For Headlamp Cover Seal) |
90467-06084 |
from US $1.28 |
||
|
9054109117
|
9054109117
90541-09117 Cushion, Radiator Support |
90541-09117 |
from US $1.60 |
||
|
9095001429
|
9095001429
90950-01429 PLUG |
90950-01429 |
US $1.76 |
||
|
9095006105
|
9095006105
90950-06105 Seal, Front Door Front Lower Frame Cover |
90950-06105 |
US $1.76 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.72 |
||
