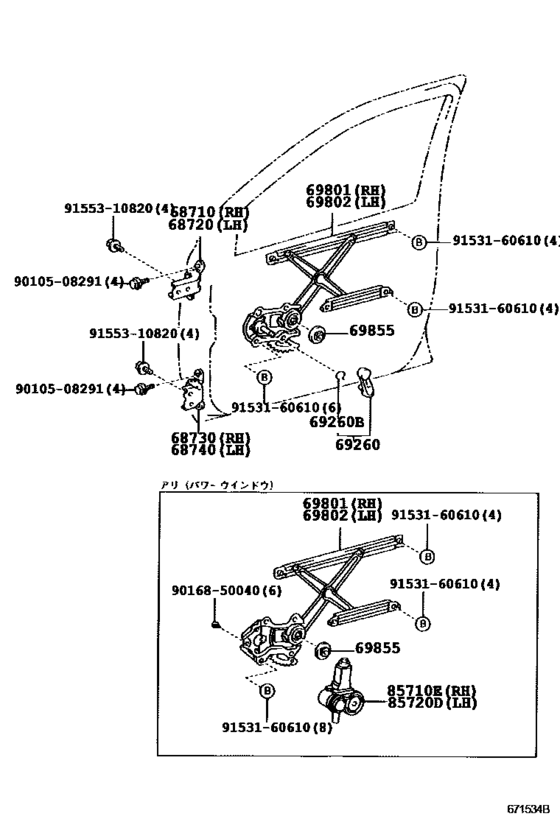

Front Door Window Regulator & Hinge ([08.1999 - ] (9908- )) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-52010 Hinge Assy, Front Door, Upper Rh[08.1999 - 08.2002] NCP1#,SCP11 |
68710-52010 |
US $54.72 |
||
|
68720
|
68720
68720-52010 Hinge Assy, Front Door, Upper Lh[08.1999 - 08.2002] NCP1#,SCP11 |
68720-52010 |
from US $34.22 |
||
|
68730
|
68730
68730-52010 Hinge Assy, Front Door, Lower Rh[08.1999 - 08.2002] NCP1#,SCP11 |
68730-52010 |
from US $31.16 |
||
|
68740
|
68740
68740-52010 Hinge Assy, Front Door, Lower Lh[08.1999 - 08.2002] NCP1#,SCP11 |
68740-52010 |
from US $28.72 |
||
|
69260
|
69260
69260-52010-B1 Handle Assy, Front Door Window Regulator[08.1999 - 12.2001] SCP11 LT.AMETHYST,TRIM9# |
69260-52010-B1 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-52010-B3 Handle Assy, Front Door Window Regulator[08.1999 - 12.2001] SCP11 LT.AMETHYST,TRIM9# |
69260-52010-B3 |
US $18.05 |
||
|
69260
|
69260
69260-52010-E0 Handle Assy, Front Door Window Regulator[08.2002 - 12.2005] SCP11 MD.NEUTRAL BONE,TRIM4# |
69260-52010-E0 |
US $18.05 |
||
|
69260B
|
69260B
90520-01005 Ring, Shaft Snap(For Front Door Window Regulator Handle)[08.1999 - 08.2002] SCP11 |
90520-01005 |
from US $0.98 |
||
|
69801
|
69801
69801-52010 Regulator Sub-Assy, Front Door Window, RhMotor is not included [08.1999 - 08.2002] NCP1#,SCP11 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
69801-52010 |
US $93.24 |
||
|
69801
|
69801
69810-52020 Regulator Sub-Assy, Front Door Window, Rh (Manual)[08.1999 - 08.2002] SCP11 |
69810-52020 |
US $84.45 |
||
|
69802
|
69802
69802-52010 Regulator Sub-Assy, Front Door Window, LhMotor is not included [08.1999 - 08.2002] NCP1#,SCP11 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
69802-52010 |
US $89.11 |
||
|
69802
|
69802
69820-52020 Regulator Sub-Assy, Front Door Window, Lh (Manual)[08.1999 - 08.2002] SCP11 |
69820-52020 |
from US $84.45 |
||
|
69855
|
69855
69855-20010 Cover, Door Window Regulator Gear[08.1999 - 08.2002] NCP1#,SCP11 |
69855-20010 |
US $3.84 |
||
|
85710E
|
85710E
85710-52010 Motor Assy, Power Window Regulator, Rh[08.1999 - 08.2002] NCP1#,SCP11 |
85710-52010 |
US $466.20 |
||
|
85720D
|
85720D
85720-52020 Motor Assy, Power Window Regulator, Lh[08.1999 - 08.2002] NCP1#,SCP11 |
85720-52020 |
US $361.67 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $1.03 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
||
|
9153160610
|
9153160610
91531-60610 New Genuine Part |
91531-60610 |
US $1.76 |
||
|
9155310820
|
9155310820
91553-10820 New Genuine Part |
91553-10820 |
US $1.28 |
||
