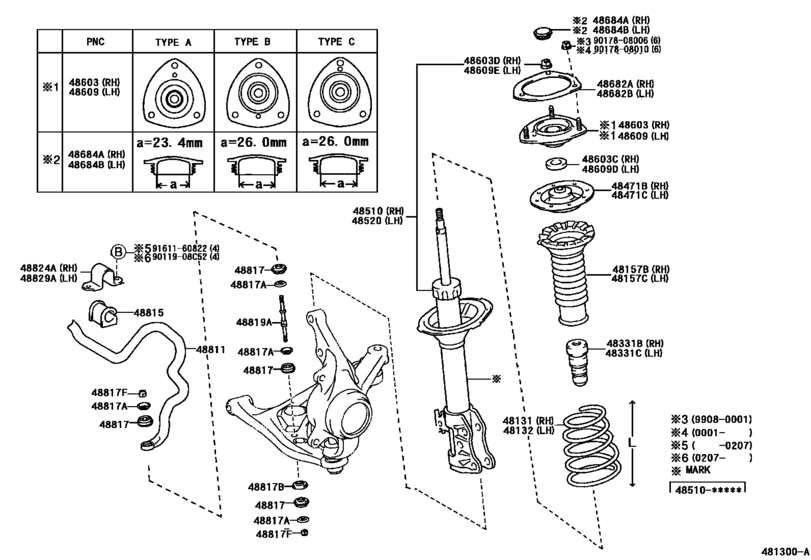

Front Spring & Shock Absorber ([08.1999 - ] (9908- )) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-52010 Spring, Front Coil, Rh[08.1999 - 08.2002] SCP11 |
48131-52010 |
US $109.20 |
||
|
48131
|
48131
48131-52580 Spring, Front Coil, Rh[12.2002 -] SCP11 |
48131-52580 |
US $110.66 |
||
|
48132
|
48132
48131-52010 Spring, Front Coil, Rh[08.1999 - 08.2002] SCP11 |
48131-52010 |
US $109.20 |
||
|
48132
|
48132
48131-52580 Spring, Front Coil, Rh[12.2002 -] SCP11 |
48131-52580 |
US $110.66 |
||
|
48157B
|
48157B
48157-52010 Insulator, Front Coil Spring, Upper[08.1999 - 08.2002] NCP1#,SCP11 |
48157-52010 |
from US $14.96 |
||
|
48157C
|
48157C
48157-52010 Insulator, Front Coil Spring, Upper[08.1999 - 08.2002] NCP1#,SCP11 |
48157-52010 |
from US $14.96 |
||
|
48331B
|
48331B
48331-52020 Bumper, Front Spring, Rh[08.1999 - 08.2002] NCP12,SCP11 MARK 48510-5217* (PNC 48510) : ｲﾗｽﾄｻﾝｼﾖｳ |
48331-52020 |
US $16.42 |
||
|
48331C
|
48331C
48331-52020 Bumper, Front Spring, Rh[08.1999 - 08.2002] NCP12,SCP11 MARK 48510-5217* (PNC 48520) : ｲﾗｽﾄｻﾝｼﾖｳ |
48331-52020 |
US $16.42 |
||
|
48471B
|
48471B
48044-52010 Seat, Front Coil Spring, Upper[08.1999 - 08.2002] NCP1#,SCP11 |
48044-52010 |
US $16 |
||
|
48471C
|
48471C
48044-52010 Seat, Front Coil Spring, Upper[08.1999 - 08.2002] NCP1#,SCP11 |
48044-52010 |
US $16 |
||
|
48510
|
48510
48510-59255 Absorber Assy, Shock, Front Rh[08.1999 - 01.2000] NCP12,SCP11 マーク ４８５１０−５２１７０ |
48510-59255 |
US $301.39 |
||
| replacement | |||||
|
48510
|
48510
48510-59259 Absorber Assy, Shock, Front Rh[08.1999 - 01.2000] NCP12,SCP11 マーク ４８５１０−５２１７０ |
48510-59259 |
US $302.85 |
||
|
48510
|
48510
48510-59256 Absorber Assy, Shock, Front Rh[01.2000 - 06.2000] NCP12,SCP11 マーク ４８５１０−５２１７１ |
48510-59256 |
US $301.39 |
||
| replacement | |||||
|
48510
|
48510
48510-59259 Absorber Assy, Shock, Front Rh[01.2000 - 06.2000] NCP12,SCP11 マーク ４８５１０−５２１７１ |
48510-59259 |
US $302.85 |
||
|
48510
|
48510
48510-59257 Absorber Assy, Shock, Front Rh[06.2000 - 05.2002] NCP12,SCP11 マーク ４８５１０−５２１７２ |
48510-59257 |
US $301.39 |
||
| replacement | |||||
|
48510
|
48510
48510-59259 Absorber Assy, Shock, Front Rh[06.2000 - 05.2002] NCP12,SCP11 マーク ４８５１０−５２１７２ |
48510-59259 |
US $302.85 |
||
|
48510
|
48510
48510-59258 Absorber Assy, Shock, Front Rh[05.2002 - 08.2002] NCP12,SCP11 マーク ４８５１０−５２１７３ |
48510-59258 |
US $301.39 |
||
| replacement | |||||
|
48510
|
48510
48510-59259 Absorber Assy, Shock, Front Rh[05.2002 - 08.2002] NCP12,SCP11 マーク ４８５１０−５２１７３ |
48510-59259 |
US $302.85 |
||
|
48510
|
48510
48510-59259 Absorber Assy, Shock, Front Rh[08.2002 -] SCP11;NCP12..ATM;NCP12..MTM..F マーク ４８５１０−５２１７４ |
48510-59259 |
US $302.85 |
||
|
48520
|
48520
48510-59255 Absorber Assy, Shock, Front Rh[08.1999 - 01.2000] NCP12,SCP11 マーク ４８５１０−５２１７０ |
48510-59255 |
US $301.39 |
||
| replacement | |||||
|
48520
|
48520
48510-59259 Absorber Assy, Shock, Front Rh[08.1999 - 01.2000] NCP12,SCP11 マーク ４８５１０−５２１７０ |
48510-59259 |
US $302.85 |
||
|
48520
|
48520
48510-59256 Absorber Assy, Shock, Front Rh[01.2000 - 06.2000] NCP12,SCP11 マーク ４８５１０−５２１７１ |
48510-59256 |
US $301.39 |
||
| replacement | |||||
|
48520
|
48520
48510-59259 Absorber Assy, Shock, Front Rh[01.2000 - 06.2000] NCP12,SCP11 マーク ４８５１０−５２１７１ |
48510-59259 |
US $302.85 |
||
|
48520
|
48520
48510-59257 Absorber Assy, Shock, Front Rh[06.2000 - 05.2002] NCP12,SCP11 マーク ４８５１０−５２１７２ |
48510-59257 |
US $301.39 |
||
| replacement | |||||
|
48520
|
48520
48510-59259 Absorber Assy, Shock, Front Rh[06.2000 - 05.2002] NCP12,SCP11 マーク ４８５１０−５２１７２ |
48510-59259 |
US $302.85 |
||
|
48520
|
48520
48510-59258 Absorber Assy, Shock, Front Rh[05.2002 - 08.2002] NCP12,SCP11 マーク ４８５１０−５２１７３ |
48510-59258 |
US $301.39 |
||
| replacement | |||||
|
48520
|
48520
48510-59259 Absorber Assy, Shock, Front Rh[05.2002 - 08.2002] NCP12,SCP11 マーク ４８５１０−５２１７３ |
48510-59259 |
US $302.85 |
||
|
48520
|
48520
48510-59259 Absorber Assy, Shock, Front Rh[08.2002 -] SCP11;NCP12..ATM;NCP12..MTM..F マーク ４８５１０−５２１７４ |
48510-59259 |
US $302.85 |
||
|
48603
|
48603
48609-52010 Support Sub-Assy, Front Suspension, Rh[08.1999 - 01.2000] NCP12,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
48609-52010 |
US $70.32 |
||
| replacement | |||||
|
48603
|
48603
48609-52011 Support Sub-Assy, Front Suspension, Rh[08.1999 - 01.2000] NCP12,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
48609-52011 |
US $50.01 |
||
|
48603
|
48603
48609-52011 Support Sub-Assy, Front Suspension, Rh[01.2000 - 08.2002] NCP12,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
48609-52011 |
US $50.01 |
||
|
48603
|
48603
48609-52012 Support Sub-Assy, Front Suspension, Rh[12.2002 -] SCP11;NCP12..ATM;NCP12..MTM..F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
48609-52012 |
US $62.73 |
||
|
48603
|
48603
48609-52020 Support Sub-Assy, Front Suspension, Rh[08.1999 - 01.2000] SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
48609-52020 |
US $70.32 |
||
| replacement | |||||
|
48603
|
48603
48609-52021 Support Sub-Assy, Front Suspension, Rh[08.1999 - 01.2000] SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
48609-52021 |
from US $70.47 |
||
|
48603
|
48603
48609-52021 Support Sub-Assy, Front Suspension, Rh[01.2000 - 08.2002] SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
48609-52021 |
from US $70.47 |
||
|
48603C
|
48603C
90303-22002 Seal, Dust(For Front Suspension Support)[08.2000 - 08.2002] NCP1#,SCP11 |
90303-22002 |
from US $3.20 |
||
|
48603C
|
48603C
90303-22049 Seal, Dust(For Front Suspension Support)[08.1999 - 08.2000] NCP1#,SCP11 |
90303-22049 |
from US $3.71 |
||
|
48603D
|
48603D
90179-12145 Nut[08.1999 - 08.2002] NCP1#,SCP11 |
90179-12145 |
from US $0.96 |
||
|
48609
|
48609
48609-52010 Support Sub-Assy, Front Suspension, Rh[08.1999 - 01.2000] NCP12,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
48609-52010 |
US $70.32 |
||
| replacement | |||||
|
48609
|
48609
48609-52011 Support Sub-Assy, Front Suspension, Rh[08.1999 - 01.2000] NCP12,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
48609-52011 |
US $50.01 |
||
|
48609
|
48609
48609-52011 Support Sub-Assy, Front Suspension, Rh[01.2000 - 08.2002] NCP12,SCP11 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
48609-52011 |
US $50.01 |
||
|
48609
|
48609
48609-52012 Support Sub-Assy, Front Suspension, Rh[12.2002 -] SCP11;NCP12..ATM;NCP12..MTM..F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
48609-52012 |
US $62.73 |
||
|
48609
|
48609
48609-52020 Support Sub-Assy, Front Suspension, Rh[08.1999 - 01.2000] SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
48609-52020 |
US $70.32 |
||
| replacement | |||||
|
48609
|
48609
48609-52021 Support Sub-Assy, Front Suspension, Rh[08.1999 - 01.2000] SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
48609-52021 |
from US $70.47 |
||
|
48609
|
48609
48609-52021 Support Sub-Assy, Front Suspension, Rh[01.2000 - 08.2002] SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
48609-52021 |
from US $70.47 |
||
|
48609D
|
48609D
90303-22002 Seal, Dust(For Front Suspension Support)[08.2000 - 08.2002] NCP1#,SCP11 |
90303-22002 |
from US $3.20 |
||
|
48609D
|
48609D
90303-22049 Seal, Dust(For Front Suspension Support)[08.1999 - 08.2000] NCP1#,SCP11 |
90303-22049 |
from US $3.71 |
||
|
48609E
|
48609E
90179-12145 Nut[08.1999 - 08.2002] NCP1#,SCP11 |
90179-12145 |
from US $0.96 |
||
|
48684A
|
48684A
48684-10010 Cover, Bearing Dust[08.1999 - 08.2002] NCP1#,SCP11 TYPE A:ｲﾗｽﾄ ｻﾝｼﾖｳ |
48684-10010 |
from US $1.27 |
||
|
48684A
|
48684A
48684-12070 Cover, Front Suspension Support Dust[08.1999 - 10.1999] SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
48684-12070 |
US $14.40 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[03.2000 - 08.2002] SCP11;NCP12..X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
48684-52010 |
from US $9.60 |
||
|
48684B
|
48684B
48684-10010 Cover, Bearing Dust[08.1999 - 08.2002] NCP1#,SCP11 TYPE A:ｲﾗｽﾄ ｻﾝｼﾖｳ |
48684-10010 |
from US $1.27 |
||
|
48684B
|
48684B
48684-12070 Cover, Front Suspension Support Dust[08.1999 - 10.1999] SCP11 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
48684-12070 |
US $14.40 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[03.2000 - 08.2002] SCP11;NCP12..X TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
48684-52010 |
from US $9.60 |
||
|
9011908C52
|
9011908C52
90119-08C52 New Genuine Part |
90119-08C52 |
US $2.08 |
||
|
9017808006
|
9017808006
90178-08006 NUT FLANGE |
90178-08006 |
US $1.60 |
||
|
9017808010
|
9017808010
90178-08010 Nut(For Front Suspension Support) |
90178-08010 |
US $2.24 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
