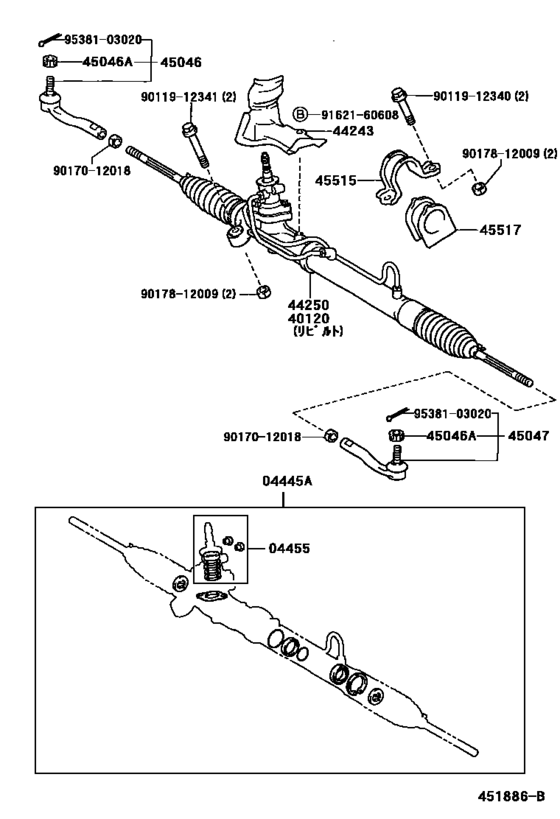

Front Steering Gear & Link ([08.1999 - 08.2002] ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) (9908-0208)NCP12,SCP11) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-52020 Gasket Kit, Power Steering Gear(For Rack & Pinion)[08.1999 - 08.2002] NCP12,SCP11 |
04445-52020 |
US $75.24 |
||
|
04445A
|
04445A
04445-52050
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[11.2003 -] NCP12,SCP11 |
04445-52050 |
— | ||
| replacement | |||||
|
04445A
|
04445A
04445-52020 Gasket Kit, Power Steering Gear(For Rack & Pinion)[11.2003 -] NCP12,SCP11 |
04445-52020 |
US $75.24 |
||
|
04455
|
04455
04455-52010 Gasket Kit, Power Steering Control Valve Overhole[08.1999 - 08.2002] NCP12,SCP11 |
04455-52010 |
US $28.83 |
||
|
40120
|
40120
40120-52041 Gear Assy,power Steering,rebuilt[08.1999 - 08.2002] SCP11 |
40120-52041 |
US $960.96 |
||
|
40120
|
40120
40120-52100 Gear Assy,power Steering,rebuilt[08.1999 - 08.2002] NCP12; SCP11 ｱﾘ(175/65R14) |
40120-52100 |
US $666.85 |
||
|
44250
|
44250
44250-52041 Gear Assy, Power Steering(For Rack & Pinion)[08.1999 - 08.2002] SCP11 |
44250-52041 |
US $1,368.64 |
||
| replacement | |||||
|
44250
|
44250
44200-52041
Link Assy, Power Steering
[08.1999 - 08.2002] SCP11 |
44200-52041 |
— | ||
|
44250
|
44250
44250-52100
Gear Assy, Power Steering(For Rack & Pinion)
[08.1999 - 08.2002] NCP12; SCP11 W(175/65R14) |
44250-52100 |
— | ||
| replacement | |||||
|
44250
|
44250
44200-52130 Link Assy, Power Steering[08.1999 - 08.2002] NCP12; SCP11 W(175/65R14) |
44200-52130 |
US $1,030.85 |
||
|
45046
|
45046
45046-59025
End Sub-Assy, Tie Rod, Rh
[08.1999 - 11.1999] NCP12,SCP11 |
45046-59025 |
— | ||
| replacement | |||||
|
45046
|
45046
45046-59026 End Sub-Assy, Tie Rod, Rh[08.1999 - 11.1999] NCP12,SCP11 |
45046-59026 |
from US $47 |
||
|
45046
|
45046
45046-59026 End Sub-Assy, Tie Rod, Rh[11.1999 - 08.2002] NCP12,SCP11 |
45046-59026 |
from US $47 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.1999 - 08.2002] NCP1#,SCP11 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45047-59025
End Sub-Assy, Tie Rod, Rh
[08.1999 - 11.1999] NCP12,SCP11 |
45047-59025 |
— | ||
| replacement | |||||
|
45047
|
45047
45047-59026 End Sub-Assy, Tie Rod, Rh[08.1999 - 11.1999] NCP12,SCP11 |
45047-59026 |
from US $50.04 |
||
|
45047
|
45047
45047-59026 End Sub-Assy, Tie Rod, Rh[11.1999 - 08.2002] NCP12,SCP11 |
45047-59026 |
from US $50.04 |
||
|
45515
|
45515
45515-52010 Bracket, Steering Rack Housing, No.2[08.1999 - 08.2002] NCP12,SCP11 |
45515-52010 |
US $9.09 |
||
|
45517
|
45517
45517-52010 Grommet, Steering Rack Housing, No.2[08.1999 - 08.2002] NCP12,SCP11 ｱﾘ(ﾏﾆﾕｱﾙｽﾃｱﾘﾝｸﾞ) |
45517-52010 |
from US $20.52 |
||
|
45517
|
45517
45517-52020 Grommet, Steering Rack Housing, No.2[08.1999 - 08.2002] SCP11 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
45517-52020 |
US $18.20 |
||
|
9011912340
|
9011912340
90119-12340 BOLT WWASHER |
90119-12340 |
US $5.07 |
||
|
9011912341
|
9011912341
90119-12341 New Genuine Part |
90119-12341 |
US $5.07 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $1.28 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
US $1.92 |
||
|
9162160608
|
9162160608
91621-60608 New Genuine Part |
91621-60608 |
US $4.22 |
||
| replacement | |||||
|
9162160608
|
9162160608
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.78 |
||
