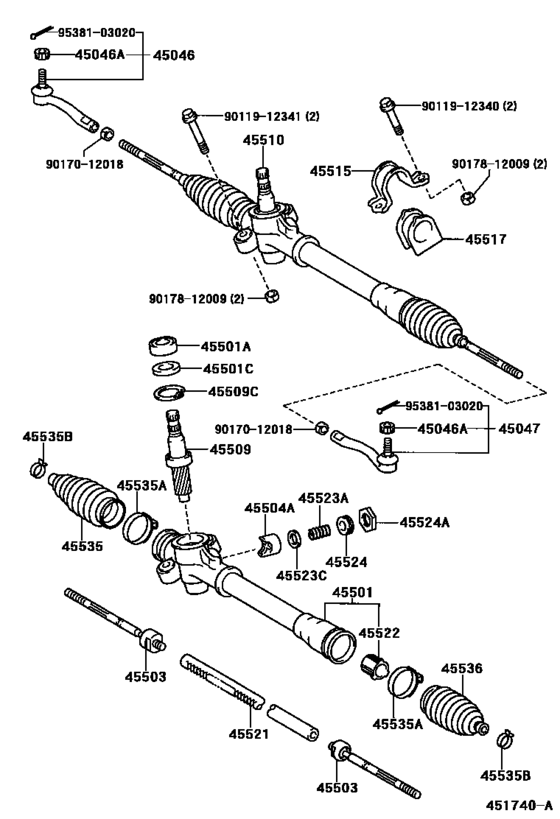

Front Steering Gear & Link ([08.1999 - 08.2002] ｱﾘ(ﾏﾆﾕｱﾙｽﾃｱﾘﾝｸﾞ) (9908-0208)SCP11) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-59025
End Sub-Assy, Tie Rod, Rh
[08.1999 - 11.1999] NCP12,SCP11 |
45046-59025 |
— | ||
| replacement | |||||
|
45046
|
45046
45046-59026 End Sub-Assy, Tie Rod, Rh[08.1999 - 11.1999] NCP12,SCP11 |
45046-59026 |
from US $49.22 |
||
|
45046
|
45046
45046-59026 End Sub-Assy, Tie Rod, Rh[11.1999 - 08.2002] NCP12,SCP11 |
45046-59026 |
from US $49.22 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.1999 - 08.2002] NCP1#,SCP11 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45047-59025
End Sub-Assy, Tie Rod, Rh
[08.1999 - 11.1999] NCP12,SCP11 |
45047-59025 |
— | ||
| replacement | |||||
|
45047
|
45047
45047-59026 End Sub-Assy, Tie Rod, Rh[08.1999 - 11.1999] NCP12,SCP11 |
45047-59026 |
from US $50.04 |
||
|
45047
|
45047
45047-59026 End Sub-Assy, Tie Rod, Rh[11.1999 - 08.2002] NCP12,SCP11 |
45047-59026 |
from US $50.04 |
||
|
45501
|
45501
45501-52011 Housing Sub-Assy, Steering Rack[08.1999 - 08.2002] SCP11 |
45501-52011 |
US $180.54 |
||
|
45501A
|
45501A
90311-17009 Seal, Type T Oil(For Steering Rack Housing)[08.1999 - 08.2002] SCP11 |
90311-17009 |
from US $3.49 |
||
|
45501C
|
45501C
90561-20003 Spacer(For Steering Rack Housing)[08.1999 - 08.2002] SCP11 |
90561-20003 |
US $1.60 |
||
|
45503
|
45503
45503-59045 End Sub-Assy, Steering Rack[08.1999 - 08.2002] NCP12; SCP11; NCP16 ｱﾘ(14X5.5J ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
45503-59045 |
from US $74.53 |
||
|
45504A
|
45504A
45504-52010 Guide Sub-Assy, Rack[08.1999 - 08.2002] SCP11 ｱﾘ(ﾏﾆﾕｱﾙｽﾃｱﾘﾝｸﾞ) |
45504-52010 |
from US $10.24 |
||
|
45504A
|
45504A
45504-52020 Guide Sub-Assy, Rack[08.1999 - 08.2002] NCP12,SCP11 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
45504-52020 |
US $7.57 |
||
|
45509
|
45509
45509-52010 Pinion Sub-Assy, Steering[08.1999 - 08.2002] SCP11 |
45509-52010 |
US $99.01 |
||
|
45509C
|
45509C
90521-35002 Ring, Hole Snap(For Steering Pinion)[08.1999 - 08.2002] SCP11 |
90521-35002 |
US $2.04 |
||
|
45510
|
45510
45510-52011 Gear Assy, Steering[08.1999 - 08.2002] SCP11 |
45510-52011 |
US $642.10 |
||
|
45515
|
45515
45515-52010 Bracket, Steering Rack Housing, No.2[08.1999 - 08.2002] NCP12,SCP11 |
45515-52010 |
US $9.09 |
||
|
45517
|
45517
45517-52010 Grommet, Steering Rack Housing, No.2[08.1999 - 08.2002] NCP12,SCP11 ｱﾘ(ﾏﾆﾕｱﾙｽﾃｱﾘﾝｸﾞ) |
45517-52010 |
from US $20.52 |
||
|
45517
|
45517
45517-52020 Grommet, Steering Rack Housing, No.2[08.1999 - 08.2002] SCP11 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
45517-52020 |
US $18.20 |
||
|
45521
|
45521
45521-52010 Rack, Steering[08.1999 - 08.2002] SCP11 |
45521-52010 |
US $80.08 |
||
|
45522
|
45522
45522-52010 Bush, Steering Rack[08.1999 - 08.2002] SCP11 |
45522-52010 |
from US $8.89 |
||
|
45523A
|
45523A
90501-29050 Spring(For Steering Gear Rack Guide)[08.1999 - 08.2002] SCP11 |
90501-29050 |
US $3.06 |
||
|
45523C
|
45523C
45542-52010 Spacer(For Rack Guide)[08.1999 - 08.2002] SCP11 |
45542-52010 |
US $1.60 |
||
|
45524
|
45524
45524-52010 Cap, Steering Rack Guide Spring[08.1999 - 08.2002] SCP11 ｱﾘ(ﾏﾆﾕｱﾙｽﾃｱﾘﾝｸﾞ) |
45524-52010 |
US $9.03 |
||
|
45524
|
45524
45524-52020 Cap, Steering Rack Guide Spring[08.1999 - 08.2002] NCP12,SCP11 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
45524-52020 |
US $7.13 |
||
|
45524A
|
45524A
90177-30002 Nut(For Steering Rack Guide Spring Cap)[08.1999 - 08.2002] SCP11 |
90177-30002 |
US $2.18 |
||
|
45535
|
45535
45535-52030 Boot, Steering Rack, No.1[08.1999 - 08.2002] SCP11 ｱﾘ(ﾏﾆﾕｱﾙｽﾃｱﾘﾝｸﾞ) |
45535-52030 |
from US $17.33 |
||
|
45535
|
45535
45535-52040 Boot, Steering Rack, No.1[08.1999 - 08.2002] NCP12,SCP11 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
45535-52040 |
US $19.46 |
||
|
45535A
|
45535A
90904-67039 Clamp(For Steering Rack Boot)[08.1999 - 08.2002] SCP11 |
90904-67039 |
US $4.22 |
||
|
45535B
|
45535B
90466-17001
Clip(For Steering Rack Boot)
[08.1999 - 08.2002] SCP11 ｱﾘ(ﾏﾆﾕｱﾙｽﾃｱﾘﾝｸﾞ) |
90466-17001 |
— | ||
|
45535B
|
45535B
90466-17002 Clip(For Steering Rack Boot)[08.1999 - 08.2002] NCP12,SCP11 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
90466-17002 |
US $1.92 |
||
|
45536
|
45536
45535-52030 Boot, Steering Rack, No.1[08.1999 - 08.2002] SCP11 ｱﾘ(ﾏﾆﾕｱﾙｽﾃｱﾘﾝｸﾞ) |
45535-52030 |
from US $17.33 |
||
|
45536
|
45536
45535-52040 Boot, Steering Rack, No.1[08.1999 - 08.2002] NCP12,SCP11 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
45535-52040 |
US $19.46 |
||
|
9011912340
|
9011912340
90119-12340 BOLT WWASHER |
90119-12340 |
from US $3.84 |
||
|
9011912341
|
9011912341
90119-12341 New Genuine Part |
90119-12341 |
US $5.07 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $1.28 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
US $1.92 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
