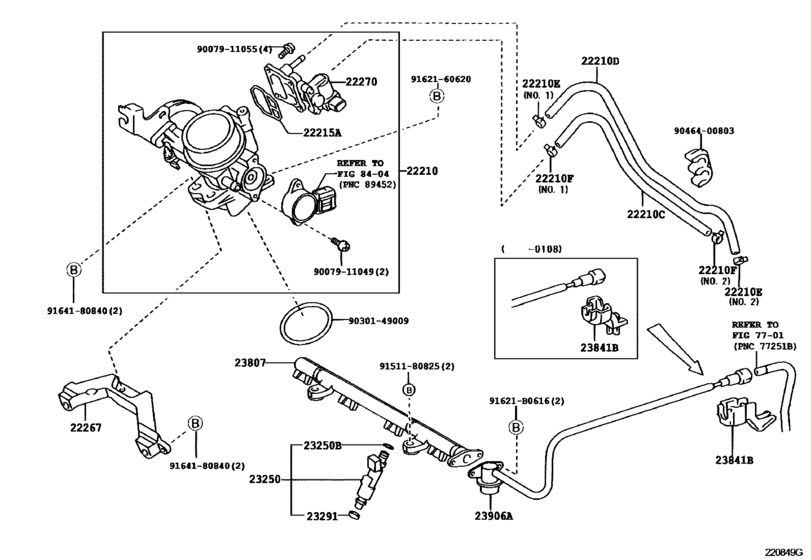

Fuel Injection System ([08.1999 - 12.2001] (9908-0112)1SZFE) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-23020 Body Assy, Throttle[08.1999 - 08.2002] 1SZFE..SCP11..MTM |
22210-23020 |
US $1,221.58 |
||
|
22210C
|
22210C
16261-23010
Hose, Water By-Pass, No.1
[08.1999 - 12.2001] 1SZFE..SCP11 |
16261-23010 |
— | ||
| replacement | |||||
|
22210C
|
22210C
16261-23030 Hose, Water By-Pass, No.1[08.1999 - 12.2001] 1SZFE..SCP11 |
16261-23030 |
US $9.44 |
||
|
22210C
|
22210C
16261-23030 Hose, Water By-Pass, No.1[12.2001 - 08.2002] 1SZFE..SCP11 |
16261-23030 |
US $9.44 |
||
|
22210D
|
22210D
16264-23010
Hose, Water By-Pass, No.2
[08.1999 - 12.2001] 1SZFE..SCP11 |
16264-23010 |
— | ||
| replacement | |||||
|
22210D
|
22210D
16264-23030 Hose, Water By-Pass, No.2[08.1999 - 12.2001] 1SZFE..SCP11 |
16264-23030 |
US $9.44 |
||
|
22210D
|
22210D
16264-23030 Hose, Water By-Pass, No.2[12.2001 - 08.2002] 1SZFE..SCP11 |
16264-23030 |
US $9.44 |
||
|
22210E
|
22210E
90466-10002 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)[08.1999 - 08.2002] 1SZFE..SCP11 ＮＯ．１ |
90466-10002 |
US $2.08 |
||
|
22210E
|
22210E
90466-12001 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)[08.1999 - 08.2002] 1SZFE..SCP11 ＮＯ．２ |
90466-12001 |
US $1.92 |
||
|
22210F
|
22210F
90466-10002 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)[08.1999 - 08.2002] 1SZFE..SCP11 ＮＯ．１ |
90466-10002 |
US $2.08 |
||
|
22210F
|
22210F
90466-12001 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)[08.1999 - 08.2002] 1SZFE..SCP11 ＮＯ．２ |
90466-12001 |
US $1.92 |
||
|
22215A
|
22215A
22215-74400 Gasket, Throttle Body Cover[08.1999 - 12.2001] 1SZFE..SCP11 |
22215-74400 |
US $7.04 |
||
|
22267
|
22267
22267-23010 Bracket, Throttle Body[08.1999 - 08.2002] 1SZFE..SCP11 |
22267-23010 |
US $58.09 |
||
|
22267
|
22267
22267-23040 Bracket, Throttle Body[02.2006 -] 1SZFE..SCP11 |
22267-23040 |
US $49.65 |
||
|
22270
|
22270
22270-23010 Valve Assy, Idle Speed Control(For Thlottle Body)[08.1999 - 08.2002] 1SZFE..SCP11..MTM |
22270-23010 |
US $601.33 |
||
|
23250
|
23250
23209-29015 Injector Assy, Fuel[08.1999 - 08.2002] 1SZFE..SCP11 |
23209-29015 |
US $281.40 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[08.1999 - 08.2002] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
90301-07024 |
US $3.04 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[08.1999 - 08.2002] 1SZFE..SCP11 |
23291-23010 |
from US $3 |
||
|
23807
|
23807
23807-23020 Pipe Sub-Assy, Fuel Delivery[08.1999 - 08.2002] 1SZFE..SCP11 |
23807-23020 |
US $77.17 |
||
| replacement | |||||
|
23807
|
23807
23807-23021 Pipe Sub-Assy, Fuel Delivery[08.1999 - 08.2002] 1SZFE..SCP11 |
23807-23021 |
US $77.17 |
||
|
23807
|
23807
23807-23021 Pipe Sub-Assy, Fuel Delivery[10.2003 -] 1SZFE..SCP11 |
23807-23021 |
US $77.17 |
||
|
23807
|
23807
23807-23030 Pipe Sub-Assy, Fuel Delivery[08.2002 - 10.2003] 1SZFE..SCP11 |
23807-23030 |
US $77.17 |
||
| replacement | |||||
|
23807
|
23807
23807-23021 Pipe Sub-Assy, Fuel Delivery[08.2002 - 10.2003] 1SZFE..SCP11 |
23807-23021 |
US $77.17 |
||
|
23841B
|
23841B
23841-23010 Clamp, Fuel Pipe, No.1(For Efi)[08.1999 - 08.2001] 1SZFE..SCP11 |
23841-23010 |
US $4.66 |
||
|
23841B
|
23841B
23841-28010
Clamp, Fuel Pipe, No.1(For Efi)
[08.2001 - 08.2002] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
23841-28010 |
— | ||
| replacement | |||||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[08.2001 - 08.2002] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
23841-21050 |
US $3.52 |
||
|
23906A
|
23906A
23901-23010 Hose Sub-Assy, Fuel[08.2001 - 08.2002] 1SZFE..SCP11 |
23901-23010 |
US $131.04 |
||
|
23906A
|
23906A
23906-23020 Hose Sub-Assy, Fuel[08.1999 - 08.2001] 1SZFE..SCP11 |
23906-23020 |
US $110.66 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.84 |
||
|
9007911049
|
9007911049
90079-11049 SCREW WWASHER |
90079-11049 |
US $1.31 |
||
|
9007911055
|
9007911055
90079-11055 New Genuine Part |
90079-11055 |
US $1.60 |
||
|
9030149009
|
9030149009
90301-49009 RING O |
90301-49009 |
US $4.48 |
||
|
9046400803
|
9046400803
90464-00803 New Genuine Part |
90464-00803 |
US $0.87 |
||
|
9151180825
|
9151180825
91511-80825 BOLTFLANGE |
91511-80825 |
US $1.60 |
||
|
9162160620
|
9162160620
91621-60620 Bolt, W/washer(For Repair Actuator Set) |
91621-60620 |
US $0.44 |
||
|
9164180840
|
9164180840
91641-80840 BOLTWWASHER |
91641-80840 |
from US $0.96 |
||
