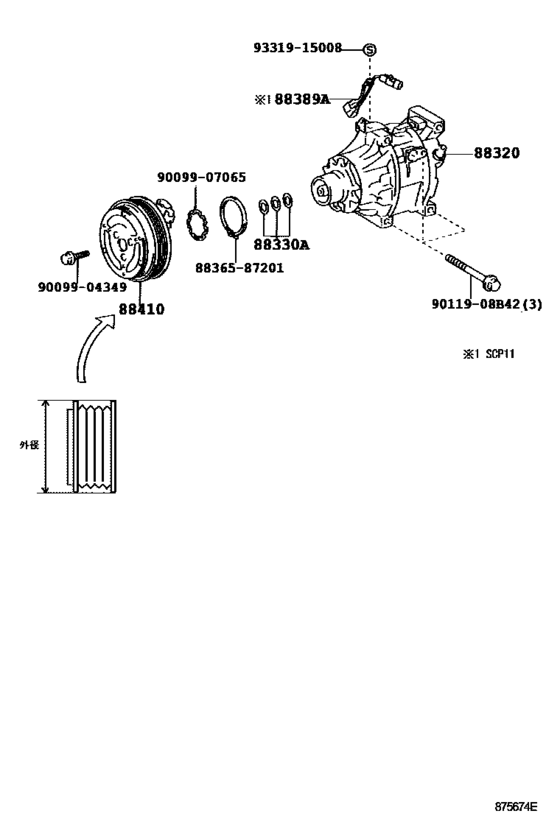

Heating & Air Conditioning - Compressor ([08.2002 - ] (0208- )) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-52010
Compressor Assy, Cooler
[08.1999 - 08.2002] SCP11 |
88320-52010 |
— | ||
|
88320
|
88320
88320-52130
Compressor Assy, Cooler
[08.2002 - 08.2003] SCP11 |
88320-52130 |
— | ||
|
88320
|
88320
88320-52430
Compressor Assy, Cooler
[08.2003 - 12.2005] SCP11 |
88320-52430 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[08.1999 - 08.2002] NCP1#,SCP11 |
88335-14020 |
from US $1.25 |
||
|
88389A
|
88389A
88389-52010
Wire, Compressor
[08.1999 - 08.2002] SCP11 |
88389-52010 |
— | ||
|
88389A
|
88389A
88605-52250
Wire, Compressor
[08.2002 - 12.2005] SCP11 |
88605-52250 |
— | ||
|
88410
|
88410
88410-52010 Clutch Assy, Magnet[08.1999 - 11.2000] SCP11 |
88410-52010 |
US $551.82 |
||
| replacement | |||||
|
88410
|
88410
88410-52070 Clutch Assy, Magnet[08.1999 - 11.2000] SCP11 |
88410-52070 |
US $556.19 |
||
|
88410
|
88410
88410-52070 Clutch Assy, Magnet[11.2000 - 08.2002] SCP11 |
88410-52070 |
US $556.19 |
||
|
88410
|
88410
88410-52150 Clutch Assy, Magnet[08.2002 - 08.2003] SCP11 |
88410-52150 |
US $349.44 |
||
|
88410
|
88410
88410-52260 Clutch Assy, Magnet[08.2003 - 11.2005] SCP11 |
88410-52260 |
US $556.19 |
||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
8836587201
|
8836587201
88365-87201 Ring, Snap |
88365-87201 |
from US $1.75 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
