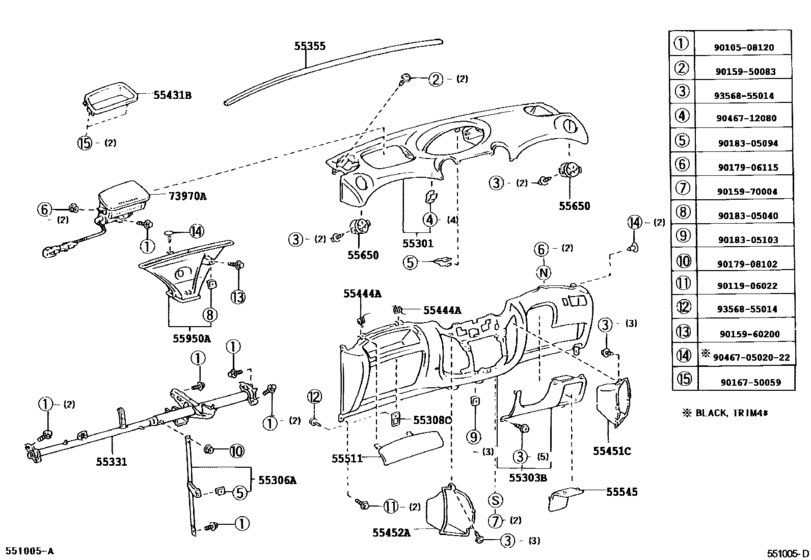

Instrument Panel & Glove Compartment ([08.2002 - 12.2005] (0208-0512)) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55301-52020-B1 Panel Sub-Assy, Instrument[08.1999 - 08.2002] NCP1#,SCP11 AMETHYST,TRIM9# |
55301-52020-B1 |
US $390.21 |
||
|
55301
|
55301
55301-52140-E0 Panel Sub-Assy, Instrument[08.2002 - 12.2005] NCP1#,SCP11 SANDAL WOOD,TRIM4# |
55301-52140-E0 |
US $390.21 |
||
|
55303B
|
55303B
55303-52901-B1 Panel Sub-Assy, Instrument, Lower[08.1999 - 08.2002] NCP1#,SCP11 AMETHYST,TRIM9# |
55303-52901-B1 |
US $430.98 |
||
|
55303B
|
55303B
55303-52901-E0 Panel Sub-Assy, Instrument, Lower[08.2002 - 11.2005] NCP1#,SCP11 M. NEUTRAL BONE,TRIM4# |
55303-52901-E0 |
US $432.43 |
||
|
55306A
|
55306A
55306-52021 Brace Sub-Assy, Instrument Panel, No.1[08.1999 - 08.2002] NCP1#,SCP11 |
55306-52021 |
US $29.12 |
||
|
55308C
|
55308C
55308-52010 Bracket Sub-Assy, Instrument Panel, Center[08.1999 - 04.2002] NCP1#,SCP11 |
55308-52010 |
US $4.95 |
||
| replacement | |||||
|
55308C
|
55308C
55308-52080 Bracket Sub-Assy, Instrument Panel, Center[08.1999 - 04.2002] NCP1#,SCP11 |
55308-52080 |
from US $3.20 |
||
|
55308C
|
55308C
55308-52080 Bracket Sub-Assy, Instrument Panel, Center[04.2002 - 08.2002] NCP1#,SCP11 |
55308-52080 |
from US $3.20 |
||
|
55331
|
55331
55330-52041 Reinforcement, Instrument Panel[08.1999 - 08.2002] NCP1#,SCP11 |
55330-52041 |
US $196.56 |
||
|
55331
|
55331
55330-52350 Reinforcement, Instrument Panel[08.2002 - 08.2003] NCP1#,SCP11 |
55330-52350 |
US $196.56 |
||
|
55355
|
55355
55355-52011 Cushion, Instrument Panel, No.1[08.1999 - 09.1999] NCP1#,SCP11 |
55355-52011 |
US $12.23 |
||
| replacement | |||||
|
55355
|
55355
55355-52012 Cushion, Instrument Panel, No.1[08.1999 - 09.1999] NCP1#,SCP11 |
55355-52012 |
US $12.08 |
||
|
55355
|
55355
55355-52012 Cushion, Instrument Panel, No.1[09.1999 - 08.2002] NCP1#,SCP11 |
55355-52012 |
US $12.08 |
||
|
55355
|
55355
55355-52150
Cushion, Instrument Panel, No.1
[01.2005 -] NCP1#,SCP11 |
55355-52150 |
— | ||
|
55431B
|
55431B
55431-52060-E0 Panel, Instrument Panel Finish, Upper[08.2002 - 12.2005] SCP11 SANDAL WOOD,TRIM4# |
55431-52060-E0 |
US $58.24 |
||
|
55444A
|
55444A
55444-52040 Spring, Instrument Panel Box[08.1999 - 08.2002] NCP1#,SCP11 |
55444-52040 |
US $2.04 |
||
|
55451C
|
55451C
55451-52020-B1 Box, Instrument Panel, No.1[08.1999 - 08.2002] NCP1#,SCP11 AMETHYST,TRIM9# |
55451-52020-B1 |
US $62.17 |
||
| replacement | |||||
|
55451C
|
55451C
55451-52050-B1 Box, Instrument Panel, No.1[08.1999 - 08.2002] NCP1#,SCP11 AMETHYST,TRIM9# |
55451-52050-B1 |
US $62.32 |
||
|
55451C
|
55451C
55451-52050-E0 Box, Instrument Panel, No.1[08.2002 - 12.2005] NCP1#,SCP11 SANDAL WOOD,TRIM4# |
55451-52050-E0 |
US $62.32 |
||
| replacement | |||||
|
55451C
|
55451C
55451-52050-B1 Box, Instrument Panel, No.1[08.2002 - 12.2005] NCP1#,SCP11 SANDAL WOOD,TRIM4# |
55451-52050-B1 |
US $62.32 |
||
|
55452A
|
55452A
55452-52020-B1 Box, Instrument Panel, No.2[08.1999 - 08.2002] NCP1#,SCP11 AMETHYST,TRIM9# |
55452-52020-B1 |
US $62.17 |
||
| replacement | |||||
|
55452A
|
55452A
55452-52060-B1 Box, Instrument Panel, No.2[08.1999 - 08.2002] NCP1#,SCP11 AMETHYST,TRIM9# |
55452-52060-B1 |
US $62.32 |
||
|
55452A
|
55452A
55452-52060-E0 Box, Instrument Panel, No.2[08.2002 - 12.2005] NCP1#,SCP11 SANDAL WOOD,TRIM4# |
55452-52060-E0 |
US $62.32 |
||
| replacement | |||||
|
55452A
|
55452A
55452-52060-B1 Box, Instrument Panel, No.2[08.2002 - 12.2005] NCP1#,SCP11 SANDAL WOOD,TRIM4# |
55452-52060-B1 |
US $62.32 |
||
|
55511
|
55511
55501-52020-B1 Door, Glove Compartment[08.1999 - 08.2002] NCP1#,SCP11 LT.AMETHYST,TRIM9# |
55501-52020-B1 |
US $75.71 |
||
|
55511
|
55511
55501-52050-E0 Door, Glove Compartment[08.2002 - 12.2005] NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
55501-52050-E0 |
US $75.71 |
||
|
55545
|
55545
55545-52010-B1 Cover, Fuse Box Opening[08.1999 - 08.2002] NCP1#,SCP11 LT.AMETHYST,TRIM9# |
55545-52010-B1 |
US $21.69 |
||
| replacement | |||||
|
55545
|
55545
55545-52010-B2 Cover, Fuse Box Opening[08.1999 - 08.2002] NCP1#,SCP11 LT.AMETHYST,TRIM9# |
55545-52010-B2 |
US $21.84 |
||
|
55545
|
55545
55545-52010-E0 Cover, Fuse Box Opening[08.2002 - 12.2005] NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
55545-52010-E0 |
US $21.69 |
||
| replacement | |||||
|
55545
|
55545
55545-52010-B2 Cover, Fuse Box Opening[08.2002 - 12.2005] NCP1#,SCP11 MD.NEUTRAL BONE,TRIM4# |
55545-52010-B2 |
US $21.84 |
||
|
55650
|
55650
55650-52010-B1 Register Assy, Instrument Panel, No.1[08.1999 - 08.2002] NCP1#,SCP11 AMETHYST,TRIM9# |
55650-52010-B1 |
US $43.53 |
||
| replacement | |||||
|
55650
|
55650
55650-52010-C0 Register Assy, Instrument Panel, No.1[08.1999 - 08.2002] NCP1#,SCP11 AMETHYST,TRIM9# |
55650-52010-C0 |
US $43.53 |
||
|
55650
|
55650
55650-52080-E0 Register Sub-Assy, Instrument Panel, No.1[08.2002 - 12.2005] NCP1#,SCP11 SANDAL WOOD,TRIM4# |
55650-52080-E0 |
US $43.68 |
||
| replacement | |||||
|
55650
|
55650
55650-52080-B0 Register Sub-Assy, Instrument Panel, No.1[08.2002 - 12.2005] NCP1#,SCP11 SANDAL WOOD,TRIM4# |
55650-52080-B0 |
US $43.68 |
||
|
55950A
|
55950A
55950-52020 Nozzle Assy, Defroster[08.1999 - 08.2002] NCP1#,SCP11 |
55950-52020 |
US $62.32 |
||
|
73970A
|
73970A
73970-52020-B1 Air Bag Assy, Instrument Panel Passenger[08.1999 - 12.2001] NCP1#,SCP11 AMETHYST,TRIM9# |
73970-52020-B1 |
US $1,776.32 |
||
| replacement | |||||
|
73970A
|
73970A
73970-52080-B0 Air Bag Assy, Instrument Panel Passenger[08.1999 - 12.2001] NCP1#,SCP11 AMETHYST,TRIM9# |
73970-52080-B0 |
US $1,776.32 |
||
|
73970A
|
73970A
73970-52080-B1 Air Bag Assy, Instrument Panel Passenger[12.2001 - 08.2002] NCP1#,SCP11 AMETHYST,TRIM9# |
73970-52080-B1 |
US $1,776.32 |
||
| replacement | |||||
|
73970A
|
73970A
73970-52080-B0 Air Bag Assy, Instrument Panel Passenger[12.2001 - 08.2002] NCP1#,SCP11 AMETHYST,TRIM9# |
73970-52080-B0 |
US $1,776.32 |
||
|
73970A
|
73970A
73970-52130-E0 Air Bag Assy, Instrument Panel Passenger[08.2002 - 12.2005] NCP1#,SCP11 SANDAL WOOD,TRIM4# |
73970-52130-E0 |
US $1,776.32 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.44 |
||
|
9011906022
|
9011906022
90119-06022 BOLT |
90119-06022 |
US $2.08 |
||
| replacement | |||||
|
9011906022
|
9011906022
90080-11127 New Genuine Part |
90080-11127 |
US $2.73 |
||
|
9015950083
|
9015950083
90159-50083 SCREW |
90159-50083 |
from US $0.76 |
||
|
9015960200
|
9015960200
90159-60200 SCREW |
90159-60200 |
US $1.60 |
||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9016750059
|
9016750059
90167-50059 New Genuine Part |
90167-50059 |
US $0.73 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $1.92 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.56 |
||
|
9018305040
|
9018305040
90183-05040 NUT SPRING |
90183-05040 |
from US $0.84 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
904670502022
|
904670502022
90467-05020-22 Clip, Instrument Panel (Black) |
90467-05020-22 |
US $0.96 |
||
