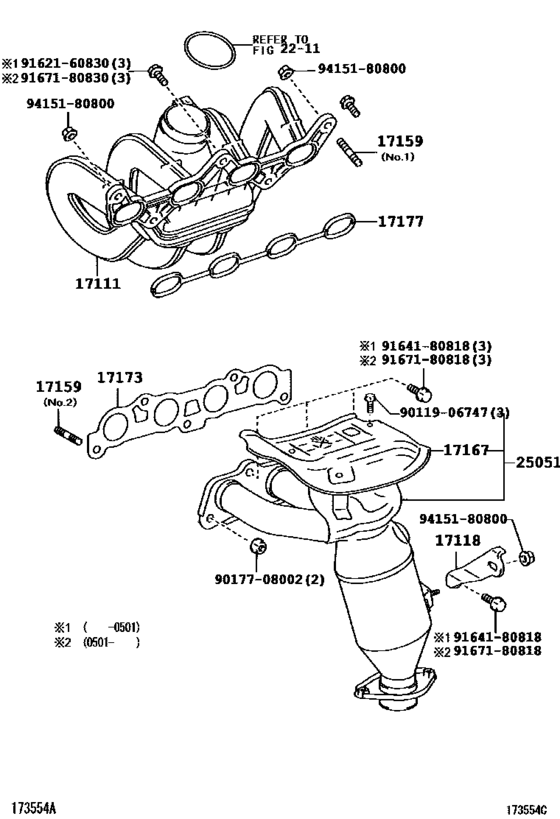

Manifold ([12.2002 - ] (0212- )1SZFE) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-23020 Manifold, Intake[08.1999 - 08.2002] 1SZFE..SCP11 |
17101-23020 |
from US $238.78 |
||
|
17118
|
17118
17118-23010 Stay, Manifold[08.1999 - 12.2001] 1SZFE..SCP11 |
17118-23010 |
US $14.71 |
||
|
17118
|
17118
17118-23040 Stay, Manifold[12.2001 - 08.2002] 1SZFE..SCP11 |
17118-23040 |
US $12.67 |
||
|
17118
|
17118
17118-23050 Stay, Manifold[12.2002 -] 1SZFE..SCP11 |
17118-23050 |
US $13.10 |
||
|
17159
|
17159
90116-08395 Bolt, Stud(For Manifold To Cylinder Head)[08.1999 - 08.2002] 1SZFE..SCP11 ＮＯ．２ |
90116-08395 |
US $0.96 |
||
|
17159
|
17159
92122-60825 Bolt, Stud(For Manifold To Carburetor)[08.1999 - 08.2002] 1SZFE..SCP11 ＮＯ．１ |
92122-60825 |
US $1.31 |
||
|
17167
|
17167
17167-23030 Insulator, Exhaust Manifold Heat, No.1[12.2002 -] 1SZFE..SCP11 |
17167-23030 |
US $23.44 |
||
|
17173
|
17173
17173-23010 Gasket, Exhaust Manifold To Head[08.1999 - 08.2002] 1SZFE..SCP11 |
17173-23010 |
from US $15.29 |
||
|
17177
|
17177
17177-23020 Gasket, Intake Manifold To Head, No.1[08.1999 - 08.2002] 1SZFE..SCP11 |
17177-23020 |
from US $5.15 |
||
|
25051
|
25051
25051-23011
Converter Sub-Assy, Exhaust Manifold
[12.2001 - 08.2002] 1SZFE..SCP11 |
25051-23011 |
— | ||
|
25051
|
25051
25051-23031 Converter Sub-Assy, Exhaust Manifold[12.2002 -] 1SZFE..SCP11 |
25051-23031 |
US $767.31 |
||
|
9011906747
|
9011906747
90119-06747 BOLT WWASHER |
90119-06747 |
US $5.12 |
||
|
9017708002
|
9017708002
90177-08002 New Genuine Part |
90177-08002 |
US $1.46 |
||
|
9162160830
|
9162160830
91621-60830 New Genuine Part |
91621-60830 |
US $3.06 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.82 |
||
|
9167180818
|
9167180818
91671-80818 BOLT FLANGE |
91671-80818 |
from US $0.88 |
||
|
9167180830
|
9167180830
91671-80830 BOLT FLANGE |
91671-80830 |
US $1.28 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
