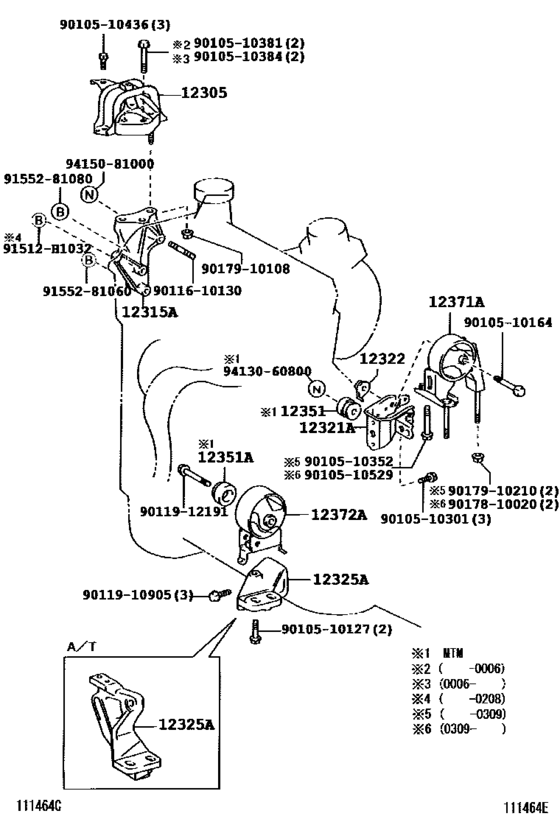

Mounting ([08.1999 - ] (9908- )1SZFE) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-23010 Insulator Sub-Assy, Engine Mounting, Rh[08.1999 - 06.2000] 1SZFE..SCP11 |
12305-23010 |
US $147.06 |
||
| replacements | |||||
|
12305
|
12305
12305-23011 Insulator Sub-Assy, Engine Mounting, Rh[08.1999 - 06.2000] 1SZFE..SCP11 |
12305-23011 |
US $143.27 |
||
|
12305
|
12305
90105-10384 BOLT WASHER BASED[08.1999 - 06.2000] 1SZFE..SCP11 |
90105-10384 |
US $3.52 |
||
|
12305
|
12305
12305-23011 Insulator Sub-Assy, Engine Mounting, Rh[06.2000 - 08.2002] 1SZFE..SCP11 |
12305-23011 |
US $143.27 |
||
|
12315A
|
12315A
12315-23021
Bracket, Engine Mounting, Rh(For Transverse Engine)
[08.1999 - 08.2002] 1SZFE..SCP11 |
12315-23021 |
— | ||
|
12321A
|
12321A
12321-23021 Bracket, Engine Mounting, Rear(For Transverse Engine)[08.1999 - 08.2002] 1SZFE..SCP11..MTM |
12321-23021 |
US $20.68 |
||
|
12322
|
12322
12322-23020 Bracket, Engine Mounting, Rear No.2[08.1999 - 08.2002] 1NZFE..NCP12; 1SZFE..SCP11 |
12322-23020 |
US $7.28 |
||
|
12325A
|
12325A
12325-23011 Bracket, Engine Mounting, Lh(For Transverse Engine)[08.1999 - 08.2002] 1SZFE..SCP11..MTM |
12325-23011 |
US $55.47 |
||
|
12351
|
12351
12351-23010 Damper, Engine Mounting[08.1999 - 08.2002] 1SZFE..SCP11..MTM; 1NZFE..NCP12..ATM |
12351-23010 |
US $27.51 |
||
|
12351A
|
12351A
12351-11030 Damper, Engine Mounting[08.1999 - 08.2002] 1SZFE..SCP11..MTM; 1NZFE..NCP12..MTM |
12351-11030 |
US $41.93 |
||
|
12371A
|
12371A
12371-23020 Insulator, Engine Mounting, Rear[08.1999 - 08.2002] 1SZFE..SCP11..MTM |
12371-23020 |
US $99.01 |
||
|
12372A
|
12372A
12372-23010 Insulator, Engine Mounting, Lh(For Transverse Engine)[08.1999 - 08.2002] 1SZFE..SCP11..MTM; 1NZFE,2NZFE..NCP1#..MTM |
12372-23010 |
from US $46.57 |
||
|
91512H1032
|
91512H1032
91512-H1032 New Genuine Part |
91512-H1032 |
US $2.18 |
||
|
9010510127
|
9010510127
90105-10127 New Genuine Part |
90105-10127 |
US $1.49 |
||
|
9010510164
|
9010510164
90105-10164 New Genuine Part |
90105-10164 |
US $3.32 |
||
|
9010510301
|
9010510301
90105-10301 BOLT WASHER BASED |
90105-10301 |
US $1.76 |
||
|
9010510352
|
9010510352
90105-10352 New Genuine Part |
90105-10352 |
US $4.96 |
||
|
9010510381
|
9010510381
90105-10381 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
90105-10381 |
US $1.60 |
||
|
9010510384
|
9010510384
90105-10384 BOLT WASHER BASED |
90105-10384 |
US $3.52 |
||
|
9010510436
|
9010510436
90105-10436 BOLT WASHER BASED |
90105-10436 |
US $1.76 |
||
|
9010510529
|
9010510529
90105-10529 New Genuine Part |
90105-10529 |
US $4.02 |
||
|
9011610130
|
9011610130
90116-10130 Bolt, Stud(For Water Outlet) |
90116-10130 |
US $5.68 |
||
|
9011910905
|
9011910905
90119-10905 New Genuine Part |
90119-10905 |
US $3.52 |
||
|
9011912191
|
9011912191
90119-12191 New Genuine Part |
90119-12191 |
US $6.64 |
||
|
9017810020
|
9017810020
90178-10020 New Genuine Part |
90178-10020 |
US $2.24 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017910210
|
9017910210
90179-10210 NUT |
90179-10210 |
from US $1.11 |
||
|
9155281060
|
9155281060
91552-81060 Bolt, No.3(For Alternator) |
91552-81060 |
from US $1.40 |
||
|
9155281080
|
9155281080
91552-81080 Bolt(For Alternator) |
91552-81080 |
from US $1.56 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.72 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9415081000
|
9415081000
94150-81000 NUT FLANGE |
94150-81000 |
US $1.60 |
||
