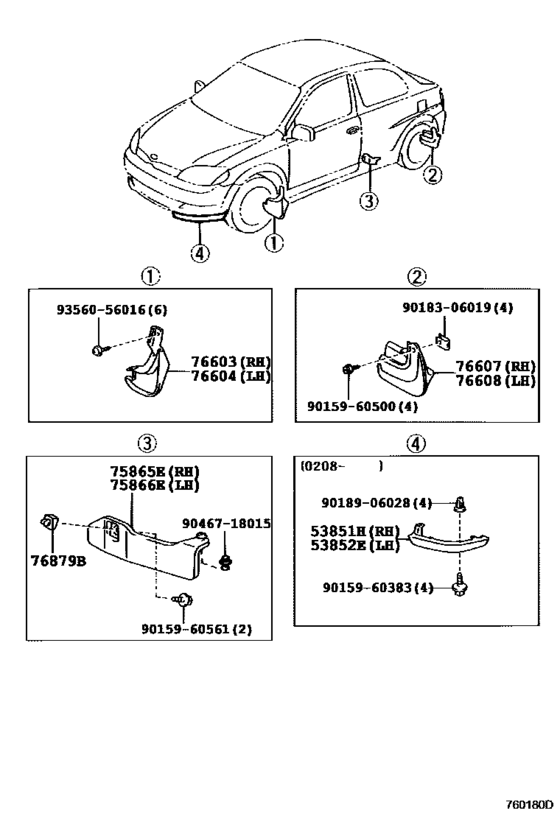

Mudguard & Spoiler ([08.1999 - ] (9908- )) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76603
|
76603
76621-52010 Mudguard Sub-Assy, Front Fender, Rh[08.1999 - 08.2002] NCP1#,SCP11 |
76621-52010 |
US $54 |
||
|
76604
|
76604
76622-52010 Mudguard Sub-Assy, Front Fender, Lh[08.1999 - 08.2002] NCP1#,SCP11 |
76622-52010 |
US $54 |
||
|
76607
|
76607
76625-52030 Mudguard Sub-Assy, Quarter Panel, Rear Rh[08.1999 - 08.2002] NCP1#,SCP11 |
76625-52030 |
US $50.67 |
||
|
76607
|
76607
76625-52060
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[08.2002 - 08.2003] NCP1#,SCP11 |
76625-52060 |
— | ||
|
76608
|
76608
76626-52030 Mudguard Sub-Assy, Quarter Panel, Rear Lh[08.1999 - 08.2002] NCP1#,SCP11 |
76626-52030 |
US $50.67 |
||
|
76608
|
76608
76626-52060 Mudguard Sub-Assy, Quarter Panel, Rear Lh[08.2002 - 08.2003] NCP1#,SCP11 |
76626-52060 |
US $54 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $0.76 |
||
|
9015960561
|
9015960561
90159-60561 SCREW WWASHER |
90159-60561 |
from US $0.74 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.82 |
||
|
9018906028
|
9018906028
90189-06028 CLIP |
90189-06028 |
from US $0.80 |
||
|
9046718015
|
9046718015
90467-18015 CLIP |
90467-18015 |
US $2.24 |
||
|
9356056016
|
9356056016
93560-56016 SCREW |
93560-56016 |
US $1.92 |
||
