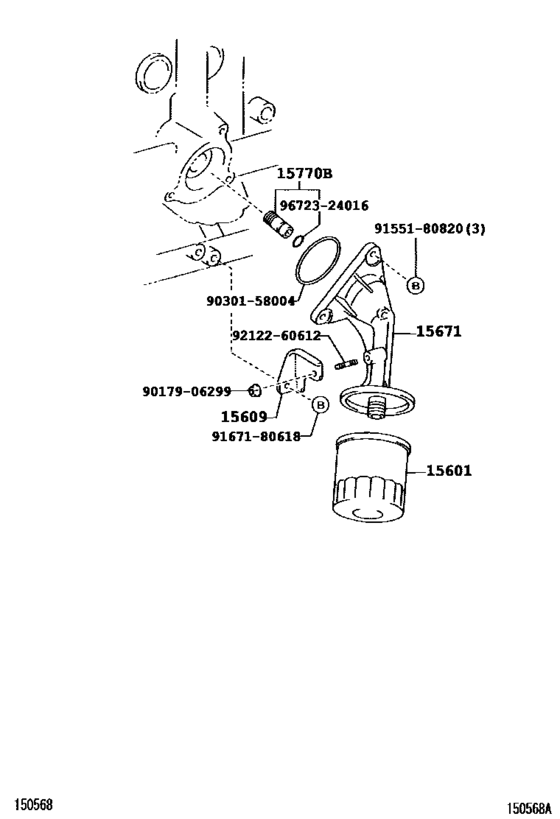

Oil Filter ([12.2001 - ] (0112- )1SZFE) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15601
|
15601
90915-10001
Filter Sub-Assy, Oil
[08.1999 - 11.1999] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
90915-10001 |
— | ||
| replacements | |||||
|
15601
|
15601
90915-10003
Oil Filter (Thailand-China)
[08.1999 - 11.1999] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
90915-10003 |
— | ||
|
15601
|
15601
90915-10009 Oil Filter Sub-Assy (DENSO, CHINA)[08.1999 - 11.1999] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
90915-10009 |
from US $8.96 |
||
|
15601
|
15601
90915-YZZN1 Oil Filter (Thailand)[08.1999 - 11.1999] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
90915-YZZN1 |
from US $8.96 |
||
|
15601
|
15601
90915-10003
Oil Filter (Thailand-China)
[11.1999 - 08.2002] 1NZFE,2NZFE..NCP1#; 1SZFE..SCP11 |
90915-10003 |
— | ||
|
15609
|
15609
15671-23020 Bracket Sub-Assy, Oil Filter[12.2001 - 08.2002] 1SZFE..SCP11 |
15671-23020 |
US $7.28 |
||
|
15671
|
15671
15677-23020 Bracket, Oil Filter[12.2001 - 08.2002] 1SZFE..SCP11 |
15677-23020 |
US $147.06 |
||
| replacement | |||||
|
15671
|
15671
15677-23021 Bracket, Oil Filter[12.2001 - 08.2002] 1SZFE..SCP11 |
15677-23021 |
US $156.96 |
||
|
15671
|
15671
15677-23021 Bracket, Oil Filter[12.2002 -] 1SZFE..SCP11 |
15677-23021 |
US $156.96 |
||
|
15770B
|
15770B
15770-23010 Pipe Assy, Oil[12.2001 - 08.2002] 1SZFE..SCP11 |
15770-23010 |
US $10.13 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9030158004
|
9030158004
90301-58004 Gasket, Oil Filter Bracket |
90301-58004 |
from US $4.78 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
|
9167180618
|
9167180618
91671-80618 BOLT FLANGE WWSHER |
91671-80618 |
US $0.96 |
||
|
9212260612
|
9212260612
92122-60612 Bolt, Stud(For Engine Rear Oil Seal Retainer) |
92122-60612 |
US $1.22 |
||
|
9672324016
|
9672324016
96723-24016 Ring, O |
96723-24016 |
US $2.24 |
||
